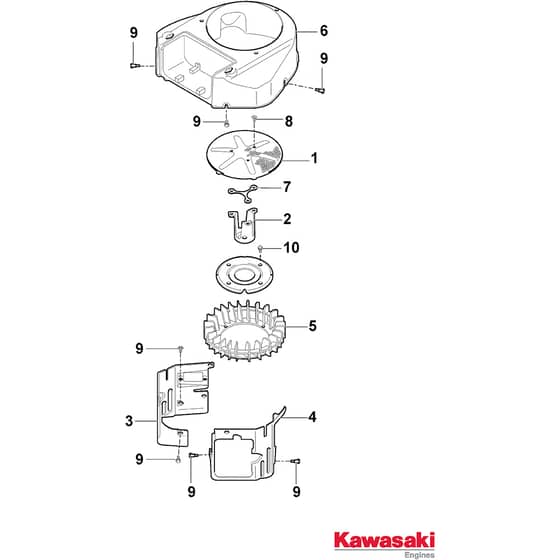

GTX 40H - 2021 - 2T0950647/AT1 - Atco Ride On Mower Cooling Equipment Diagram

Name: GTX 40H - 2021 - 2T0950647/AT1 - Atco Ride On Mower Cooling Equipment Diagram
SKU: gtx_40h_2t0950647_at1_cooling_equipment-group
Price: 1.16 GBP
Availability: InStock

Part No. gtx_40h_2t0950647_at1_cooling_equipment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 40H - 2021 - 2T0950647/AT1 - Atco Ride On Mower Cooling Equipment Diagram

Description

Atco GTX 40H Parts Diagram

Product Name - GTX 40H

Model Year - 2021

Model Type - TU 102 Hydro

Art.N - 2T0950647/AT1

Engine Model - FS600V

	Part No.	Details
1	KA14037-70089H In stock	Screen	£57.43 £47.86
2	KA23062-7022 Available to backorder	Bracket Kawasaki p.n 23062-7022	£17.26 £14.38
3	KA49089-7083 Available to backorder	Engine Cover Kawasaki p.n 49089-7083	£33.43 £27.86
4	KA49089-7084 Available to backorder	Engine Cover Kawasaki p.n 49089-7084	£38.18 £31.82
5	KA59041-0024 Available to backorder	Fan Kawasaki p.n 59041-0008	£27.86 £23.22
6	KA59066-0044 Available to backorder	Fan Cover Kawasaki p.n 59066-0044	£224.52 £187.10
7	KA92026-7007 Available to backorder	Spacer Kawasaki p.n 92026-7007	£9.52 £7.93
8	MO112727794/0 Available to backorder	Screw Kawasaki p.n 92151-7012	£1.39 £1.16
9	MO112735402/0 In stock	Screw Kawasaki p.n 92153-7007	£1.55 £1.29
10	MO112735699/0 Available to backorder	Screw M6 X 12	£1.39 £1.16
