GTX 38H Twin - 2025 - 2T0830447/AT1 - Atco Ride On Mower Body Diagram

Description

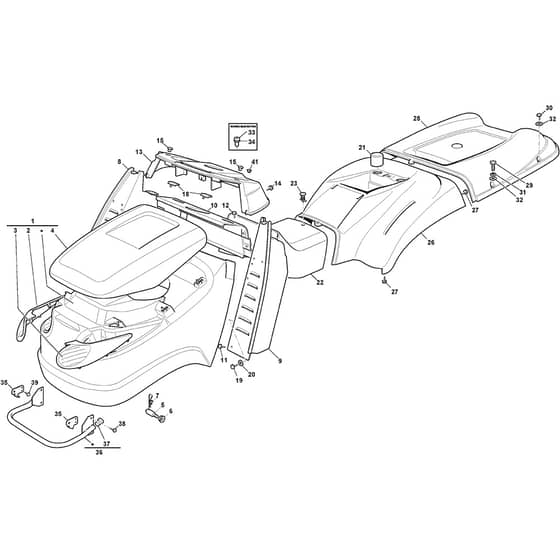

Atco GTX 38H Twin Parts Diagram

Product Name - GTX 38H Twin

Model Year - 2025

Model Type - TCU 98 Hydro

Art.N - 2T0830447/AT1

Engine Model - ST 600 Twin

	Part No.	Details
1	MO382076970/1 Available to backorder	Engine Hood. Green	£309.68 £258.07
2	MO325410891/0 Available to backorder	Right Grill	£8.86 £7.38
3	MO325410892/0 Available to backorder	Left Grill	£8.86 £7.38
4	MO325076940/0 Available to backorder	Upper Engine Hood Green Light Green	£76.02 £63.35
5	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
7	MO112293201/0 In stock	Nut	£1.70 £1.42
8	MO382785325/0 Available to backorder	Right Dashboard Support	£43.02 £35.85
9	MO382785323/0 Available to backorder	Left Dashboard Support	£43.02 £35.85
10	MO382785137/1 Available to backorder	Central Dashboard Support	£13.42 £11.18
12	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
13	MO325120275/1 Available to backorder	Black Dashboard	£46.48 £38.73
14	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
15	MO125120200/0 Available to backorder	Cap	£1.39 £1.16
18	MO125260000/0 Available to backorder	Grommet	£2.94 £2.45
19	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
21	MO325122000/2 Available to backorder	Cap	£1.63 £1.36
22	MO325110546/0 Available to backorder	Black Central Cover	£50.48 £42.07
23	MO125580020/2 In stock	Stake	£8.29 £6.91
26	MO325109749/0 Available to backorder	Wheels Cover Dark Green	£112.62 £93.85
27	MO112735420/0 Available to backorder	Screw	£4.64 £3.87
28	MO382110246/0 Available to backorder	Green Grass-Catcher Cover	£161.89 £134.91
29	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
30	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
31	MO112582100/0 Available to backorder	Grower	£1.63 £1.36
32	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
33	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
34	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
35	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
36	MO382869025/0 Available to backorder	Muffler Protection	£125.30 £104.42
37	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
38	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
39	MO112731580/0 Available to backorder	Screw	£1.63 £1.36
41	MO325120233/0 Available to backorder	Cap	£3.25 £2.71
