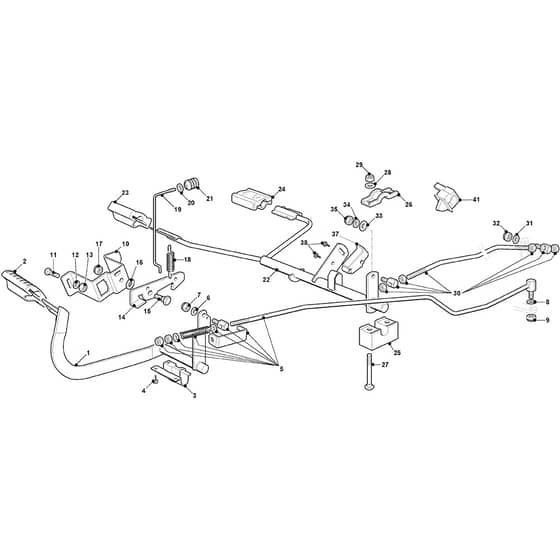

GTX 36H - 2022-2024 - 2T0785447/AT1 - Atco Ride On Mower Gearbox Controls Diagram

Name: GTX 36H - 2022-2024 - 2T0785447/AT1 - Atco Ride On Mower Gearbox Controls Diagram
SKU: gtx_36h_2t0785447_at1_gearbox_controls-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTX 36H - 2022-2024 - 2T0785447/AT1 - Atco Ride On Mower Gearbox Controls Diagram

Description

Atco GTX 36H Parts Diagram

Product Name - GTX 36H

Model Year - 2022-2024

Model Type - TCU 92 Hydro

Art.N - 2T0785447/AT1

Engine Model - ST 600

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.84 £9.03
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000582/0 Available to backorder	Brake Control Rod Assy	£52.08 £43.40
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
10	MO325785143/1 Available to backorder	Support	£4.33 £3.61
11	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
14	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
15	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
16	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
19	MO125033034/0 Available to backorder	Rod	£5.21 £4.34
20	MO125394509/1 In stock	Knob	£2.44 £2.03
21	MO112523020/0 In stock	Washer	£1.55 £1.29
22	MO382000393/0 Available to backorder	Feed.Reverse Gear Pedal	£63.20 £52.67
23	MO325110417/0 Available to backorder	Clamp Cover Front	£10.84 £9.03
24	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.84 £9.03
25	MO325785185/0 Available to backorder	Support	£3.67 £3.06
26	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
27	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
30	MO382000579/0 Available to backorder	Control Rod Assy	£33.79 £28.16
33	MO112521360/0 In stock	Washer	£1.55 £1.29
34	MO112523040/0 In stock	Washer	£1.49 £1.24
35	MO112154510/0 In stock	Nut	£1.55 £1.29
37	MO325060058/0 Available to backorder	Cam	£34.15 £28.46
38	MO112735404/0 Available to backorder	Screw	£1.55 £1.29
41	MO119410623/0 Available to backorder	Micro Switch N.C.	£7.62 £6.35
