GTX 36H - 2022-2024 - 2T0785447/AT1 - Atco Ride On Mower Body Diagram

Description

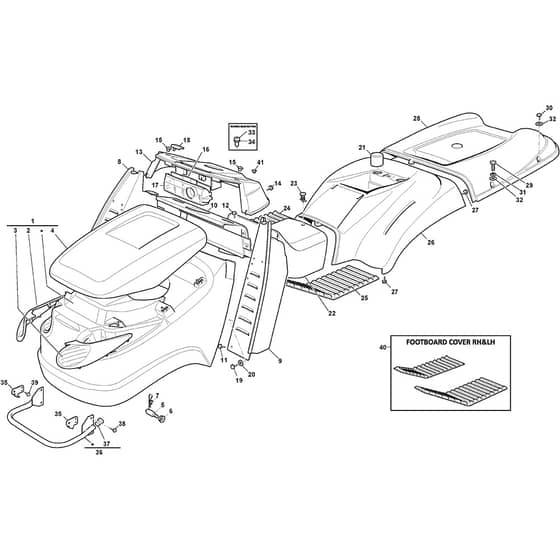

Atco GTX 36H Parts Diagram

Product Name - GTX 36H

Model Year - 2022-2024

Model Type - TCU 92 Hydro

Art.N - 2T0785447/AT1

Engine Model - ST 600

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076970/1 Available to backorder	Engine Hood. Green	£309.70 £258.08
2	MO325410891/0 Available to backorder	Right Grill	£8.87 £7.39
3	MO325410892/0 Available to backorder	Left Grill	£8.87 £7.39
4	MO325076940/0 Available to backorder	Upper Engine Hood Green Light Green	£76.02 £63.35
5	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
7	MO112293201/0 In stock	Nut	£1.69 £1.41
8	MO382785022/10 Available to backorder	Right Dashboard Support	£40.63 £33.86
9	MO382785021/9 Available to backorder	Left Dashboard Support	£38.20 £31.83
10	MO382785137/1 Available to backorder	Central Dashboard Support	£13.43 £11.19
12	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
13	MO325120275/1 Available to backorder	Black Dashboard	£46.46 £38.72
14	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
15	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
16	MO125600009/0 Available to backorder	Rear Card Protection	£15.76 £13.13
17	MO125600051/0 Available to backorder	Protection	£10.14 £8.45
18	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
19	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
20	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
21	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
22	MO325110305/0 Available to backorder	Green Central Cover Dark Green	£36.59 £30.49
23	MO125580020/2 In stock	Stake	£8.29 £6.91
24	MO125110270/0 Available to backorder	Right Footboard Cover	£54.08 £45.07
26	MO325109749/0 Available to backorder	Wheels Cover Dark Green	£112.62 £93.85
27	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
28	MO382110246/0 Available to backorder	Green Grass-Catcher Cover	£159.13 £132.61
29	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
30	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
31	MO112582101/0 Available to backorder	Grower	£1.66 £1.38
32	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
33	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
34	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
35	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
36	MO382869025/0 Available to backorder	Muffler Protection	£125.29 £104.41
37	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
38	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
39	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
40	MO382110314/0 Available to backorder	Footboard Cover Assy (Rh+Lh)	£54.08 £45.07
41	MO325120233/0 Available to backorder	Cap	£3.24 £2.70
