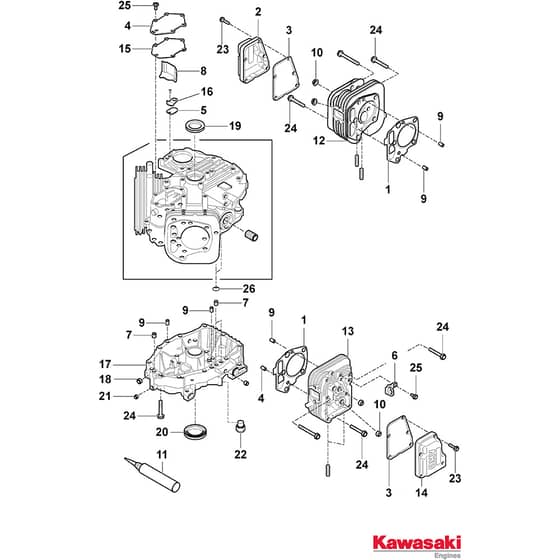

GTX 36H - 2021-2022 - 2T0410647/AT8 - Atco Ride On Mower Crankcase Diagram

Description

Atco GTX 36H Parts Diagram

Product Name - GTX 36H

Model Year - 2021-2022

Model Type - NJU 92 Hydro

Art.N - 2T0410647/AT8

Engine Model - Kawasaki FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	KA11004-7027 Available to backorder	Gasket	£57.72 £48.10
2	KA11022-0046 Available to backorder	Case Kawasaki p.n 11022-0710	£31.82 £26.52
3	KA11061-1285 Available to backorder	Gasket Kawasaki p.n 11061-7083	£9.60 £8.00
4	KA14091-7064 Available to backorder	Cover Kawasaki p.n 14091-7064	£3.58 £2.98
5	KA16126-7020 Available to backorder	Breather Valve Kawasaki p.n 16126-7020	£10.67 £8.89
6	KA27012-0721 Available to backorder	Hook Kawasaki p.n 27012-0721	£8.42 £7.02
7	KA92043-0858 Available to backorder	Pipe Kawasaki p.n 32154-7019	£4.42 £3.68
8	KA32155-7003 Available to backorder	Pipe Kawasaki p.n 32155-7003	£4.06 £3.38
9	KA92043-1263 Available to backorder	Pin Kawasaki p.n 92043-1263	£0.48 £0.40
10	KA92049-0862 Available to backorder	Oil Seal Kawasaki p.n 92049-7001	£17.04 £14.20
12	KA11008-7050 Available to backorder	Cilynder Kawasaki p.n 11008-7050	£311.28 £259.40
13	KA11008-7051 Available to backorder	Cilynder Kawasaki p.n 11008-7051	£311.28 £259.40
14	KA11022-7020 Available to backorder	Case Kawasaki p.n 11022-7020	£31.82 £26.52
15	KA11061-7094 Available to backorder	Gasket Kawasaki p.n 11061-7094	£18.59 £15.49
16	KA13272-1374 Available to backorder	Plate Kawasaki p.n 13272-1374	£4.12 £3.43
17	KA49015-0726 Available to backorder	Crankcase Kawasaki p.n 49015-0019	£257.04 £214.20
18	KA92049-7019 In stock	Oil Seal Kawasaki p.n 92049-7019	£4.32 £3.60
19	KA92049-7010 Available to backorder	Oil Seal Kawasaki p.n 92049-7010	£6.10 £5.08
20	KA92049-7028 Available to backorder	Oil Seal Kawasaki p.n 92049-7028	£28.80 £24.00
21	KA92066-0761 Available to backorder	Plug Kawasaki p.n 92066-0761	£7.99 £6.66
22	KA92066-0881 Available to backorder	Plug Kawasaki p.n 92066-0762	£8.21 £6.84
23	MO112735405/0 Available to backorder	Screw Kawasaki p.n 130AA0625	£1.55 £1.29
24	MO112691400/0 Available to backorder	Screw Kawasaki p.n 92153-7054	£1.55 £1.29
25	MO112735699/0 Available to backorder	Screw Kawasaki p.n 92153-7043	£1.40 £1.17
26	KA670B2-011 Available to backorder	O-Ring.11mm	£1.27 £1.06
