GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Seat Diagram

Name: GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Seat Diagram
SKU: gtl_46hr_twin_4wd_2t3025247_at8_seat-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Seat Diagram

Description

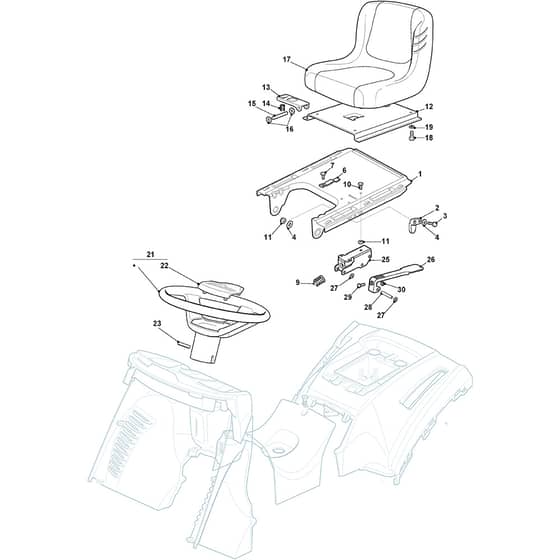

Atco GTL 46HR Twin 4WD Parts Diagram

Product Name - GTL 46HR Twin 4WD

Model Year - 2018-2020

Model Type - TH4U 118 Hydro SD

Art.N - 2T3025247/AT8

Engine Model - Intek 8240 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382785301/0 Available to backorder	Fixed Seat Support From S.N 419123	£43.64 £36.37
2	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
3	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
4	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
6	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
7	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
9	MO125430285/0 Available to backorder	Spring To 31-8-2017	£6.90 £5.75
9	MO125430291/0 Available to backorder	Spring From 01-9-2017	£12.11 £10.09
11	MO112154330/0 In stock	Nut	£1.55 £1.29
12	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
13	MO325318109/1 Available to backorder	Stop Lever	£4.50 £3.75
14	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
15	MO125510000/0 Available to backorder	Pin	£1.40 £1.17
16	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
17	MO125722468/0 Available to backorder	Seat From 01-9-2016	£316.75 £263.96
18	MO112793102/0 In stock	Screw	£1.55 £1.29
19	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
21	MO125961217/1 Available to backorder	Steering Wheel From 01-9-2016	£98.54 £82.12
22	MO325580500/0 Available to backorder	Cap	£7.62 £6.35
23	MO112620299/0 Available to backorder	Elastic Pin	£1.82 £1.52
25	MO325774575/0 Available to backorder	Fulcrum Clamp	£9.00 £7.50
26	MO325318327/0 Available to backorder	Lever To S.N 419122	£9.35 £7.79
26	MO382318315/0 Available to backorder	Lever From S.N 419123	£10.56 £8.80
27	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
28	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
29	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
30	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
