GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Fuel Tank Diagram

Name: GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Fuel Tank Diagram
SKU: gtl_46hr_twin_4wd_2t3025247_at8_fuel_tank-group
Price: 1.29 GBP
Availability: InStock

Part No. gtl_46hr_twin_4wd_2t3025247_at8_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GTL 46HR Twin 4WD - 2018-2020 - 2T3025247/AT8 - Atco Ride On Mower Fuel Tank Diagram

Description

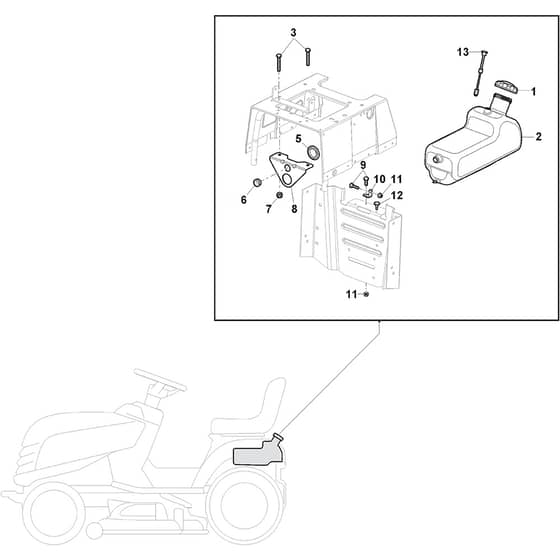

Atco GTL 46HR Twin 4WD Parts Diagram

Product Name - GTL 46HR Twin 4WD

Model Year - 2018-2020

Model Type - TH4U 118 Hydro SD

Art.N - 2T3025247/AT8

Engine Model - Intek 8240 V-Twin

	Part No.	Details
1	MO137793050/0 Available to backorder	Fuel Cap	£45.26 £37.72
2	MO325735129/0 Available to backorder	Fuel Tank [15 Litres]	£109.79 £91.49
3	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
5	MO325260012/0 Available to backorder	Grommet	£6.46 £5.38
6	MO325038022/0 Available to backorder	Bushing	£1.70 £1.42
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO325774685/0 Available to backorder	Rear Fuel Tank Support Bracket	£9.73 £8.11
9	MO112791213/1 In stock	Screw	£1.55 £1.29
10	MO325547427/0 Available to backorder	Bracket	£3.52 £2.93
11	MO112292102/0 In stock	Nut	£1.70 £1.42
12	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
13	MO125290002/1 Available to backorder	Fuel Level Indicator	£62.42 £52.02
