GT 730 A - 2022-2023 - 283210108/ST1 - Stiga Trimmer Transmission Diagram

Description

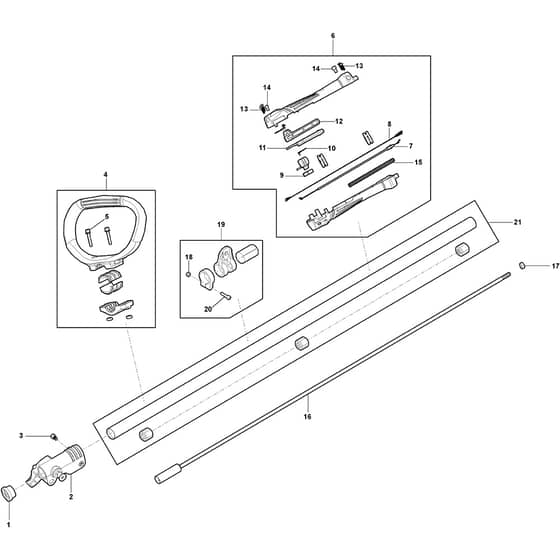

Stiga GT 730 A Parts Diagram

Product Name - GT 730 A

Model Year - 2022-2023

Model Type - TR 625 J

Art.N - 283210108/ST1

Engine Model -

	Part No.	Details
1	MO118804897/0 Available to backorder	Shaft Block	£1.26 £1.05
2	MO118805637/0 Available to backorder	Tube Joint Assy	£13.94 £11.62
4	MO118805610/0 Available to backorder	Front Handle	£34.14 £28.45
6	MO118805612/0 Available to backorder	Handle Kit	£38.45 £32.04
7	MO118805613/0 Available to backorder	Throttle Cable	£2.53 £2.11
8	MO118805614/0 Available to backorder	Stop Wire	£4.78 £3.98
9	MO118805176/0 Available to backorder	On-Off Switch	£1.97 £1.64
10	MO118805402/0 Available to backorder	Tension Spring	£1.39 £1.16
11	MO118805615/0 Available to backorder	Safety Lever	£3.41 £2.84
12	MO118805616/0 Available to backorder	Throttle Lever	£3.41 £2.84
13	MO118820833/0 Available to backorder	Screw	£1.55 £1.29
14	MO2135180 Available to backorder	Screw	£1.40 £1.17
15	MO118805400/0 Available to backorder	Cable Sheath	£2.40 £2.00
16	MO118805638/0 Available to backorder	Drive Shaft	£95.58 £79.65
17	MO118805639/0 Available to backorder	Rubber Sleeve	£10.58 £8.82
18	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
19	MO118805617/0 Available to backorder	Shoulder Strap Clip Kit	£22.32 £18.60
20	MO2135030 Available to backorder	Screw	£1.40 £1.17
21	MO118805620/0 Available to backorder		£62.14 £51.78
