GT 40H Twin 4WD - 2018-2020 - 2T1425247/AT8 - Atco Ride On Mower Front Axle Diagram

Description

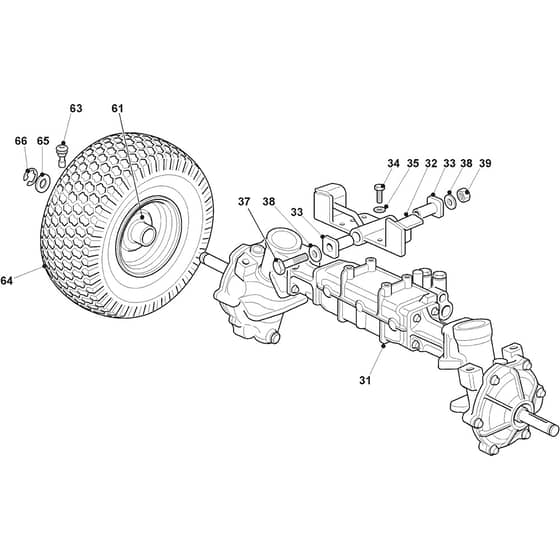

Atco GT 40H Twin 4WD Parts Diagram

Product Name - GT 40H Twin 4WD

Model Year - 2018-2020

Model Type - TH4U 102 Hydro

Art.N - 2T1425247/AT8

Engine Model - Intek 8240 V-Twin

	Part No.	Details
32	MO382547057/1 Available to backorder	Support	£197.09 £164.24
33	MO125040633/0 Available to backorder	Bushing	£15.49 £12.91
35	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
37	MO112695900/0 Available to backorder	Screw	£9.65 £8.04
38	MO112521395/0 Available to backorder	Washer	£1.97 £1.64
39	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
61	MO182000601/1 Available to backorder	Front Wheel Rimm	£91.50 £76.25
63	MO125950000/0 In stock	Valve	£5.34 £4.45
64	MO125590036/0 Available to backorder	Tyre 16X6.50-8 Ply2 Tl K500E (Kenda) From 01-9-2019	£84.46 £70.38
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001010/0 In stock	Circlip Id.0.580" Th.0.050"	£1.84 £1.53
