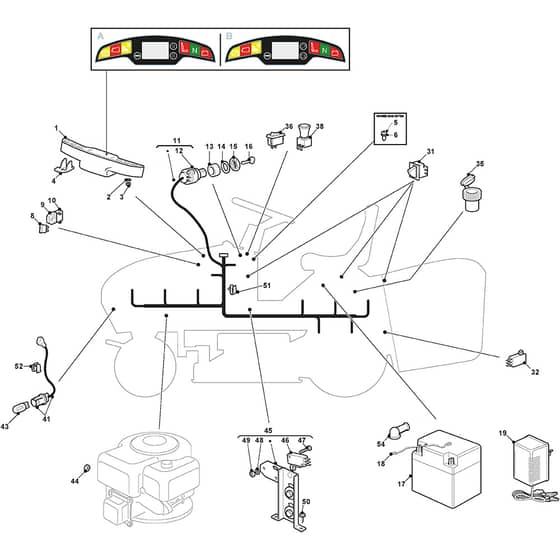

GT 40H Twin 4WD - 2018-2020 - 2T1425247/AT8 - Atco Ride On Mower Electrical Parts Diagram

Description

Atco GT 40H Twin 4WD Parts Diagram

Product Name - GT 40H Twin 4WD

Model Year - 2018-2020

Model Type - TH4U 102 Hydro

Art.N - 2T1425247/AT8

Engine Model - Intek 8240 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382722434/1 Available to backorder	Electronic Card + Guards	£381.08 £317.57
2	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
3	MO112154330/0 In stock	Nut	£1.55 £1.29
4	MO325031501/0 Available to backorder	Buzzer Sound Amplifier	£6.34 £5.28
5	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
6	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
8	MO133340035/0 Available to backorder	Fuse 15 A	£1.55 £1.29
8	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
8	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
9	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO182040217/1 Available to backorder	Wiring Harness	£274.51 £228.76
12	MO118450072/0 In stock	Starting Switch	£30.97 £25.81
13	MO118550136/0 Available to backorder	Spacer	£1.55 £1.29
14	MO118550135/0 Available to backorder	Washer	£1.97 £1.64
15	MO118400862/0 Available to backorder	Threaded Ring Nut	£5.21 £4.34
16	MO118210022/0 In stock	Starting Key	£10.14 £8.45
17	MO118120072/0 Available to backorder	Battery	£110.33 £91.94
18	MO125430230/0 Available to backorder	Spring	£3.79 £3.16
19	MO1134-9250-01 In stock	Battery Charger 12V 1A - Uk Plugg UK plug	£60.06 £50.05
31	MO119410622/1 In stock	Microswitch From S.N 19EA1RON000835	£6.62 £5.52
32	MO119410605/1 In stock	Microswitch	£39.42 £32.85
35	MO118450200/0 Available to backorder	Cigarette Lighter Socket	£20.21 £16.84
36	MO118450084/0 Available to backorder	Headlight Switch From S.N 19EA1RON002141	£4.50 £3.75
38	MO118450073/0 In stock	Clutch Switch Red	£14.92 £12.43
41	MO182040073/0 Available to backorder	Lamp Holder Harness	£16.51 £13.76
43	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
44	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
45	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
46	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
47	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
48	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
49	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
50	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
51	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
52	MO133320504/0 Available to backorder	Fairlead	£1.97 £1.64
54	MO118564864/1 Available to backorder	Rubber Terminal Cover [Red]	£5.92 £4.93
