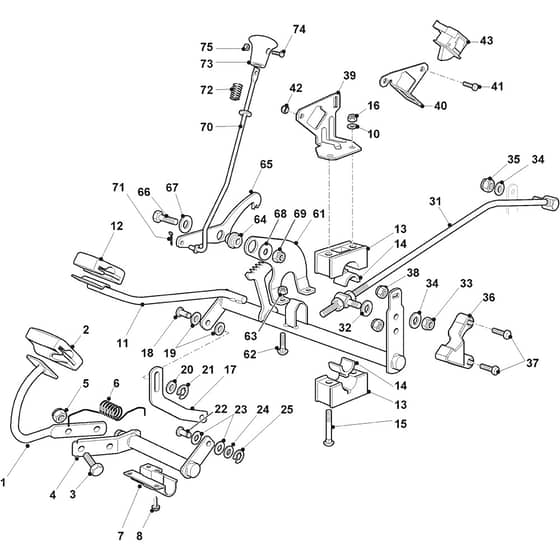

GT 40H Twin 4WD - 2018-2020 - 2T1425247/AT8 - Atco Ride On Mower Drive Controls Diagram

Name: GT 40H Twin 4WD - 2018-2020 - 2T1425247/AT8 - Atco Ride On Mower Drive Controls Diagram
SKU: gt_40h_twin_4wd_2t1425247_at8_drive_controls-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GT 40H Twin 4WD - 2018-2020 - 2T1425247/AT8 - Atco Ride On Mower Drive Controls Diagram

Description

Atco GT 40H Twin 4WD Parts Diagram

Product Name - GT 40H Twin 4WD

Model Year - 2018-2020

Model Type - TH4U 102 Hydro

Art.N - 2T1425247/AT8

Engine Model - Intek 8240 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500045/0 Available to backorder	Pedal	£39.42 £32.85
2	MO325110275/0 Available to backorder	Clamp Cover	£3.79 £3.16
3	MO112793301/0 In stock	Screw	£1.55 £1.29
4	MO382000559/1 Available to backorder	Reverse Pedal Axle Assy	£27.24 £22.70
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO125430246/1 Available to backorder	Spring	£2.68 £2.23
7	MO325547133/1 Available to backorder	Plate	£4.78 £3.98
8	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO382000617/2 Available to backorder	Drive Pedal Axle Assy	£84.47 £70.39
12	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
13	MO325785354/0 Available to backorder	Support	£2.12 £1.77
14	MO325034003/0 Available to backorder	Brass	£1.82 £1.52
15	MO112815271/0 Available to backorder	Screw	£1.69 £1.41
17	MO325547207/0 Available to backorder	Plate	£7.52 £6.27
22	MO125510085/1 Available to backorder	Pin	£1.55 £1.29
23	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
24	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
25	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
31	MO382000612/1 Available to backorder	Feed Control Axle Assy From 01-9-2017	£57.71 £48.09
32	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
34	MO112523040/0 In stock	Washer	£1.49 £1.24
35	MO112154510/0 In stock	Nut	£1.55 £1.29
36	MO325060050/0 Available to backorder	Cam	£4.93 £4.11
37	MO112789100/0 Available to backorder	Screw To 31-8-2018	£1.55 £1.29
37	MO112789195/0 Available to backorder	Screw From 01-9-2018	£1.39 £1.16
38	MO112154330/0 In stock	Nut	£1.55 £1.29
40	MO325785479/0 Available to backorder	Micro Switch Bracket	£8.65 £7.21
41	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
43	MO119410623/0 Available to backorder	Microswitch From S.N 20AA1RON001378	£7.62 £6.35
61	MO325774477/0 Available to backorder	Clamp	£24.78 £20.65
62	MO112815210/0 Available to backorder	Screw	£1.55 £1.29
63	MO112292102/0 In stock	Nut	£1.69 £1.41
64	MO125040638/0 Available to backorder	Bushing	£5.48 £4.57
65	MO325022000/1 Available to backorder	Hook	£39.42 £32.85
66	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
68	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
70	MO125033092/0 Available to backorder	Feed Control Rod	£26.04 £21.70
71	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
72	MO125430232/0 Available to backorder	Spring	£1.55 £1.29
73	MO325605002/0 Available to backorder	Button	£2.40 £2.00
74	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
75	MO112290800/0 Available to backorder	Hexagon Nut M4 Uni 5588 Acc.6S	£1.55 £1.29
