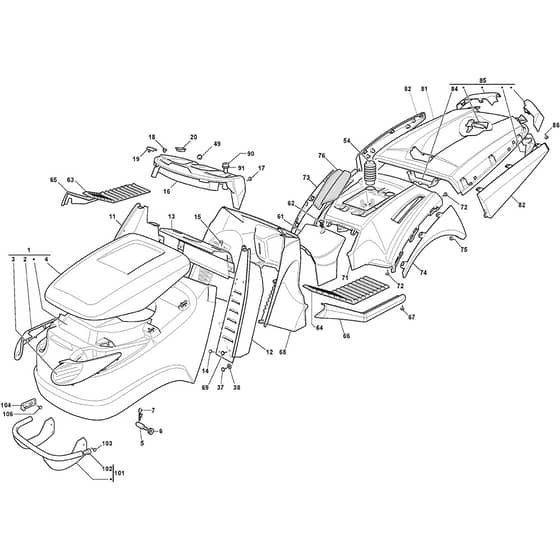

GT 40H Twin - 2018-2020 - 2T0980247/AT8 - Atco Ride On Mower Body Diagram

Name: GT 40H Twin - 2018-2020 - 2T0980247/AT8 - Atco Ride On Mower Body Diagram
SKU: gt_40h_twin_2t0980247_at8_body-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GT 40H Twin - 2018-2020 - 2T0980247/AT8 - Atco Ride On Mower Body Diagram

Description

Atco GT 40H Twin Parts Diagram

Product Name - GT 40H Twin

Model Year - 2018-2020

Model Type - TU 102 Hydro

Art.N - 2T0980247/AT8

Engine Model - Intek 7220 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382076970/1 Available to backorder	Engine Hood. Green	£309.70 £258.08
2	MO325410891/0 Available to backorder	Right Grill	£8.87 £7.39
3	MO325410892/0 Available to backorder	Left Grill	£8.87 £7.39
4	MO325076940/0 Available to backorder	Upper Engine Hood Green Light Green	£76.02 £63.35
5	MO125510068/0 Available to backorder	Pin	£1.97 £1.64
6	MO112293201/0 In stock	Nut	£1.69 £1.41
7	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
11	MO382785022/10 Available to backorder	Right Dashboard Support To S.N 419952	£40.63 £33.86
12	MO382785021/9 Available to backorder	Left Dashboard Support From S.N 419953	£38.20 £31.83
13	MO382785137/1 Available to backorder	Central Dashboard Support	£13.43 £11.19
15	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
16	MO325120263/0 Available to backorder	Dashboard. Grey (No Cruise Control) Grey	£39.42 £32.85
17	MO112728440/0 Available to backorder	Screw	£1.40 £1.17
18	MO125120200/0 Available to backorder	Cap	£1.40 £1.17
19	MO125260000/0 Available to backorder	Grommet	£2.95 £2.46
37	MO9943-0516-16 In stock	Screw	£1.22 £1.02
38	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
49	MO325120233/0 Available to backorder	Cap Starter Control Hole Closing Cap	£3.24 £2.70
54	MO325737002/0 Available to backorder	Hood	£17.08 £14.23
61	MO325110501/0 Available to backorder	Black Central Cover Black	£32.38 £26.98
62	MO125580020/2 In stock	Stake	£8.29 £6.91
63	MO325110278/1 Available to backorder	Right Footboard Cover	£30.97 £25.81
64	MO325110279/0 Available to backorder	Left Footboard Cover	£30.97 £25.81
65	MO325599004/0 Available to backorder	Right Profile	£15.78 £13.15
66	MO325599005/0 Available to backorder	Left Profil	£17.45 £14.54
68	MO325785449/0 Available to backorder	Dashboard Support	£75.31 £62.76
71	MO325109788/0 Available to backorder	Green Wheels Cover Dark Green	£113.32 £94.43
72	MO112735420/0 Available to backorder	Screw	£4.66 £3.88
73	MO325109758/0 Available to backorder	Right Wheel Cover	£17.95 £14.96
74	MO325109757/0 Available to backorder	Left Wheel Cover	£17.95 £14.96
75	MO112728686/0 In stock	Screw	£1.55 £1.29
76	MO325207129/1 Available to backorder	Cover. Can Holder From S.N 419324	£25.06 £20.88
81	MO325110449/0 Available to backorder	Green Grass-Catcher Cover Dark Green	£167.53 £139.61
82	MO382110254/0 Available to backorder	Cover Assy	£50.68 £42.23
84	MO325394009/0 Available to backorder	Handle Cover	£33.54 £27.95
85	MO382110289/0 Available to backorder	Angles Assy	£36.92 £30.77
86	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
90	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
91	MO325256250/0 Available to backorder	Screwed Ring	£2.53 £2.11
101	MO382869025/0 Available to backorder	Muffler Protection	£125.29 £104.41
102	MO118737860/0 Available to backorder	Cap	£1.55 £1.29
103	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
104	MO325547109/2 Available to backorder	Plate	£4.93 £4.11
106	MO112731580/0 Available to backorder	Self-Tap Screw Te 4.8 X 9.5 C15 Bz	£1.55 £1.29
