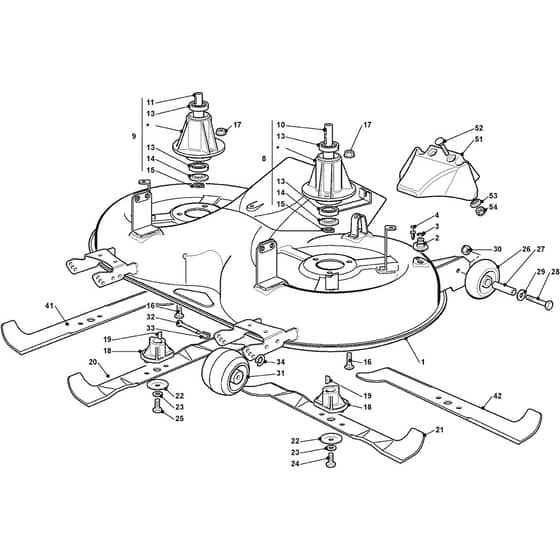

GT 40H Twin - 2013-2018 - 2T0951247/AT3 - Atco Ride On Mower Cutting Plate Diagram

Description

Atco GT 40H Twin Parts Diagram

Product Name - GT 40H Twin

Model Year - 2013-2018

Model Type - TCU 102 Hydro

Art.N - 2T0951247/AT3

Engine Model - Intek 7220 V-Twin

	Part No.	Details
1	MO382564131/1 Available to backorder	Cutting Plate Grey	£662.83 £552.36
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
8	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.34 £84.45
9	MO382207201/3LC In stock	Secondary Blade Shaft Ass.Y	£91.50 £76.25
10	MO125020800/1 Available to backorder	Main Blade Shaft	£46.48 £38.73
11	MO125020801/2 Available to backorder	Secondary Blade Shaft	£43.07 £35.89
13	MO119216047/0 In stock	Bearing	£15.78 £13.15
14	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
15	MO112609260/0 In stock	Seeger	£1.84 £1.53
16	MO112818700/0 In stock	Screw	£1.55 £1.29
17	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
18	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
19	MO112139100/0 In stock	Key	£1.55 £1.29
20	MO182004348/0 In stock	Right Mulching Blade. Winged	£27.89 £23.24
21	MO182004347/0 In stock	Left Mulching Blade. Winged	£27.89 £23.24
22	MO125160503/0 In stock	Blade Hub Elastic Disc Lawntr. From 01-9-2015	£3.52 £2.93
22	MO122160400/0 In stock	Elastic Disc To 31-8-2015	£1.84 £1.53
23	MO112523080/0 In stock	Washer To 31-8-2015	£1.55 £1.29
24	MO112735694/0 In stock	Screw To 31-8-2015	£1.97 £1.64
24	MO112735696/0 In stock	Screw From 01-9-2015	£2.66 £2.22
25	MO112735695/1 In stock	Screw To 31-8-2015	£3.79 £3.16
25	MO112735697/1 In stock	Screw From 01-9-2015	£2.12 £1.77
26	MO182700003/0 Available to backorder	Anti Scalp Wheel	£10.40 £8.67
27	MO125510072/1 In stock	Spacer	£1.84 £1.53
28	MO112692050/0 In stock	Screw	£1.84 £1.53
29	MO112523060/0 In stock	Washer	£1.55 £1.29
30	MO112293201/0 In stock	Nut	£1.70 £1.42
31	MO182700004/0 In stock	Anti Scalp Wheel	£18.88 £15.73
32	MO125510121/1 In stock	Pin	£9.20 £7.67
33	MO122450115/0 In stock	Spring	£1.55 £1.29
34	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
41	MO182004341/1 In stock	Right Blade. Winged	£26.66 £22.22
42	MO182004340/1 In stock	Left Blade. Winged	£26.66 £22.22
51	MO325140100/0 In stock	Deflector	£20.34 £16.95
52	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
53	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
54	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
