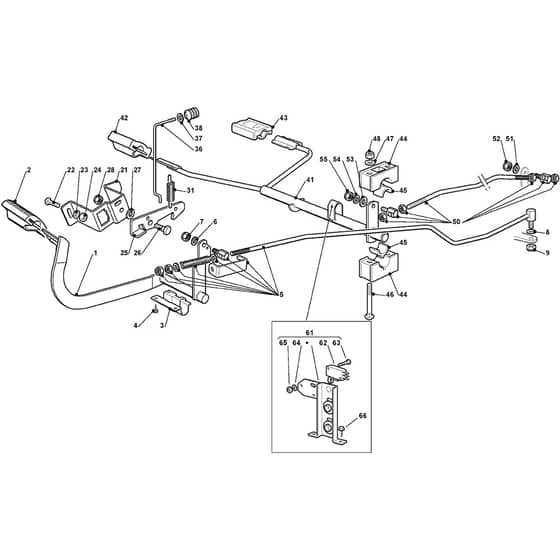

GT 40H Twin - 2013-2018 - 2T0951247/AT3 - Atco Ride On Mower Brake Controls Diagram

Description

Atco GT 40H Twin Parts Diagram

Product Name - GT 40H Twin

Model Year - 2013-2018

Model Type - TCU 102 Hydro

Art.N - 2T0951247/AT3

Engine Model - Intek 7220 V-Twin

	Part No.	Details
1	MO382500011/2 Available to backorder	Pedal	£76.02 £63.35
2	MO325110416/0 Available to backorder	Clamp Cover	£10.85 £9.04
3	MO325547081/2 Available to backorder	Plate	£5.06 £4.22
4	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
5	MO382000582/0 Available to backorder	Brake Control Rod Assy	£52.08 £43.40
6	MO112521350/0 In stock	Washer	£1.55 £1.29
21	MO325785143/1 Available to backorder	Support	£4.50 £3.75
22	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
25	MO325253001/0 Available to backorder	Hook	£4.08 £3.40
26	MO122524970/2 Available to backorder	Fulcrum Pin	£1.90 £1.58
27	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
28	MO112155000/0 In stock	Nut	£1.55 £1.29
31	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
36	MO125033034/0 Available to backorder	Rod	£5.22 £4.35
37	MO125394509/1 In stock	Knob	£2.53 £2.11
38	MO112523020/0 In stock	Washer	£1.55 £1.29
41	MO382000391/1 Available to backorder	Feed.Reverse Gear Control Axle Assy	£82.37 £68.64
42	MO325110417/0 Available to backorder	Clamp Cover Front	£10.85 £9.04
43	MO325110418/0 Available to backorder	Clamp Cover Rear	£10.85 £9.04
44	MO325785354/0 Available to backorder	Support	£2.11 £1.76
45	MO325034003/0 Available to backorder	Brass	£1.84 £1.53
46	MO112815271/0 Available to backorder	Screw	£1.70 £1.42
50	MO382000579/0 Available to backorder	Control Rod Assy	£33.79 £28.16
53	MO112521360/0 In stock	Washer	£1.55 £1.29
54	MO112523040/0 In stock	Washer	£1.55 £1.29
55	MO112154510/0 In stock	Nut	£1.55 £1.29
61	MO382394853/0LC Available to backorder	Switch Ass.Y	£56.32 £46.93
62	MO119410609/1LC In stock	Microswitch	£27.17 £22.64
63	MO112735602/0 Available to backorder	Screw	£1.55 £1.29
64	MO112581100/0 Available to backorder	Grower	£1.33 £1.11
65	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
66	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
