GT 40H Twin - 2013-2018 - 2T0951247/AT3 - Atco Ride On Mower Blade Engagement Diagram

Name: GT 40H Twin - 2013-2018 - 2T0951247/AT3 - Atco Ride On Mower Blade Engagement Diagram
SKU: gt_40h_twin_2t0951247_at3_blade_engagement-group
Price: 1.29 GBP
Availability: InStock

Part No. gt_40h_twin_2t0951247_at3_blade_engagement-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GT 40H Twin - 2013-2018 - 2T0951247/AT3 - Atco Ride On Mower Blade Engagement Diagram

Description

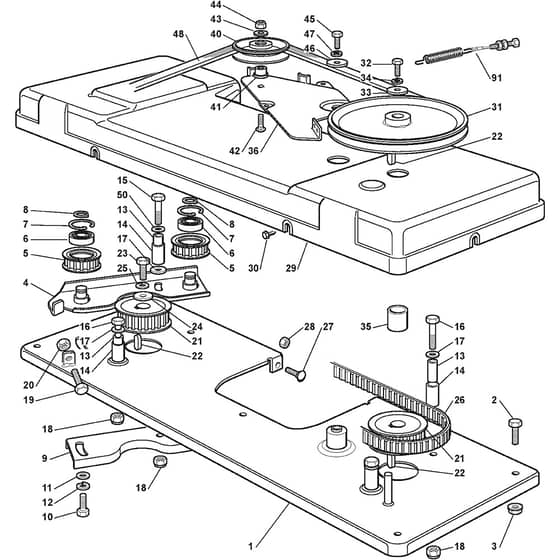

Atco GT 40H Twin Parts Diagram

Product Name - GT 40H Twin

Model Year - 2013-2018

Model Type - TCU 102 Hydro

Art.N - 2T0951247/AT3

Engine Model - Intek 7220 V-Twin

	Part No.	Details
1	MO382547029/3 Available to backorder	Blade Transmission Plate From 01-9-2015	£115.42 £96.18
2	MO112793102/0 In stock	Screw From 01-9-2016	£1.55 £1.29
2	MO112792611/0 In stock	Screw To 31-8-2016	£1.55 £1.29
3	MO112154220/0 Available to backorder	Nut From 01-9-2016	£1.63 £1.36
3	MO112293201/0 In stock	Nut To 31-8-2016	£1.70 £1.42
4	MO382785084/3 Available to backorder	Support From 01-9-2015	£32.38 £26.98
5	MO125601559/1 In stock	Toothed Pulley	£40.82 £34.02
6	MO119216048/0 In stock	Bearing	£18.31 £15.26
7	MO112610800/0 In stock	Seeger	£1.70 £1.42
91	MO182004608/0 In stock	Blade Engage Cable	£23.23 £19.36
