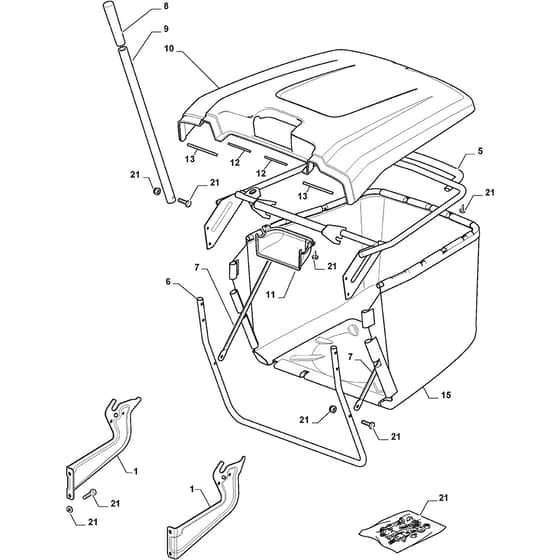

GT 38H Twin - 2019-2020 - 2T2610647/AT9 - Atco Ride On Mower Grasscatcher Diagram

Description

Atco GT 38H Twin Parts Diagram

Product Name - GT 38H Twin

Model Year - 2019-2020

Model Type - MPS 98 Hydro

Art.N - 2T2610647/AT9

Engine Model - FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382785289/0 Available to backorder	Support Ass.Y	£56.02 £46.68
5	MO382800139/0 Available to backorder	Upper Frame	£113.03 £94.19
6	MO382800141/0 Available to backorder	Front Frame	£40.82 £34.02
7	MO325650149/0 Available to backorder	Stiffening	£8.45 £7.04
8	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
9	MO325869087/1 Available to backorder	Rod From S.N 20AA3RON008871	£24.64 £20.53
10	MO325110447/0 Available to backorder	Green Grass-Catcher Cover Dark Green	£116.81 £97.34
11	MO325207195/1 Available to backorder	Handle Cover	£10.79 £8.99
12	MO125270802/0 Available to backorder	Seal	£4.22 £3.52
13	MO125270803/0 Available to backorder	Seal	£4.22 £3.52
15	MO182105947/0 Available to backorder	Grasscatcher Black without Logo	£153.44 £127.87
21	MO382180123/0 Available to backorder	Grasscatcher Assembly Kit Mp84 He	£2.58 £2.15
