GT 30H - 2012-2020 - 2T2110247/AT2 - Atco Ride On Mower Guards Diagram

Name: GT 30H - 2012-2020 - 2T2110247/AT2 - Atco Ride On Mower Guards Diagram
SKU: gt_30h_2t2110247_at2_guards-group
Price: 1.36 GBP
Availability: InStock

Part No. gt_30h_2t2110247_at2_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GT 30H - 2012-2020 - 2T2110247/AT2 - Atco Ride On Mower Guards Diagram

Description

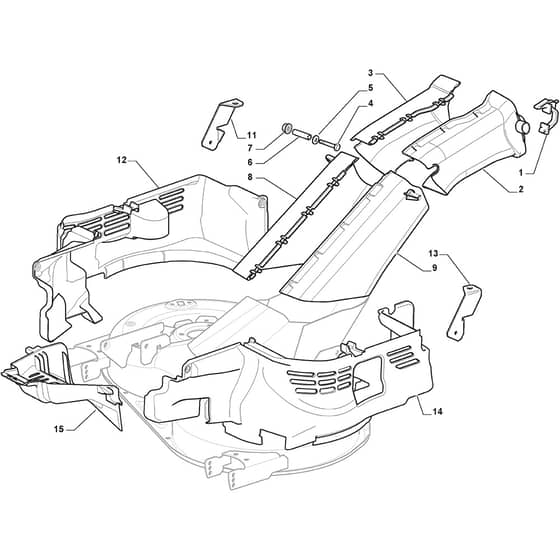

Atco GT 30H Parts Diagram

Product Name - GT 30H

Model Year - 2012-2020

Model Type - MPS 84 Hydro

Art.N - 2T2110247/AT2

Engine Model - PowerBuilt 3130 AVS

	Part No.	Details
1	MO325774499/0 In stock	Clamp	£2.53 £2.11
2	MO325108057/0 Available to backorder	Conveyor	£15.90 £13.25
3	MO325108056/0 Available to backorder	Conveyor	£15.97 £13.31
4	MO112792425/0 Available to backorder	Screw	£1.69 £1.41
5	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
6	MO125160109/0 Available to backorder	Spacer	£1.70 £1.42
7	MO112292102/0 In stock	Nut	£1.70 £1.42
8	MO325108064/0 In stock	Conveyor	£18.43 £15.36
9	MO325108065/0 In stock	Conveyor	£18.43 £15.36
11	MO325774527/0 Available to backorder	Clamp	£3.25 £2.71
12	MO325060168/0 Available to backorder	Case	£39.42 £32.85
13	MO325774529/0 Available to backorder	Clamp	£3.66 £3.05
14	MO325060169/0 Available to backorder	Case	£35.20 £29.33
15	MO325060166/0 Available to backorder	Front Deck Guard [Black]	£12.40 £10.33
