GT 30e - 2022 - 2T2205447/AT2 - Atco Ride On Mower Grasscatcher Diagram

Description

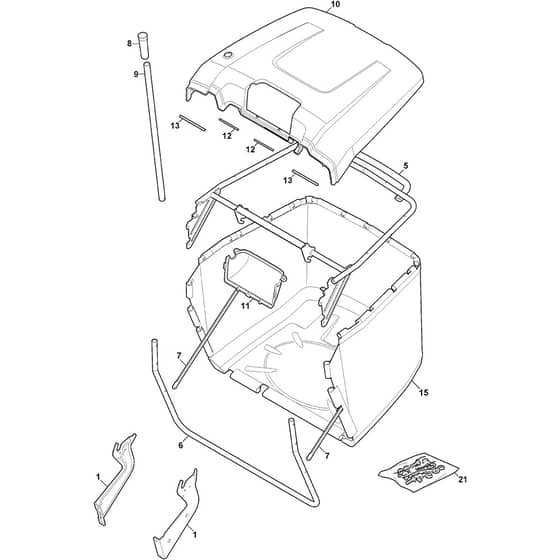

Atco GT 30e Parts Diagram

Product Name - GT 30e

Model Year - 2022

Model Type - MPS 84 LI 48 V2

Art.N - 2T2205447/AT2

Engine Model -

	Part No.	Details
1	MO382785289/1 Available to backorder	Support Ass.Y	£84.46 £70.38
5	MO382800139/0 Available to backorder	Upper Frame	£119.20 £99.33
6	MO382800141/0 Available to backorder	Front Frame	£40.82 £34.02
7	MO325650149/0 Available to backorder	Stiffening	£8.45 £7.04
8	MO125394508/0 Available to backorder	Knob	£5.06 £4.22
9	MO325869087/1 Available to backorder	Rod	£24.64 £20.53
10	MO325110447/0 Available to backorder	Green Grass-Catcher Cover Dark Green	£131.09 £109.24
11	MO325207195/1 Available to backorder	Handle Cover	£10.78 £8.98
12	MO125270802/0 Available to backorder	Seal	£4.24 £3.53
13	MO125270803/0 Available to backorder	Seal	£4.24 £3.53
15	MO182105947/0 Available to backorder	Grasscatcher Black without Logo	£153.44 £127.87
21	MO382180123/0 Available to backorder	Grasscatcher Assembly Kit Mp84 He	£2.58 £2.15
