GT 300e Kit - 2024-2025 - 273102501/ST1 - Stiga Trimmer Trimmer Diagram

Description

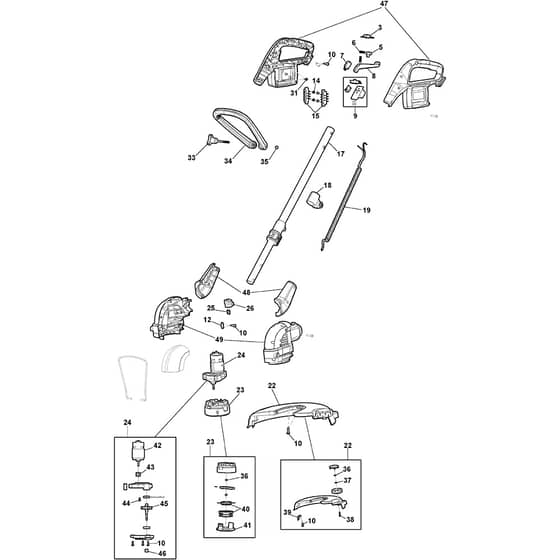

Stiga GT 300e Kit Parts Diagram

Product Name - GT 300e Kit

Model Year - 2024-2025

Model Type - LT 20 Li B

Art.N - 273102501/ST1

Engine Model -

	Part No.	Details
1	MO118811554/0 Available to backorder	Slide	£1.36 £1.13
5	MO118811556/0 Available to backorder	Trigger Lock	£1.33 £1.11
6	MO118806268/0 Available to backorder	Spring	£1.38 £1.15
7	MO118811557/0 Available to backorder	Micro Switch	£5.26 £4.38
8	MO118811558/0 Available to backorder	Trigger	£3.47 £2.89
9	MO118811559/0 Available to backorder	Pcb Assy	£85.14 £70.95
10	MO123878121/0 Available to backorder	Screw	£1.79 £1.49
14	MO2123090 Available to backorder	Screw	£1.70 £1.42
15	MO118811521/0 Available to backorder	Battery Connector	£11.81 £9.84
17	MO118811608/0 Available to backorder	Handle Tube Assy	£25.20 £21.00
18	MO118811562/0 Available to backorder	Front Handle Support	£2.80 £2.33
19	MO118811563/0 Available to backorder	Wire	£21.28 £17.73
22	MO118811564/0 Available to backorder	Safety Cover Assy	£19.55 £16.29

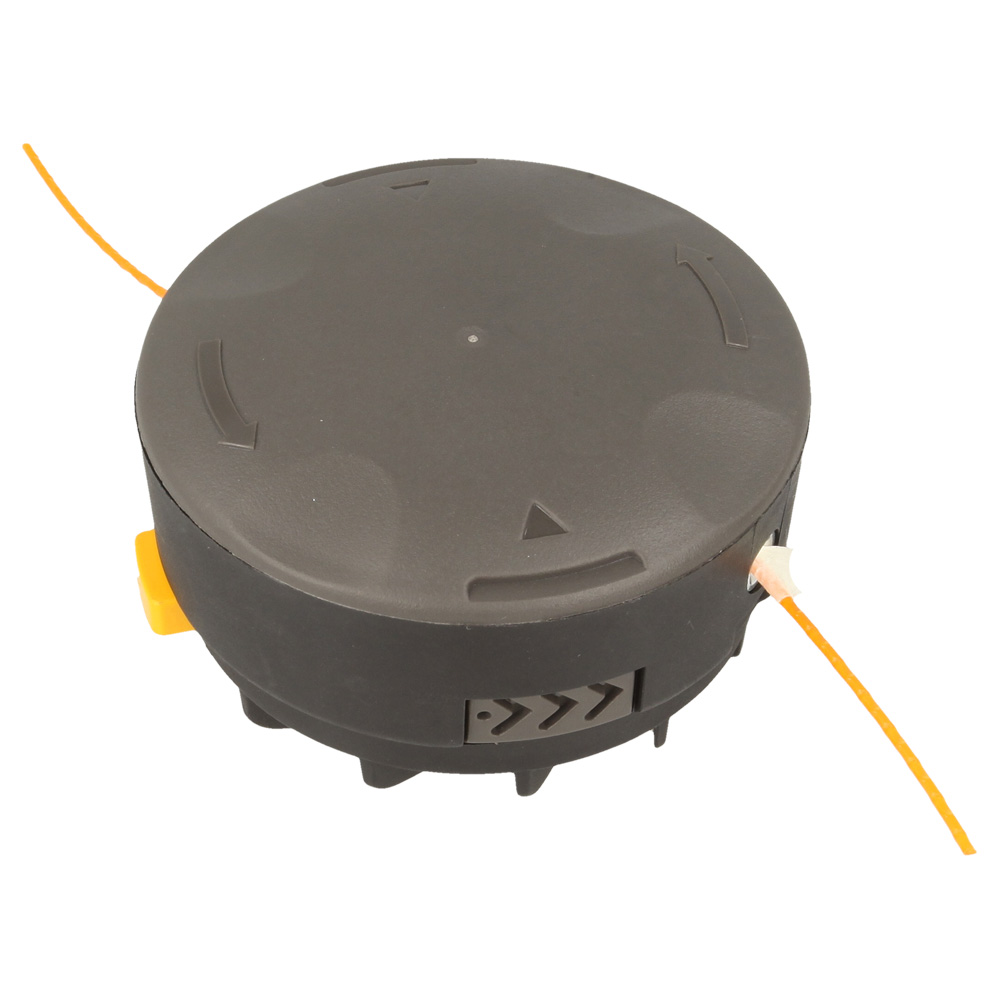

23	MO118811609/0 Available to backorder	Trimmer Head Assy	£8.88 £7.40
24	MO118811567/0 Available to backorder	Electric Motor Assy	£71.02 £59.18
25	MO118811572/0 Available to backorder	Spring	£1.36 £1.13
26	MO118811573/0 Available to backorder	Rotating Button	£1.50 £1.25
31	MO2123070 Available to backorder	Screw	£1.33 £1.11
33	MO118811560/0 Available to backorder	Knob	£2.62 £2.18
34	MO118811561/0 Available to backorder	Front Handle	£8.35 £6.96
35	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
36	MO2461030 Available to backorder	Nut	£1.33 £1.11
37	MO9699-0087-02 In stock	Washer	£2.22 £1.85
38	MO2132550 Available to backorder	Screw	£1.39 £1.16
39	MO118811565/0 Available to backorder	Line Cutter Blade	£2.22 £1.85
40	MO118811638/0 Available to backorder	Spool With Line	£14.27 £11.89
49	MO118811603/0 Available to backorder		£14.80 £12.33
