GSH 560 - Oleo-Mac Chainsaw Chain Cover Diagram

GSH 560 - Oleo-Mac Chainsaw Chain Cover Diagram

Part No. gsh_560_chain_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

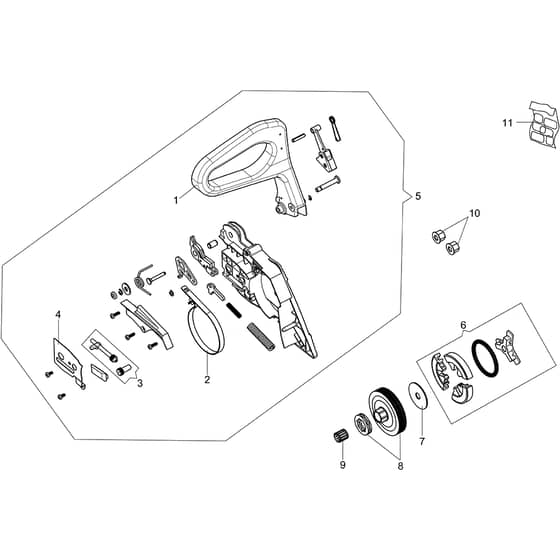

GSH 560 - Oleo-Mac Chainsaw Chain Cover Diagram

GSH 560 - Oleo-Mac Chainsaw Chain Cover Diagram

Description

Oleo-Mac GSH 560 Parts Diagram

Ref.		Img.	Part No.	Details
	1		EF50310017AR Available to backorder	Guard		£8.64 £7.20
	2		EF50310027R Available to backorder	Brake Band		£3.12 £2.60
	3		EF50310263 Available to backorder	Chain Tensioner Screw Kit		£4.20 £3.50
	4		EF50310011AR Available to backorder	Plate		£1.84 £1.53
	5		EF50312003R Available to backorder	Chain Cover Assy		£39.48 £32.90
	6		EF50310004R Available to backorder	Clutch		£12.36 £10.30
	7		EF50310073R Available to backorder	Washer		£1.32 £1.10
	8		EF50310005R Available to backorder	Clutch Drum 0.325		£10.56 £8.80
	8		EF50310193R Available to backorder	Clutch Drum 45872		£12.60 £10.50
	9		EF3037041R Available to backorder	Thrust Bearing		£4.44 £3.70
	10		EF50010148R In stock	Nut		£2.09 £1.74

Description

Oleo-Mac GSH 560 Parts Diagram
