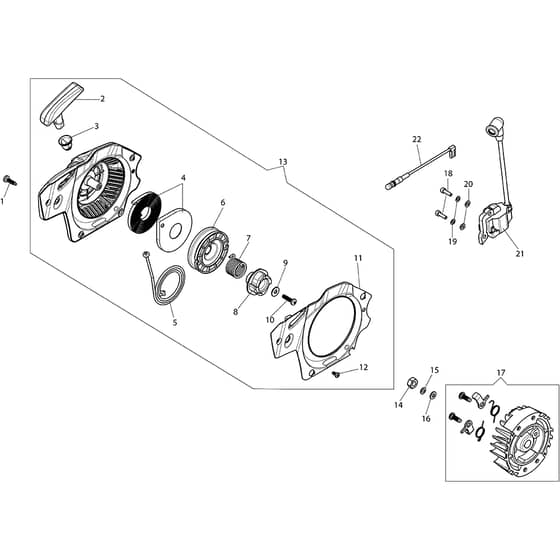

GSH 400 - Oleo-Mac Chainsaw Starter Assy Diagram

GSH 400 - Oleo-Mac Chainsaw Starter Assy Diagram

Part No. gsh_400_starter_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GSH 400 - Oleo-Mac Chainsaw Starter Assy Diagram

GSH 400 - Oleo-Mac Chainsaw Starter Assy Diagram

Description

Oleo-Mac GSH 400 Parts Diagram

Ref.		Img.	Part No.	Details
	1		EF3960115R Available to backorder	Screw		£1.08 £0.90
	2		EF50170017R Available to backorder	Starter Handle		£3.84 £3.20
	3		EF094000038 Available to backorder	Bushing		£2.00 £1.67
	4		EF50310260 Available to backorder	Kit Spring		£3.48 £2.90
	5		EF50070123R Available to backorder	Starter Rope		£2.00 £1.67
	6		EF50310302AR Available to backorder	Pulley		£3.24 £2.70
	7		EF50270231 Available to backorder	Spring		£2.18 £1.82
	8		EF50310301R Available to backorder	Sprocket		£2.29 £1.91
	9		EF094600054 Available to backorder	Washer		£1.08 £0.90
	13		EF50332015R Available to backorder	Starter Assy		£27.72 £23.10
	14		EF004000142 Available to backorder	Nut		£1.08 £0.90
	15		EF3916009 Available to backorder	Washer		£1.08 £0.90
	16		EF3833080 Available to backorder	Washer		£1.08 £0.90
	19		EF006000315 Available to backorder	Washer		£1.08 £0.90

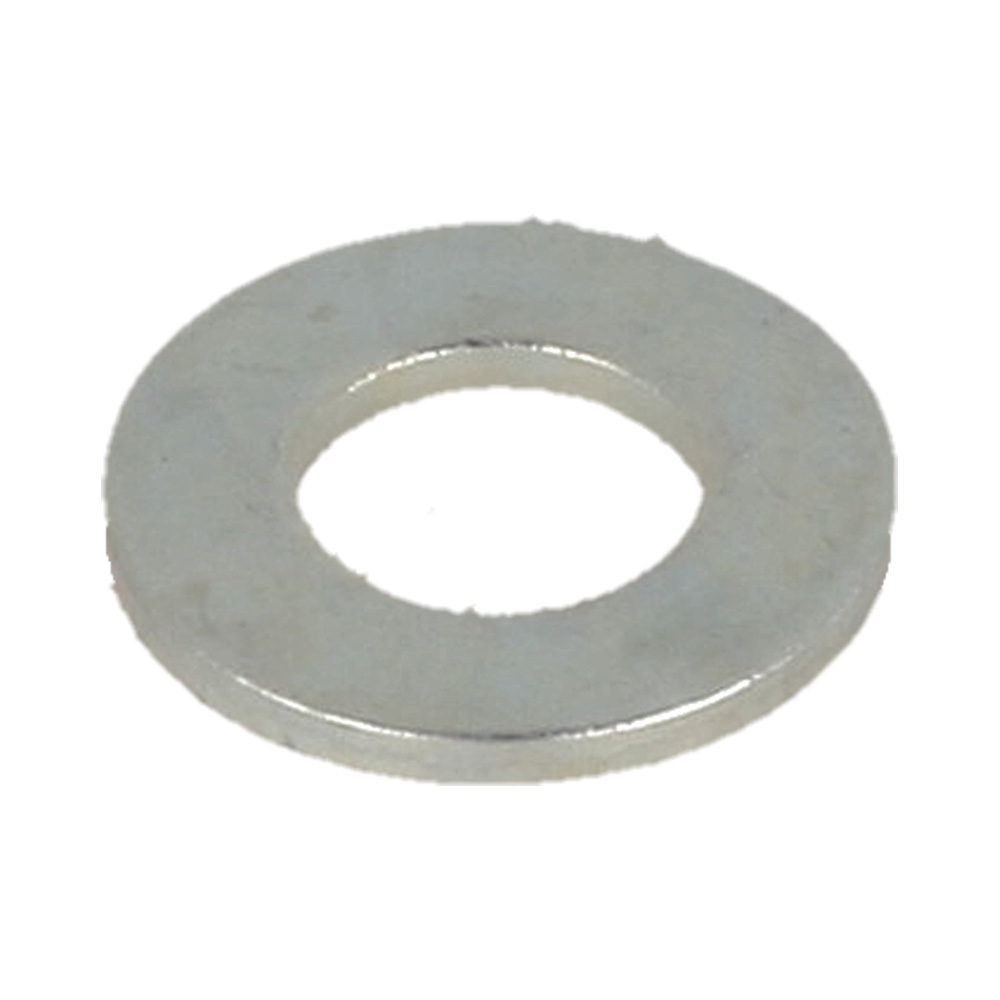

	20		EF3916004R Available to backorder	Washer		£1.66 £1.38
	21		EF2501033R Available to backorder	Ignition Coil		£21.24 £17.70

Description

Oleo-Mac GSH 400 Parts Diagram
