GS 651 - Oleo-Mac Chainsaw Engine Diagram

Description

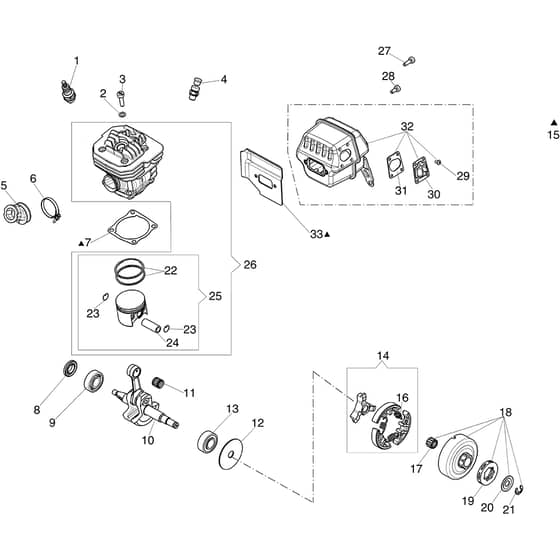

Oleo-Mac GS 651 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	8731 In stock	Spark Plug	£4.44 £3.70
2	EF3833076 Available to backorder	Washer	£0.90 £0.75
4	EF50250178R Available to backorder	Decompressor	£27.84 £23.20
5	EF50250020R Available to backorder	Manifold	£19.00 £15.83
6	EF097000059A Available to backorder	Spring	£1.84 £1.53
7	EF50010046DR Available to backorder	Gasket	£2.86 £2.38
8	EF007201313R Available to backorder	Seal Ring	£11.00 £9.17
9	EF3034012R Available to backorder	Bearing	£15.42 £12.85
11	EF3037014R Available to backorder	Bearing	£14.70 £12.25
12	EF50250062R Available to backorder	Washer	£11.36 £9.47
13	EF3035026R Available to backorder	Bearing	£26.42 £22.02
14	EF50250063R Available to backorder	Clutch	£74.28 £61.90
15	EF50252015 Available to backorder	Gasket Set	£12.16 £10.13
16	EF50250089R Available to backorder	Spring	£2.76 £2.30
17	EF3037035R Available to backorder	Thrust Bearing	£10.48 £8.73
18	EF50252016 Available to backorder	Clutch Drum	£74.28 £61.90
19	EF006100730R Available to backorder	Ring	£25.44 £21.20
20	EF50250066R Available to backorder	Spacer	£3.70 £3.08
21	EF3026009R Available to backorder	Ring	£0.72 £0.60
23	EF007201198 Available to backorder	Ring	£1.84 £1.53
24	EF50010031 Available to backorder	Piston Pin	£5.44 £4.53
25	EF50252010 Available to backorder	Piston Assy	£82.52 £68.77
26	EF50252011A Available to backorder	Complete Cylinder	£207.48 £172.90
27	EF3891038R Available to backorder	Screw	£2.80 £2.33
28	EF3891036R Available to backorder	Screw	£1.37 £1.14

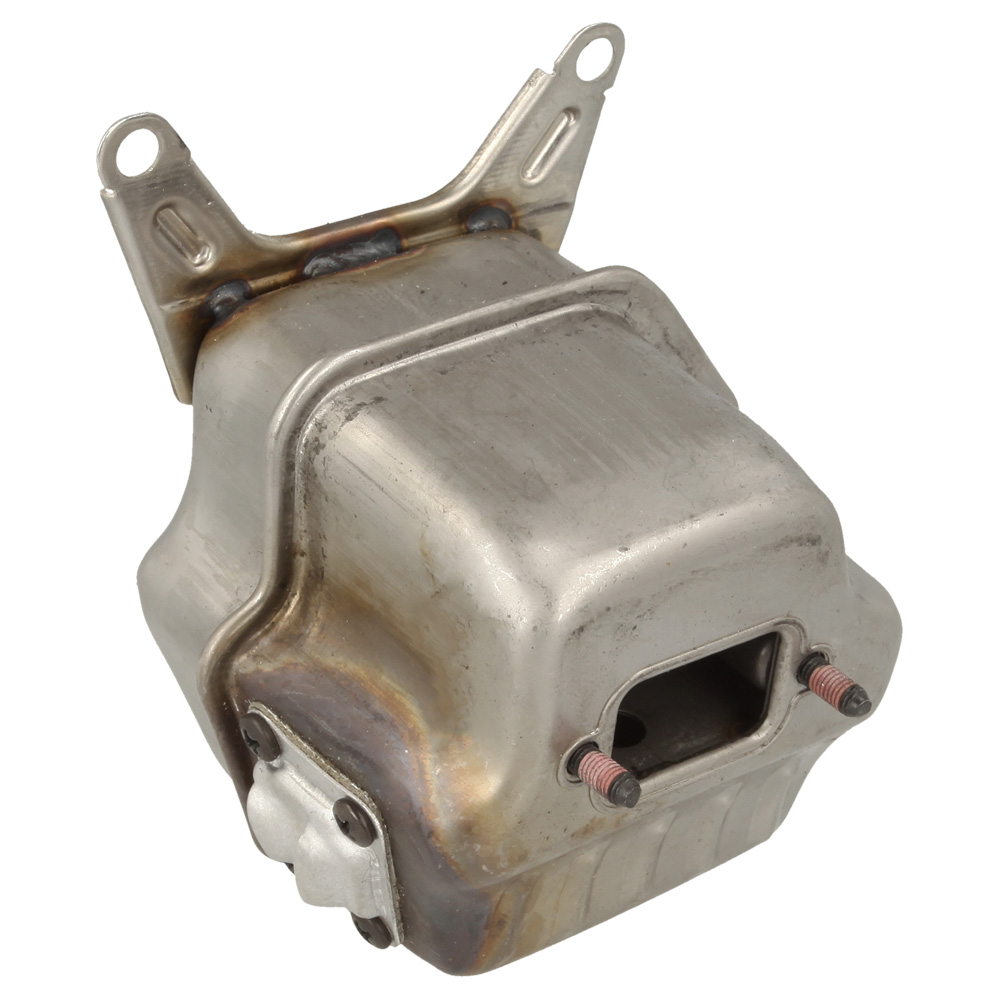

32	EF50250283R Available to backorder	Complete Muffler	£143.66 £119.72
33	EF50250081R Available to backorder	Gasket	£12.14 £10.12
