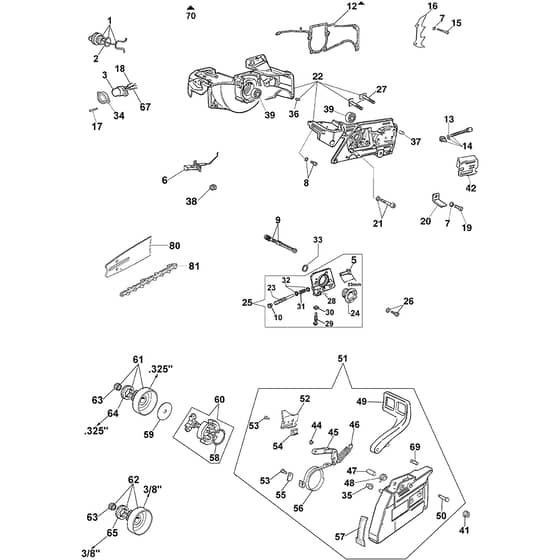

GS 630 - Oleo-Mac Chainsaw Crankcase Diagram

Name: GS 630 - Oleo-Mac Chainsaw Crankcase Diagram
SKU: gs_630_crankcase-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GS 630 - Oleo-Mac Chainsaw Crankcase Diagram

Description

Oleo-Mac GS 630 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	EF099900090R Available to backorder	Ring	£5.44 £4.53
3	EF50010032R Available to backorder	Air Purge	£21.44 £17.87
5	EF50010163 Available to backorder	Tube	£3.68 £3.07
7	EF3833073R Available to backorder	Washer	£0.90 £0.75
9	EF097000147AR Available to backorder	Oil Suction	£18.28 £15.23
10	EF097000078 Available to backorder	Cap	£0.90 £0.75
12	EF50010047AR Available to backorder	Gasket	£2.76 £2.30
13	EF50010079 Available to backorder	Clamp	£0.90 £0.75

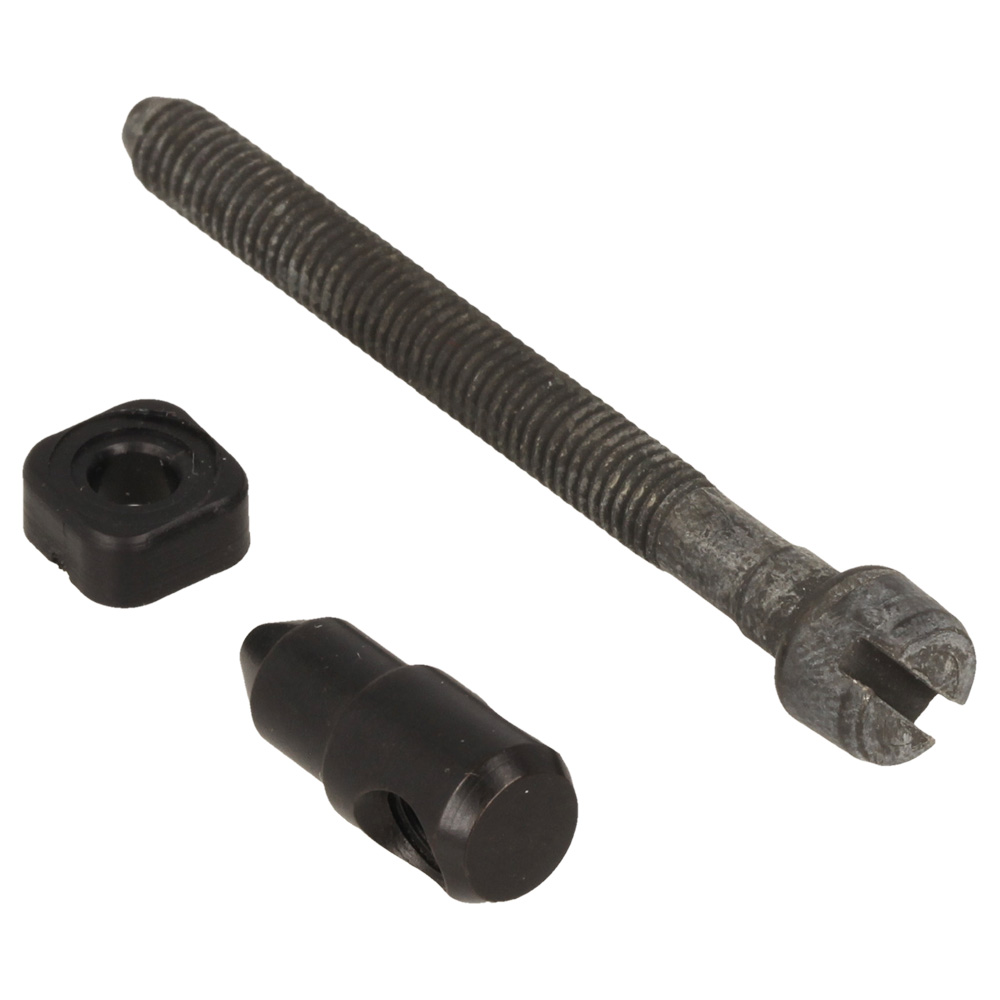

14	EF50010151 Available to backorder	Chain Tensioner	£9.98 £8.32
15	EF3891063R Available to backorder	Screw	£1.00 £0.83
16	EF50010050B Available to backorder	Spike	£8.74 £7.28
17	EF3960106 Available to backorder	Screw	£0.90 £0.75

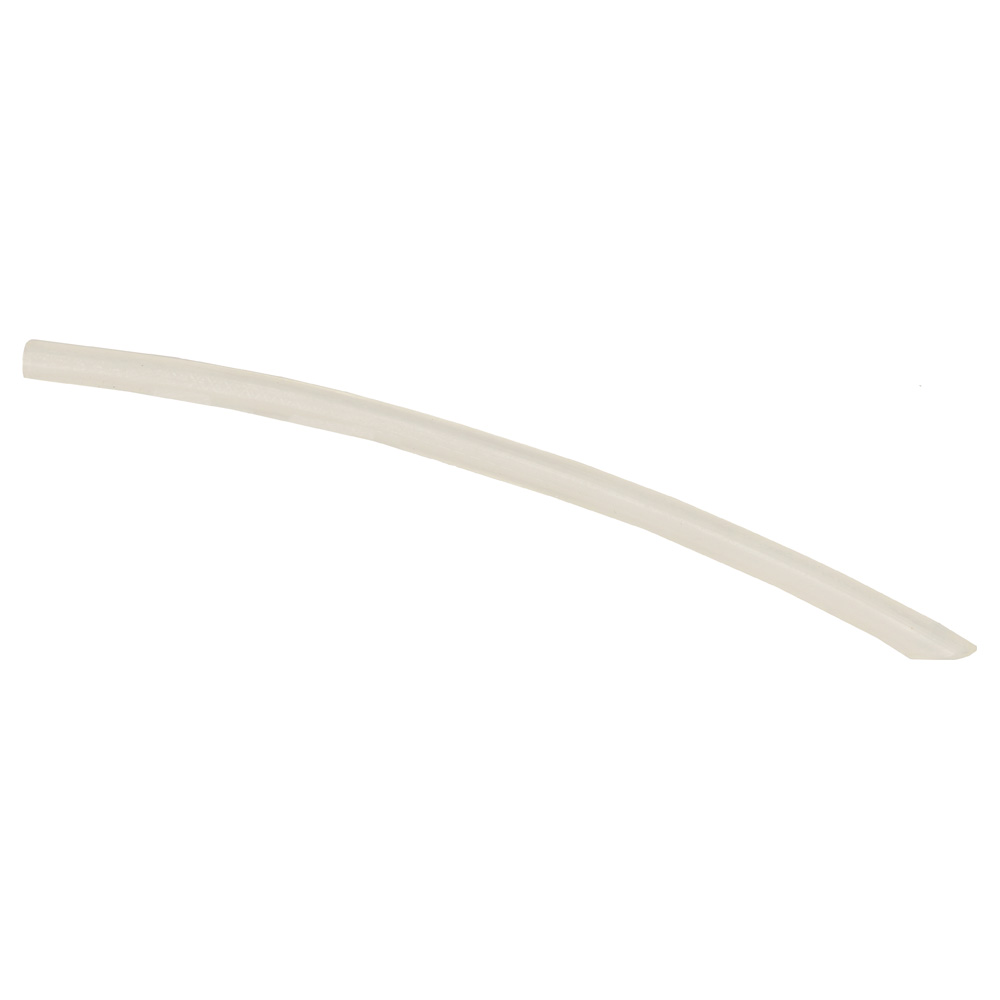

18	EF61250228R Available to backorder	Tube	£4.02 £3.35
19	EF3891036R Available to backorder	Screw	£1.37 £1.14
20	EF50250226R Available to backorder	Clamp	£3.16 £2.63
21	EF3891054R Available to backorder	Screw	£6.10 £5.08
23	EF097000069B Available to backorder	Piston Pump	£19.18 £15.98
24	EF50010036AR Available to backorder	Worm Gear	£14.00 £11.67
25	EF50012138 Available to backorder	Oil Pump	£85.66 £71.38
27	EF50010301R Available to backorder	Screw	£2.76 £2.30
28	EF097000062 Available to backorder	Plug	£0.90 £0.75
29	EF50010037 Available to backorder	Screw	£8.74 £7.28
30	EF097000068 Available to backorder	Clamp	£0.90 £0.75
31	EF097000071A Available to backorder	Spring	£1.84 £1.53
32	EF097000070 Available to backorder	Washer	£0.90 £0.75
33	EF50010044 Available to backorder	Washer	£2.76 £2.30
34	EF50010175 Available to backorder	Guard	£1.84 £1.53
35	EF006000300 Available to backorder	Bushing	£0.90 £0.75
36	EF3023008 Available to backorder	Plug	£0.90 £0.75
37	EF097000229R Available to backorder	Breather Valve	£13.82 £11.52
38	EF097000057 Available to backorder	Grommet	£0.90 £0.75
39	EF3034012R Available to backorder	Bearing	£15.42 £12.85
41	EF50010148R Available to backorder	Nut	£2.00 £1.67
42	EF50010010AR Available to backorder	Plate	£5.44 £4.53
44	EF3026003 Available to backorder	Ring	£2.18 £1.82
45	EF097000146 Available to backorder	Lever	£24.58 £20.48
46	EF099900152A Available to backorder	Spring	£8.74 £7.28
47	EF097000107 Available to backorder	Plug	£3.68 £3.07
48	EF50010088AR Available to backorder	Spring	£1.84 £1.53
50	EF097000106 Available to backorder	Plug	£3.68 £3.07
52	EF50070124AR Available to backorder	Plate	£3.68 £3.07
53	EF3960045 Available to backorder	Screw	£0.90 £0.75
54	EF50070149 Available to backorder	Guard	£1.84 £1.53
55	EF50010084 Available to backorder	Plate	£1.84 £1.53
56	EF50010039 Available to backorder	Brake Band	£22.74 £18.95
57	EF50010353R Available to backorder	Deflector	£3.68 £3.07
58	EF004900137BR Available to backorder	Spring	£5.44 £4.53
59	EF375100012A Available to backorder	Washer	£5.44 £4.53
61	EF50012050 Available to backorder	Clutch Drum	£64.76 £53.97
62	EF50022034 Available to backorder	Clutch Drum	£64.74 £53.95
63	EF3037016 Available to backorder	Bearing	£18.64 £15.53
64	EF094500046R Available to backorder	Ring	£23.12 £19.27
65	EF006100730R Available to backorder	Ring	£25.44 £21.20
67	EF61350329R Available to backorder	Tube	£2.70 £2.25
69	EF50010243 Available to backorder	Pin	£3.68 £3.07
70	EF50012052B Available to backorder	Gasket Set	£21.36 £17.80
80	EF50012036R Available to backorder	Bar 18'' - 46 cm	£171.04 £142.53
80	EF50022010R Available to backorder	Bar 18'' - 46 cm	£167.66 £139.72
80	EF50022011R Available to backorder	Bar 20'' - 51 cm	£122.94 £102.45
81	4346 In stock	WAR TEC Chain 3/8'' - 058'' (1.5mm) - 68 Links	£11.95 £9.96
81	ST3622 000 0072 In stock	STIHL Chain 3/8'' - 058'' (1.5mm) - 72 Links	£32.17 £26.81
81	4347 In stock	WAR TEC Chain 3/8'' - 058'' (1.5mm) - 72 Links	£12.50 £10.42

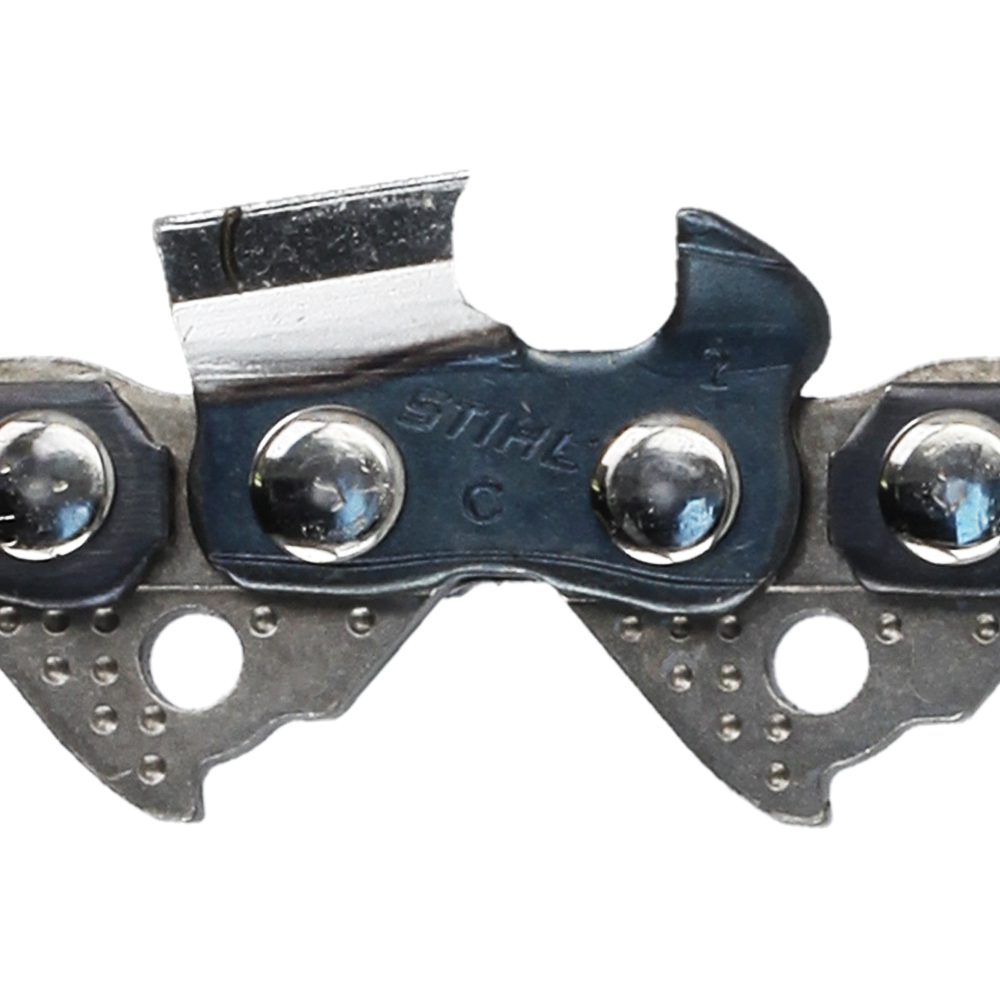

81	ST3638 000 0072 In stock	STIHL Chain 325'' - 058'' (1.5mm) - 72 Links	£28.82 £24.02
81	5058 In stock	WAR TEC Chain 325'' - 058'' (1.5mm) - 72 Links	£11.70 £9.75
81	ST3622 000 0068 In stock	STIHL Chain 3/8'' - 058'' (1.5mm) - 68 Links	£31.12 £25.93
