GS 520 - Oleo-Mac Chainsaw Chain Cover Diagram

Name: GS 520 - Oleo-Mac Chainsaw Chain Cover Diagram
SKU: gs_520_chain_cover-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

GS 520 - Oleo-Mac Chainsaw Chain Cover Diagram

Description

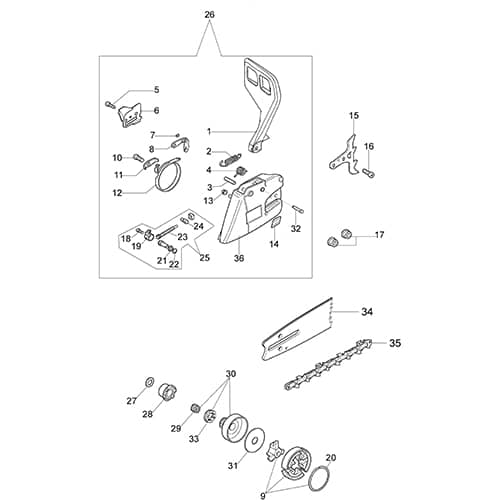

Oleo-Mac GS 520 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EF50070095A Available to backorder	Guard	£20.60 £17.17
2	EF095000219AR Available to backorder	Spring	£5.44 £4.53
3	EF097000107 Available to backorder	Plug	£3.68 £3.07
4	EF50010088AR Available to backorder	Spring	£1.84 £1.53
5	EF3960045 Available to backorder	Screw	£0.90 £0.75
6	EF50070124AR Available to backorder	Plate	£3.68 £3.07
7	EF3026003 Available to backorder	Ring	£2.18 £1.82
8	EF097000146 Available to backorder	Lever	£24.58 £20.48
11	EF50050125R Available to backorder	Plate	£2.16 £1.80

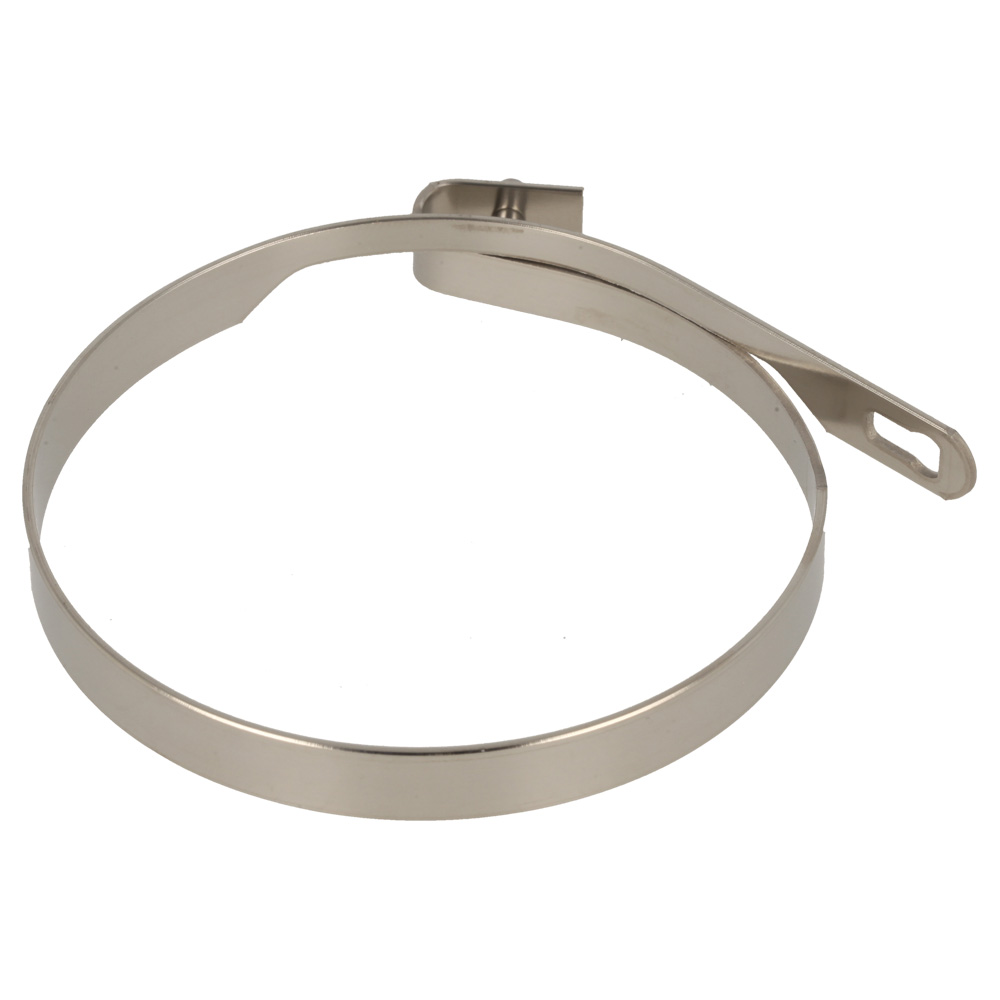

12	EF50050039R In stock	Brake Band	£25.74 £21.45
13	EF006000300 Available to backorder	Bushing	£0.90 £0.75
14	EF50070149 Available to backorder	Guard	£1.84 £1.53
15	EF50070033 Available to backorder	Spike	£11.04 £9.20
16	EF3993070 Available to backorder	Screw	£1.60 £1.33
17	EF50010148R Available to backorder	Nut	£2.00 £1.67
18	EF3960093 Available to backorder	Screw	£0.90 £0.75
19	EF50070081 Available to backorder	Cover	£1.84 £1.53

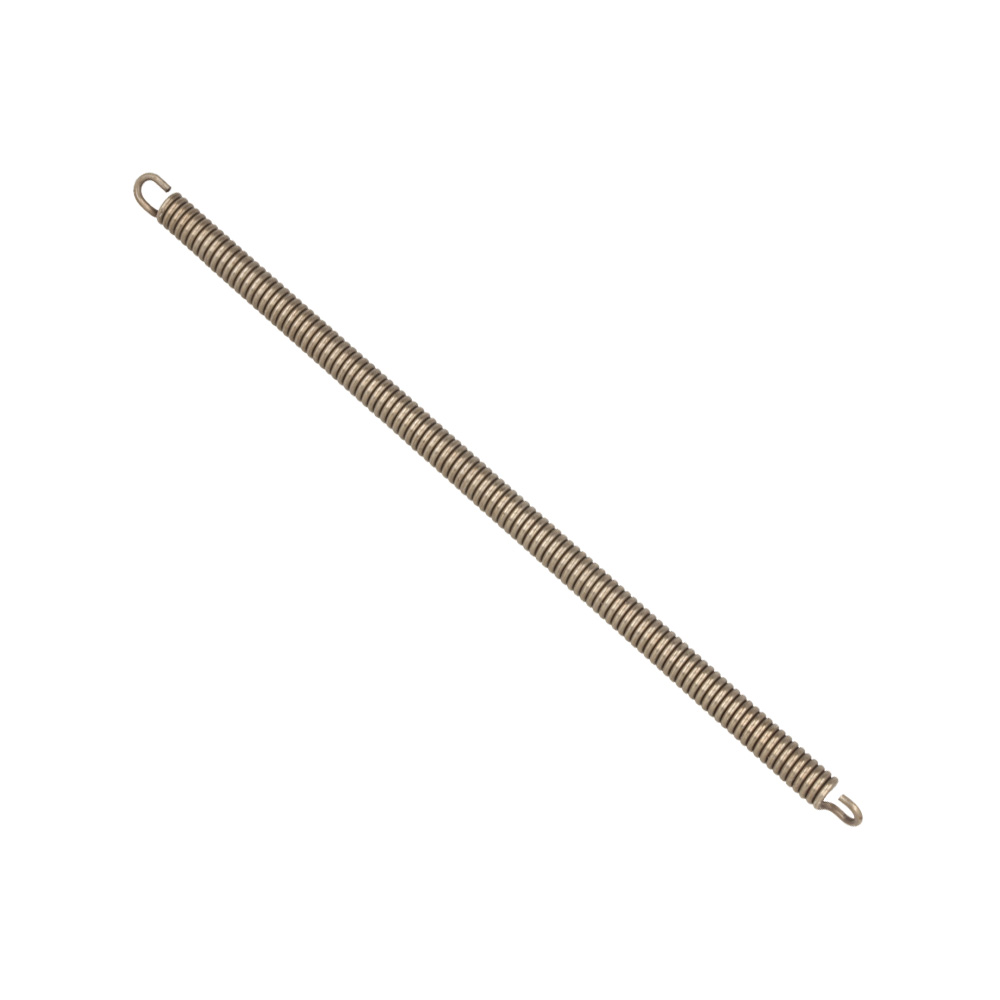

20	EF094500029AR Available to backorder	Spring	£5.44 £4.53
21	EF50070088 Available to backorder	Washer	£0.90 £0.75
22	EF3049007 Available to backorder	O-Ring	£0.90 £0.75
23	EF50070080 Available to backorder	Chain Tensioner Screw	£19.44 £16.20
24	EF50070087AR Available to backorder	Adjuster Nut	£3.68 £3.07
25	EF50072027A Available to backorder	Chain Tensioner Kit	£28.16 £23.47
26	EF50072060CR Available to backorder	Chain Cover Assy	£164.66 £137.22
27	EF50070069 Available to backorder	Washer	£0.90 £0.75
28	EF50070025R Available to backorder	Worm Gear	£8.74 £7.28
29	EF005000165R Available to backorder	Bearing	£11.40 £9.50
30	EF50080023 Available to backorder	Chain Sprocket .325	£49.74 £41.45
31	EF375100012A Available to backorder	Washer	£5.44 £4.53
32	EF097000106 Available to backorder	Plug	£3.68 £3.07
33	EF094500046R Available to backorder	Ring	£23.12 £19.27
34	EF094600275R Available to backorder	Bar 16'' - 41 cm	£62.38 £51.98
34	EF094600285R Available to backorder	Bar 18'' - 46 cm	£68.34 £56.95
35	4253 In stock	WAR TEC Chain 325'' - 058'' (1.5mm) - 66 Links	£10.94 £9.12
35	EF001000710R Available to backorder	Chain .325'' X .058'' (1.5mm)	£42.00 £35.00
35	5058 In stock	WAR TEC Chain 325'' - 058'' (1.5mm) - 72 Links	£11.70 £9.75
35	ST3638 000 0072 In stock	STIHL Chain 325'' - 058'' (1.5mm) - 72 Links	£28.82 £24.02

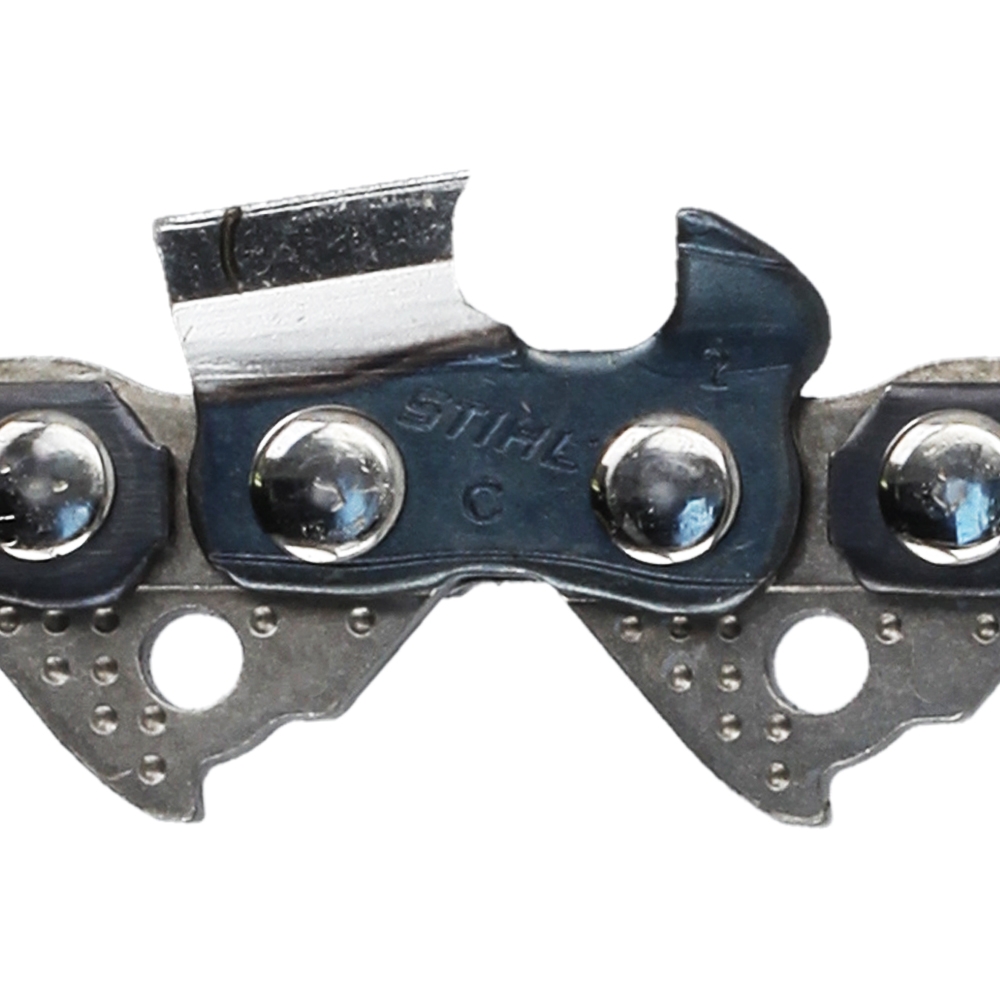

35	ST3638 000 0066 In stock	STIHL Chain 325'' - 058'' (1.5mm) - 66 Links	£19.80 £16.50
36	EF50070084BR Available to backorder	Chain Cover	£45.06 £37.55
