GRANNG-RDEN MULCH 50S - 2009-2010 - 291502023/GRN - Stiga Rotary Mower Transmission Diagram

Description

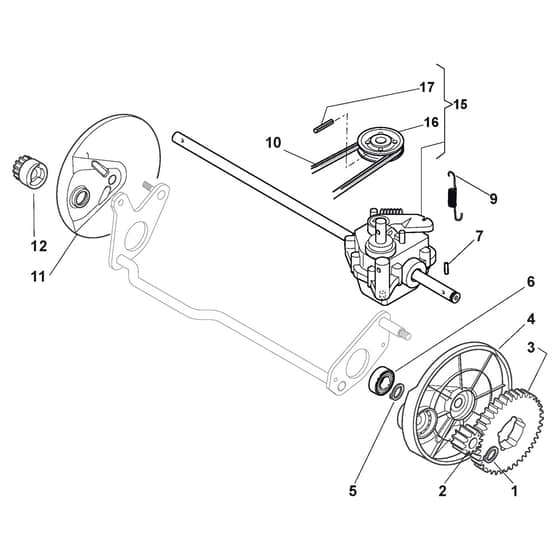

Stiga GRANNG-RDEN MULCH 50S Parts Diagram

Product Name - GRANNG-RDEN MULCH 50S

Model Year - 2009-2010

Model Type - MCS 504 TR

Art.N - 291502023/GRN

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
3	MO122120105/2 Available to backorder	Ring Gear From 01-9-2016	£9.92 £8.27
4	MO122600092/0 Available to backorder	Right Wheel Protection To 31-8-2012	£3.38 £2.82
5	MO112608600/0 In stock	Seeger	£1.55 £1.29
6	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
7	MO122753000/0 In stock	Pin	£1.55 £1.29
9	MO122450439/0 Available to backorder	Spring To 30-9-2017	£3.38 £2.82
9	MO122450437/0 Available to backorder	Spring From 01-10-2017	£3.10 £2.58
10	MO135064100/0 In stock	Belt From 01-9-2012 To 31-8-2016	£9.68 £8.07
10	MO135064105/0 Available to backorder	Trapezoidal Belt From 01-10-2017	£9.96 £8.30
10	MO135063902/1 In stock	Belt From 01-9-2016 To 30-9-2017	£9.49 £7.91
11	MO122600093/0 Available to backorder	Left Wheel Protection To 31-8-2012	£3.38 £2.82
11	MO322600267/0 Available to backorder	Protection. Wheel From 01-9-2012	£6.05 £5.04
12	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
15	MO181003122/0 Available to backorder	Gear Box From 01-9-2016 To 30-9-2017	£77.66 £64.72
15	MO181003095/0 Available to backorder	Gear Box To 31-8-2012	£95.74 £79.78
15	MO181003109/1A Available to backorder	Gear Box From 01-9-2014 To 31-8-2016	£163.86 £136.55
15	MO181003127/0 In stock	Gear Box Assy From 01-10-2017	£129.52 £107.93
16	MO122601909/0 In stock	Pulley From 01-9-2010	£5.64 £4.70
17	MO112645705/0 In stock	Roll Pin D.5 X 32	£1.55 £1.29
