GRANNG-RDEN MULCH 50 - 2009-2010 - 291501023/GRN - Stiga Rotary Mower Blade Diagram

Description

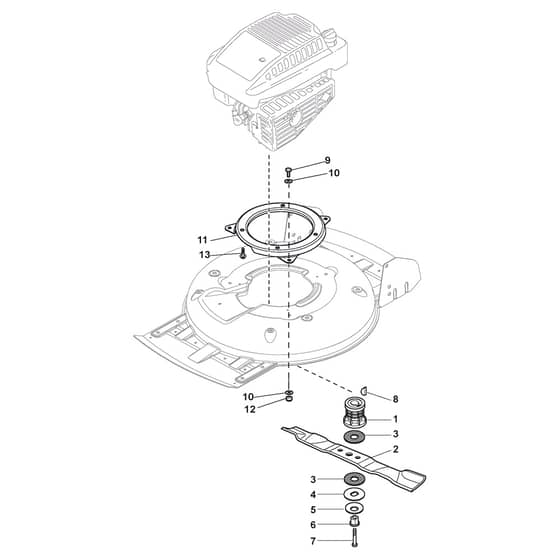

Stiga GRANNG-RDEN MULCH 50 Parts Diagram

Product Name - GRANNG-RDEN MULCH 50

Model Year - 2009-2010

Model Type - MCS 504

Art.N - 291501023/GRN

Engine Model -

	Part No.	Details
1	MO122465611/0 Available to backorder	Hub With Pulley Ø 22.2	£19.18 £15.98
2	MO181004146/0 In stock	Blade Standard	£13.44 £11.20
3	MO322672110/1 In stock	Washer	£1.84 £1.53
4	MO322672105/0 In stock	Washer	£3.55 £2.96
5	MO112508120/0 In stock	Cup Spring	£3.52 £2.93
6	MO122041940/0 Available to backorder	Bushing	£6.62 £5.52
7	MO112736850/0 Available to backorder	Screw	£2.40 £2.00
8	MO112139100/0 In stock	Key	£1.55 £1.29
9	MO112793102/0 In stock	Screw	£1.55 £1.29
10	MO112523060/0 In stock	Washer	£1.55 £1.29
11	MO322207219/1 Available to backorder	Flange	£25.76 £21.47
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO112735108/1 In stock	Telf-Form Screw 3.8" X 1¼" Unc	£2.11 £1.76
