Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Engine

Name: Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Engine
SKU: grandstand_91cm_74540te_4555412999999_engine-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Engine

Description

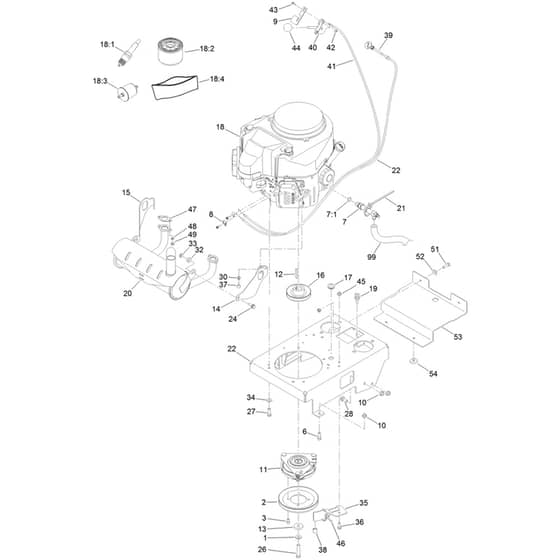

Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1-603610 Available to backorder	Spring Washer	£5.00 £4.17
2	HA119-0215 Available to backorder	Pulley	£80.14 £66.78
3	HA119-0221 Available to backorder	Hex Socket Head (Hsh) Screw	£4.66 £3.88
6	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
7	HA116-6126 Available to backorder	Valve-Drain. Oil	£64.32 £53.60
7	HA138-4636 Available to backorder	[7.1] O-Ring	£2.86 £2.38
8	HA81-1690 Available to backorder	Clamp-Cable	£3.52 £2.93
9	HA119-1883 Available to backorder	Throttle Set Plate	£46.64 £38.87
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
11	HA119-0220 Available to backorder	Clutch.Brake Assembly	£807.60 £673.00
12	HA608006 Available to backorder	Square Key	£5.12 £4.27
13	HA1-543610 Available to backorder	Washer	£7.50 £6.25
14	HA127-1901 Available to backorder	Left Hand Muffler Bracket	£33.48 £27.90
15	HA127-1902 Available to backorder	Right Hand Muffler Bracket	£33.48 £27.90
16	HA112-7067 Available to backorder	Pulley	£259.56 £216.30
17	HA112-7069 Available to backorder	Grommet	£3.94 £3.28
18	HA92-2153 In stock	[18.1] Spark Plug	£3.59 £2.99
18	HA119-5852 Available to backorder	[18.2] Oil Filter	£40.18 £33.48
18	HA120-2235 Available to backorder	[18.3] Fuel Filter	£9.44 £7.87
18	HA120-7447 Available to backorder	[18.4] Air Filter Element - Primary	£14.80 £12.33
19	HA132-4729 Available to backorder	Short Anchor Spring	£7.28 £6.07
20	HA131-1183 Available to backorder	Muffler	£258.00 £215.00
21	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
22	HA134-2760-01 Available to backorder	Engine Cover	£327.84 £273.20
24	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
26	HA3212-9 Available to backorder	Hex Head (Hh) Screw	£14.34 £11.95
27	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
28	HA323-12 Available to backorder	Carriage Bolt	£1.80 £1.50
30	HA3253-4 Available to backorder	Lock Washer	£0.48 £0.40
32	HA104-7658 Available to backorder	Spacer	£1.42 £1.18
33	HA32128-25 Available to backorder	Hex Flange (Hf) Nut	£3.82 £3.18
34	HA98-5975 Available to backorder	Belleville Washer	£4.84 £4.03
35	HA121-5984-03 Available to backorder	Clutch Stop Bracket	£28.70 £23.92
36	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.65 £0.54
37	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.50 £0.42
38	HA109-3765 Available to backorder	Bumper	£7.64 £6.37
39	HA106-9962 Available to backorder	Push . Pull Choke Control	£93.32 £77.77
40	HA110-5547 Available to backorder	Lever-Control	£53.36 £44.47
41	HA119-1882 Available to backorder	Control Cable	£39.48 £32.90
42	HA32128-17 Available to backorder	Flange Lock Nut	£0.48 £0.40
43	HA110-0863 Available to backorder	Screw	£12.86 £10.72
44	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
45	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
47	HA1-653313 Available to backorder	Exhaust Gasket	£6.90 £5.75
48	HA114-3550 Available to backorder	Lock Washer	£1.56 £1.30
49	HA114-3549 Available to backorder	Nut	£3.22 £2.68
51	HA322-16 Available to backorder	Hex Head (Hh) Screw	£4.06 £3.38
52	HA3290-456 Available to backorder	Belleville Washer	£2.56 £2.13
53	HA134-3300-01 Available to backorder	Engine Protector Bracket	£95.62 £79.68
54	HA109-9233 Available to backorder	Bumper-Push-In. Rubber	£5.84 £4.87
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.16 £10.97
