Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Electrical

Name: Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Electrical
SKU: grandstand_91cm_74540te_4555412999999_electrical-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_91cm_74540te_4555412999999_electrical-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Electrical

Description

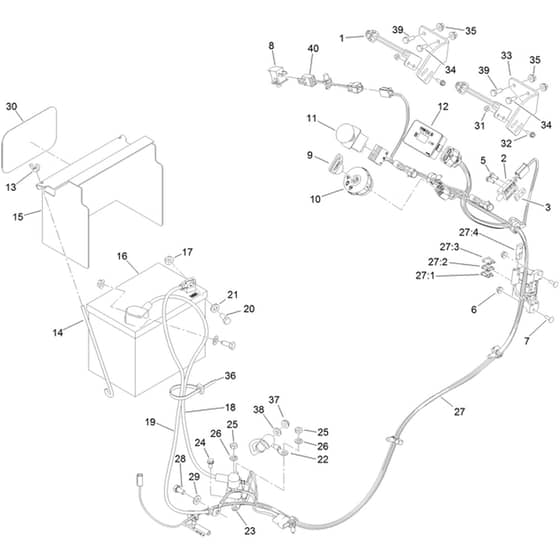

Toro GrandStand 91cm - 74540TE (405550000 - 412999999) Electrical Parts Diagram

	Part No.	Details
1	HA105-0023 Available to backorder	Proximity Switch	£161.40 £134.50
2	HA1-513152 Available to backorder	Switch-Closed. Normally	£16.08 £13.40
3	HA1-633181 Available to backorder	Plate-Tapped	£7.54 £6.28
5	HA32105-2 Available to backorder	Shwh Screw	£4.32 £3.60
6	HA32128-17 Available to backorder	Flange Lock Nut	£0.43 £0.36
7	HA1-807533 Available to backorder	Carriage Bolt	£1.72 £1.43
8	HA82-2190 Available to backorder	Bail Switch	£17.32 £14.43
9	HA63-8360 Available to backorder	Ignition Key	£6.56 £5.47
10	HA137-4101 Available to backorder	Ignition Switch	£39.58 £32.98
11	HA114-0279 Available to backorder	Pto Switch - On.On	£65.76 £54.80
12	HA117-3886 Available to backorder	Hour Meter Module	£288.84 £240.70
13	HA1-543792 Available to backorder	Wingnut	£7.03 £5.86
14	HA1-633651 Available to backorder	Bolt-Holddown	£8.52 £7.10
15	HA117-0543-01 Available to backorder	Battery Cover	£139.92 £116.60
17	HA109-5715 Available to backorder	Nut-Hf	£0.62 £0.52
18	HA120-6442 Available to backorder	Positive Battery Cable	£38.36 £31.97
19	HA103-0705 Available to backorder	Cable-Ground. Negative	£22.26 £18.55
20	HA322-3 Available to backorder	Hex Head (Hh) Screw	£0.97 £0.81
21	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
22	HA106-8268 Available to backorder	Red Battery Cable	£43.31 £36.09
23	HA117-1197 Available to backorder	Solenoid	£53.21 £44.34
24	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
25	HA3220-2 Available to backorder	Jam Nut	£0.85 £0.71
26	HA3253-4 Available to backorder	Lock Washer	£0.43 £0.36
27	HA119-0181 Available to backorder	Wire Harness	£373.32 £311.10
27	HA109103 Available to backorder	[27.1] Blade Fuse - 30 Amp	£7.54 £6.28
27	HA109102 Available to backorder	[27.2] Blade Fuse - 25 Amp	£8.14 £6.78
27	HA218-578 Available to backorder	[27.3] 10 Amp Blade Fuse	£3.19 £2.66
27	HA116-0053 Available to backorder	[27.4] Plug Cap	£47.00 £39.17
28	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
29	HA33094-00 Available to backorder	Plain Washer	£0.43 £0.36
30	HA68-3640 Available to backorder	Decal [Logo. Toro. 5.8X3.84]	£23.75 £19.79
31	HA3296-2 Available to backorder	Lock Nut	£2.34 £1.95
32	HA32105-23 Available to backorder	Screw	£1.60 £1.33
33	HA119-8503-01 Available to backorder	Switch Mount Bracket - Red	£21.02 £17.52
34	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
35	HA32128-32 Available to backorder	Hex Head Flange (Hhf) Nut	£3.34 £2.78
36	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
37	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.43 £0.36
38	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
39	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
40	HA130-1779 Available to backorder	Wire Harness - Jumper	£43.31 £36.09
