Toro GrandStand 91cm - 74540TE (418000000 - 419999999) Platform No. 132-9402

Description

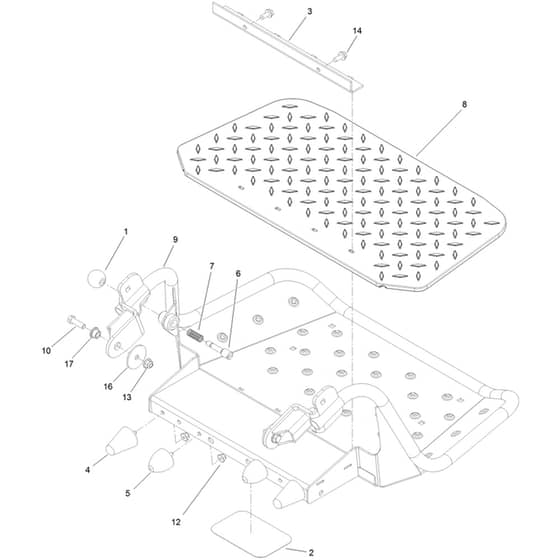

Toro GrandStand 91cm - 74540TE (418000000 - 999999999) Platform No. 132-9402 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
2	HA68-3640 Available to backorder	Decal [Logo. Toro. 5.8X3.84]	£22.96 £19.13
3	HA114-1920-03 Available to backorder	Shield Clamp	£47.86 £39.88
4	HA114-1925 Available to backorder	Rubber Bumper	£29.90 £24.92
5	HA114-1926 Available to backorder	Rubber Bumper	£32.30 £26.92
6	HA119-8650 Available to backorder	Latch Pin	£22.72 £18.93
7	HA114-5348 Available to backorder	Spring	£3.78 £3.15
8	HA126-7157 Available to backorder	Mat-Platform	£126.82 £105.68
9	HA132-9403-01 Available to backorder	Platform Assembly	£771.60 £643.00
10	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
12	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
13	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
14	HA32144-11 Available to backorder	Hex Washer Head (Hwh) Screw	£8.36 £6.97
16	HA83-1040 Available to backorder	Flat Washer	£3.62 £3.02
17	HA109-8788 Available to backorder	Flanged Bushing	£7.28 £6.07
