Toro GrandStand 91cm - 74540TE (418000000 - 419999999) Engine

Description

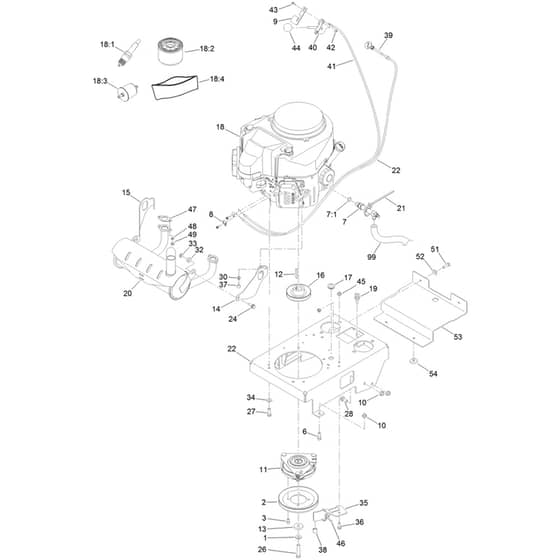

Toro GrandStand 91cm - 74540TE (418000000 - 999999999) Engine Parts Diagram

	Part No.	Details
1	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
2	HA119-0215 Available to backorder	Pulley	£80.16 £66.80
3	HA119-0221 Available to backorder	Hex Socket Head (Hsh) Screw	£4.82 £4.02
6	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
7	HA116-6126 Available to backorder	Valve-Drain. Oil	£63.84 £53.20
7	HA138-4636 Available to backorder	[7.1] O-Ring	£2.96 £2.47
8	HA81-1690 Available to backorder	Clamp-Cable	£3.83 £3.19
9	HA119-1883 Available to backorder	Throttle Set Plate	£48.25 £40.21
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
11	HA119-0220 Available to backorder	Clutch.Brake Assembly	£747.20 £622.67
12	HA608006 Available to backorder	Square Key	£5.29 £4.41
13	HA1-543610 Available to backorder	Clutch Washer	£8.14 £6.78
14	HA127-1901 Available to backorder	Left Hand Muffler Bracket	£34.63 £28.86
15	HA127-1902 Available to backorder	Right Hand Muffler Bracket	£34.63 £28.86
16	HA112-7067 Available to backorder	Pulley	£276.48 £230.40
17	HA112-7069 Available to backorder	Grommet	£4.08 £3.40
19	HA132-4729 Available to backorder	Short Anchor Spring	£7.54 £6.28
18	HA92-2153 In stock	[18.1] Spark Plug	£3.76 £3.13
18	HA119-5852 Available to backorder	[18.2] Oil Filter	£43.91 £36.59
18	HA120-2235 Available to backorder	[18.3] Fuel Filter	£9.77 £8.14
18	HA120-7447 Available to backorder	[18.4] Air Filter Element - Primary	£16.16 £13.47
20	HA131-1183 Available to backorder	Muffler	£305.76 £254.80
21	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
22	HA134-2760-01 Available to backorder	Engine Cover	£372.72 £310.60
24	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
26	HA3212-9 Available to backorder	Hex Head (Hh) Screw	£14.83 £12.36
27	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
28	HA323-12 Available to backorder	Carriage Bolt	£1.94 £1.62
30	HA3253-4 Available to backorder	Lock Washer	£0.43 £0.36
32	HA104-7658 Available to backorder	Spacer	£1.22 £1.02
33	HA32128-25 Available to backorder	Hex Flange (Hf) Nut	£3.95 £3.29
34	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
35	HA121-5984-03 Available to backorder	Clutch Stop Bracket	£29.69 £24.74
36	HA322-5 Available to backorder	Hex Head (Hh) Screw	£0.58 £0.48
37	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
38	HA109-3765 Available to backorder	Bumper	£7.91 £6.59
39	HA106-9962 Available to backorder	Push . Pull Choke Control	£93.36 £77.80
40	HA110-5547 Available to backorder	Lever-Control	£56.81 £47.34
41	HA119-1882 Available to backorder	Control Cable	£40.84 £34.03
42	HA32128-17 Available to backorder	Flange Lock Nut	£0.43 £0.36
43	HA3274-39 Available to backorder	Hex Socket Button Head (Hsbh) Screw	£7.45 £6.21
44	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
45	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
47	HA1-653313 Available to backorder	Exhaust Gasket	£7.31 £6.09
48	HA114-3550 Available to backorder	Lock Washer	£1.66 £1.38
49	HA114-3549 Available to backorder	Nut	£3.34 £2.78
51	HA322-16 Available to backorder	Hex Head (Hh) Screw	£4.20 £3.50
52	HA3290-456 Available to backorder	Belleville Washer	£2.56 £2.13
53	HA134-3300-01 Available to backorder	Engine Protector Bracket	£101.40 £84.50
54	HA109-9233 Available to backorder	Bumper-Push-In. Rubber	£6.04 £5.03
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.61 £11.34
