Toro GrandStand 91cm - 74540TE (413000000 - 417999999) Deck

Description

Toro GrandStand 91cm - 74540TE (413000000 - 417999999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA51-4060 Available to backorder	Blade Screw	£8.84 £7.37
2	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
3	HA92-7099 Available to backorder	Idler Pulley	£76.56 £63.80
4	HA103-0865 Available to backorder	Washer-Blade Bolt. Heavy	£7.98 £6.65
5	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45

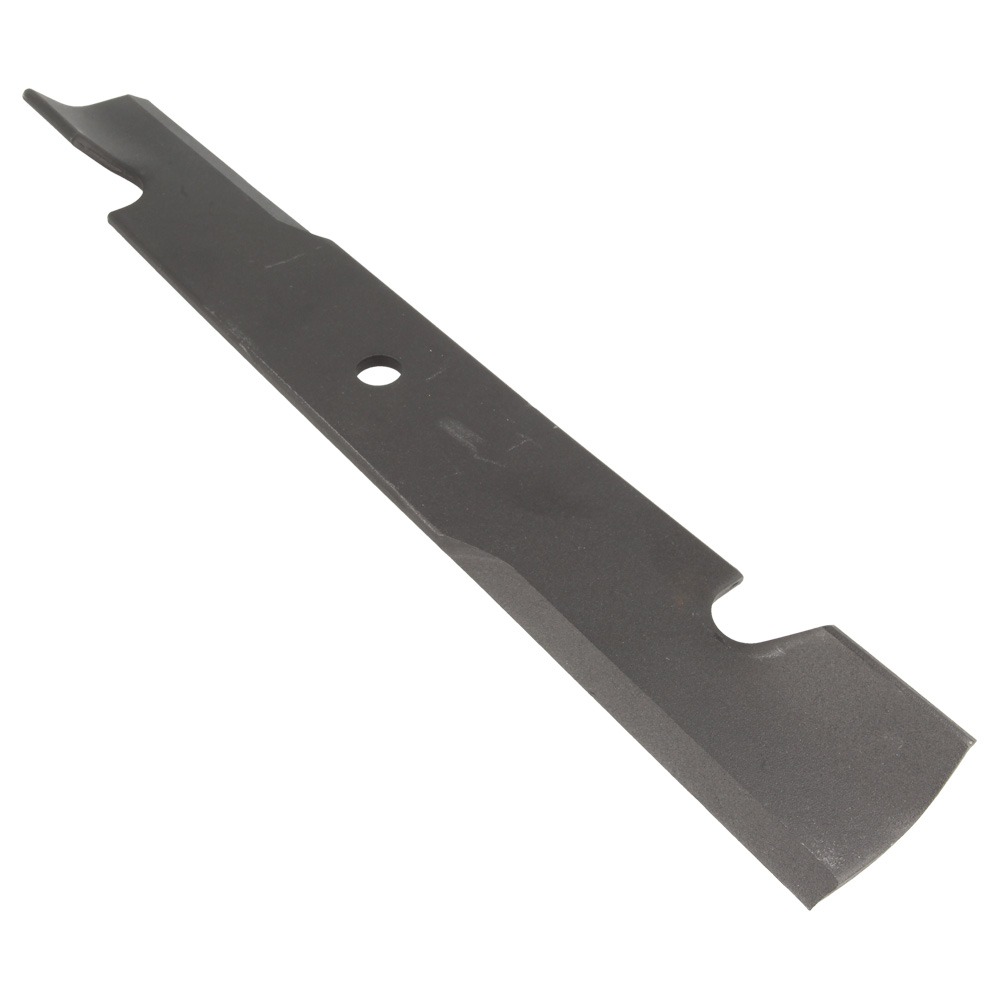

7	HA105-7781-03 In stock	18 Inch Hi Flow Blade	£27.50 £22.92
9	HA119-0394 Available to backorder	Extension Spring	£42.32 £35.27
10	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
14	HA117-7638 Available to backorder	Spindle Assembly	£532.80 £444.00
15	HA134-3397 Available to backorder	91 cm Grandstand Deck V-Belt	£84.94 £70.78
17	HA134-3657 Available to backorder	36 Inch Deck Assembly	£2,253.60 £1,878.00
19	HA119-0180 Available to backorder	Idler Arm Assembly	£199.92 £166.60
19	HA33-3090 Available to backorder	[19.2] 0.94 Inch X 1.129 Inch X 0.883 Inch Flanged Special Bushing	£12.06 £10.05
19	HA302-11 Available to backorder	[19.3] 45 Degree Fitting	£2.44 £2.03
20	HA119-1802 Available to backorder	36 Inch Grandstand Right Hand Belt Cover	£131.60 £109.67
21	HA119-1803 Available to backorder	36 Inch Grandstand Left Hand Belt Cover	£131.60 £109.67
25	HA323-8 Available to backorder	Hex Head (Hh) Screw	£1.88 £1.57
26	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.46 £1.22
28	HA3256-24 Available to backorder	Flat Washer	£0.53 £0.44
30	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
38	HA5-0652 Available to backorder	Spacer	£8.40 £7.00

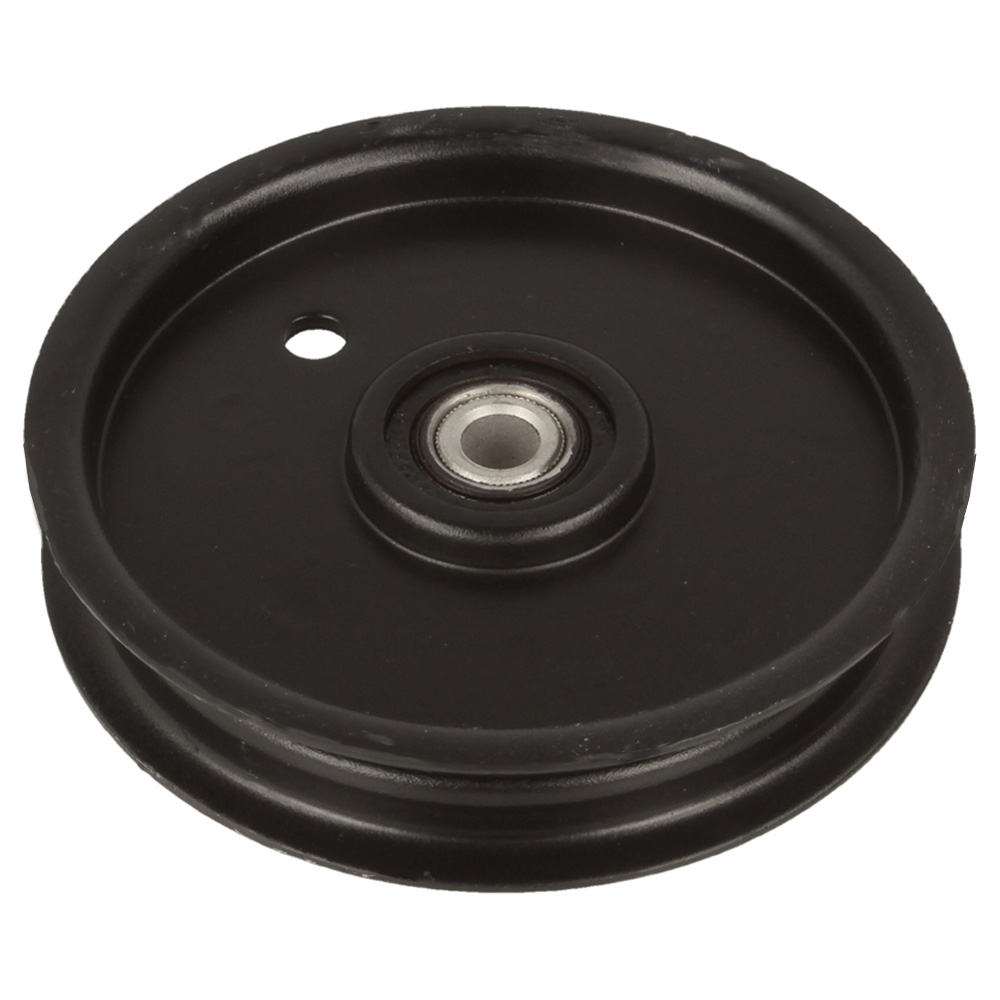

39	HA93-1622 Available to backorder	Idler Pulley	£56.22 £46.85
40	HA323-15 Available to backorder	Carriage Screw	£2.40 £2.00
41	HA1-213069 Available to backorder	Washer	£3.44 £2.87
42	HA119-0208 Available to backorder	Plain Spacer	£20.32 £16.93
43	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.00 £1.67
44	HA32105-32 Available to backorder	Threaded To Head (Tth) Screw	£1.54 £1.28
46	HA32148-6 Available to backorder	Clinch Nut	£1.94 £1.62
49	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
50	HA131-1506-01 Available to backorder	Center Deck Guard	£19.12 £15.93
51	HA131-1497-01 Available to backorder	Left Hand (Lh) Deck Guard	£95.70 £79.75
52	HA107069 Available to backorder	Clip	£2.14 £1.78
53	HA120-7950 Available to backorder	Screw ( Ref 53 & 34)	£2.14 £1.78
54	HA73-0041 Available to backorder	Thrust Washer (Ref 54 & 35)	£2.34 £1.95
55	HA32144-44 Available to backorder	Hex Washer Head (Hwh) Screw	£1.66 £1.38
56	HA131-1498-01 Available to backorder	Right Hand 36 Inch Deck Guard	£95.70 £79.75
57	HA131-1495-01 Available to backorder	Plate Guard	£25.12 £20.93
58	HA32115-15 Available to backorder	Retainer Nut (Ref 58 & 31)	£1.18 £0.98
59	HA119-8952 Available to backorder	Washer	£0.72 £0.60
60	HA134-2819 Available to backorder	Rear Flap	£38.54 £32.12
63	HA134-3733-01 Available to backorder	Bracket Assembly - Red	£144.22 £120.18
64	HA3230-10 Available to backorder	Carriage Bolt	£0.96 £0.80
