Toro GrandStand 91cm - 74534TE (405600000 - 412999999) Traction Drive

Description

Toro GrandStand 91cm - 74534TE (405600000 - 412999999) Traction Drive Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	HA103-1948 Available to backorder	Cap-Reservoir. Hyd	£20.32 £16.93
1	HA114-3494 Available to backorder	Toro Hydraulic Oil Filter	£19.12 £15.93
2	HA1-807272 Available to backorder	Key	£5.38 £4.48
3	HA100-4887 Available to backorder	Fitting-Elbow. 90[-6 Bead. -6 Morb Adj]	£29.62 £24.68
4	HA103-1807 Available to backorder	Fitting-Barbed. 45 Deg	£32.30 £26.92
5	HA353-212 Available to backorder	6 Mjic - 6 Morb. 45 Degree (86011)	£26.46 £22.05
6	HA103-1988 Available to backorder	Hose Clamp	£0.98 £0.82
7	HA104-1171 Available to backorder	Hydraulic Motor Assembly	£878.40 £732.00
8	HA104-7836 Available to backorder	Filter Head	£20.32 £16.93
9	HA105-0800 Available to backorder	Rear Wheel Hub Assembly	£364.80 £304.00
9	HA10-6830 Available to backorder	[9.2] Drive Type Stud	£3.02 £2.52
10	HA105-5648 Available to backorder	Pump Pulley	£139.96 £116.63
11	HA107-8433 Available to backorder	Hydraulic Reservoir Assembly	£352.80 £294.00
11	HA115-4212 Available to backorder	[11.2] Warning Decal	£14.34 £11.95

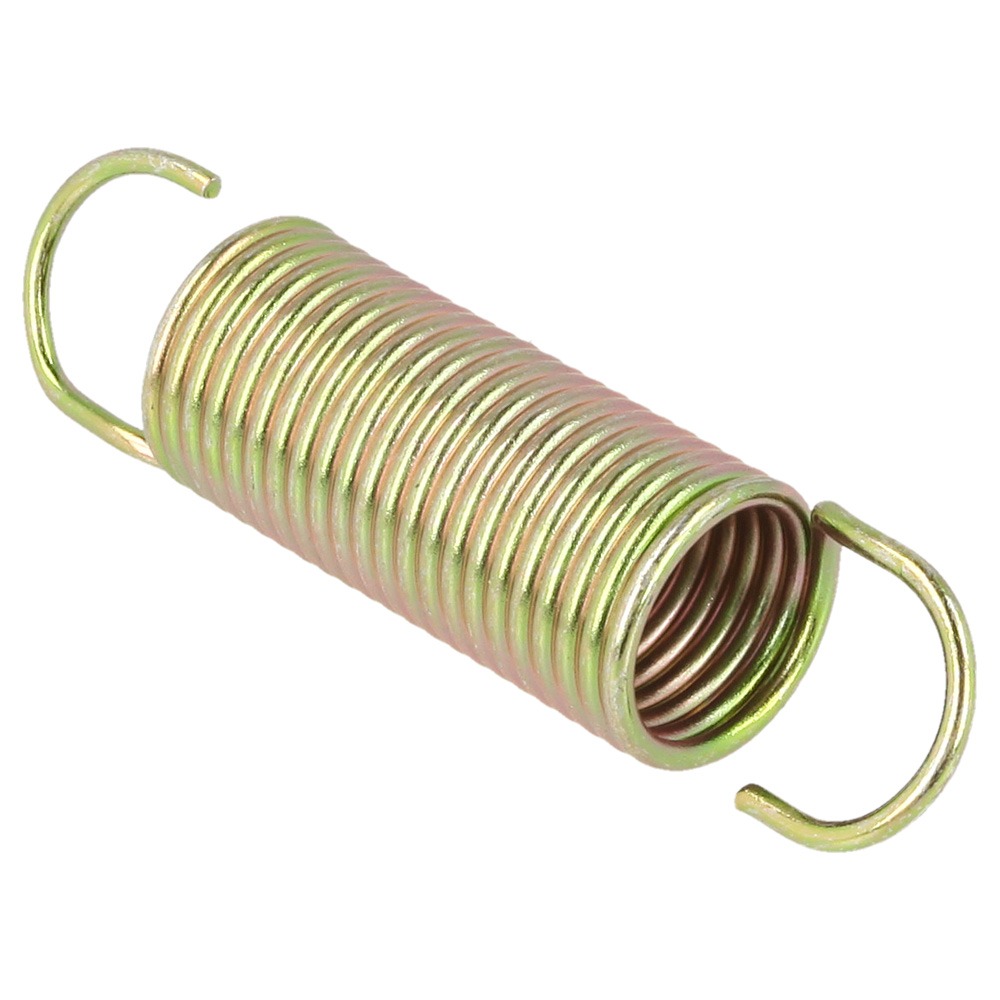

12	HA108-4056 Available to backorder	Extension Spring	£9.44 £7.87
13	HA119-0176 Available to backorder	Hydraulic Assembly	£1,240.80 £1,034.00
14	HA119-0177 Available to backorder	Hydraulic Assembly	£1,240.80 £1,034.00
15	HA117-7685 Available to backorder	Pump Idler Assembly (Service)	£229.68 £191.40
16	HA119-0174 Available to backorder	V-Belt For Grandstand Mower	£49.04 £40.87
17	HA119-8680 Available to backorder	Elbow Fitting	£39.48 £32.90
17	HA237-30 Available to backorder	[17.1] 0.489 Inch X 0.07 Inch O-Ring	£4.02 £3.35
17	HA237-80 Available to backorder	[17.2] 0.755 Inch X 0.097 Inch O-Ring	£7.30 £6.08
18	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.53 £0.44
19	HA325-10 Available to backorder	Hex Head (Hh) Screw	£2.86 £2.38
20	HA323-23 Available to backorder	Carriage Bolt	£3.24 £2.70
21	HA3241-5 Available to backorder	Set Screw	£1.15 £0.96
22	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
24	HA114-8417 Available to backorder	Nut-Hf. Ni	£1.63 £1.36
25	HA32128-23 Available to backorder	Hex Flange (Hf) Nut	£2.38 £1.98
26	HA140-4271 Available to backorder	Traction Drive Rear Wheel And Tire Assembly	£251.76 £209.80
26	HA140-1887 Available to backorder	[26.1] 8 Inch Steel Wheel With Bearings	£97.18 £80.98
26	HA116-4606 Available to backorder	[26.2] Rear Hydro Drive Tire	£240.24 £200.20
26	HA5108 Available to backorder	[26.3] Valve Stem	£10.12 £8.43
27	HA242-50 Available to backorder	Lug Nut	£1.94 £1.62
28	HA119-0173 Available to backorder	Hyd Hose Asm	£129.20 £107.67
29	HA119-8745 Available to backorder	Hyd Hose Assembly	£60.48 £50.40
30	HA119-0206 Available to backorder	Hyd Hose Assembly	£83.74 £69.78
31	HA119-0203 Available to backorder	Hydraulic Hose Assembly	£32.30 £26.92
32	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
33	HA321-6 Available to backorder	Hex Head (Hh) Screw	£0.48 £0.40
34	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
35	HA103-1802 Available to backorder	90 Degree Elbow Fitting Morb-6 Mjic-6	£27.50 £22.92
35	HA237-42 Available to backorder	[35.1] 0.468 Inch X 0.078 Inch O-Ring	£4.48 £3.73
36	HA3257-8 Available to backorder	Key-Woodruff [1.4 X 1]	£5.46 £4.55
37	HA85-7310 Available to backorder	Wheel Motor Nut	£39.18 £32.65
