Toro GrandStand 91cm - 74534TE (405600000 - 412999999) Deck

Description

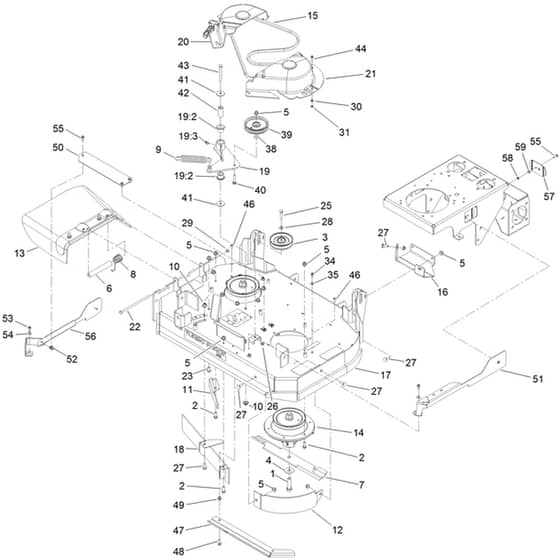

Toro GrandStand 91cm - 74534TE (405600000 - 412999999) Deck Parts Diagram

	Part No.	Details
1	HA51-4060 Available to backorder	Blade Screw	£9.40 £7.83
2	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
3	HA92-7099 Available to backorder	Idler Pulley	£78.96 £65.80
4	HA103-0865 Available to backorder	Washer-Blade Bolt. Heavy	£8.63 £7.19
5	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
6	HA105-4622 Available to backorder	Spacer	£12.35 £10.29
7	HA105-7781-03 In stock	18 Inch Hi Flow Blade	£30.76 £25.63
8	HA108-4052 Available to backorder	Torsion Spring	£29.69 £24.74
9	HA119-0394 Available to backorder	Extension Spring	£46.60 £38.83
10	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
11	HA110-0754-01 Available to backorder	Discharge Baffle	£45.79 £38.16
12	HA110-6903-03 Available to backorder	Left Hand Baffle	£81.36 £67.80
13	HA119-2347 Available to backorder	Deflector Assembly	£366.12 £305.10
14	HA117-7638 Available to backorder	Spindle Assembly	£238.63 £198.86
15	HA117-7641 Available to backorder	Grandstand Deck Belt	£48.25 £40.21
16	HA117-7687-01 Available to backorder	Skid Plate	£82.56 £68.80
17	HA121-6015 Available to backorder	Deck Assembly	£2,087.54 £1,739.62
18	HA119-0153-03 Available to backorder	Front Baffle Assembly	£149.52 £124.60
19	HA119-0180 Available to backorder	Idler Arm Assembly	£213.00 £177.50
19	HA33-3090 Available to backorder	[19.2] 0.94 Inch X 1.129 Inch X 0.883 Inch Flanged Special Bushing	£13.18 £10.98
19	HA302-11 Available to backorder	[19.3] 45 Degree Fitting	£2.66 £2.22
20	HA119-1802 Available to backorder	36 Inch Grandstand Right Hand Belt Cover	£131.64 £109.70
21	HA119-1803 Available to backorder	36 Inch Grandstand Left Hand Belt Cover	£131.64 £109.70
22	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.81 £4.84
23	HA323-4 Available to backorder	Hex Head (Hh) Screw	£1.74 £1.45
25	HA323-8 Available to backorder	Hex Head (Hh) Screw	£2.05 £1.71
26	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.34 £1.12
27	HA323-12 Available to backorder	Carriage Bolt	£1.94 £1.62
28	HA3256-24 Available to backorder	Flat Washer	£0.48 £0.40
29	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
30	HA3256-22 Available to backorder	Flat Washer	£0.64 £0.53
38	HA5-0652 Available to backorder	Spacer	£9.17 £7.64
39	HA93-1622 Available to backorder	Idler Pulley	£58.16 £48.47
40	HA323-15 Available to backorder	Carriage Screw	£2.60 £2.17
41	HA1-213069 Available to backorder	Washer	£3.80 £3.17
42	HA119-0208 Available to backorder	Plain Spacer	£21.02 £17.52
43	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.20 £1.83
44	HA32105-32 Available to backorder	Threaded To Head (Tth) Screw	£1.60 £1.33
46	HA32148-6 Available to backorder	Clinch Nut	£2.14 £1.78
47	HA119-7839-01 Available to backorder	Deck Extender	£107.64 £89.70
48	HA3230-2 Available to backorder	Carriage Bolt	£0.80 £0.67
49	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
50	HA131-1506-01 Available to backorder	Center Deck Guard	£19.78 £16.48
51	HA131-1497-01 Available to backorder	Left Hand (Lh) Deck Guard	£95.76 £79.80
52	HA107069 Available to backorder	Clip	£2.21 £1.84
53	HA120-7950 Available to backorder	Screw ( Ref 53 & 34)	£2.21 £1.84
54	HA73-0041 Available to backorder	Thrust Washer (Ref 54 & 35)	£2.48 £2.07
55	HA32144-44 Available to backorder	Hex Washer Head (Hwh) Screw	£1.72 £1.43
56	HA131-1498-01 Available to backorder	Right Hand 36 Inch Deck Guard	£95.76 £79.80
57	HA131-1495-01 Available to backorder	Plate Guard	£25.99 £21.66
58	HA32115-15 Available to backorder	Retainer Nut (Ref 58 & 31)	£1.18 £0.98
59	HA119-8952 Available to backorder	Washer	£0.64 £0.53
