Toro GrandStand 91cm - 74534TE (400000000 - 404329999) Deck

Name: Toro GrandStand 91cm - 74534TE (400000000 - 404329999) Deck
SKU: grandstand_91cm_74534te_444329999_deck-group
Price: 0.4 GBP
Availability: InStock

Part No. grandstand_91cm_74534te_444329999_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74534TE (400000000 - 404329999) Deck

Description

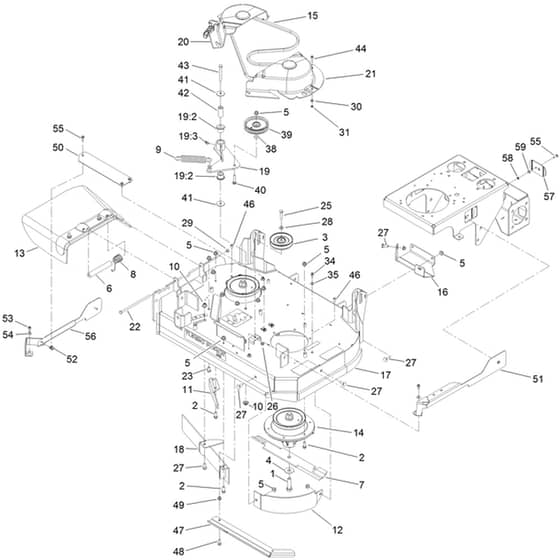

Toro GrandStand 91cm - 74534TE (400000000 - 404329999) Deck Parts Diagram

	Part No.	Details
1	HA51-4060 Available to backorder	Screw-Blade	£9.40 £7.83
2	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
3	HA92-7099 Available to backorder	Pulley-Idler	£78.96 £65.80
4	HA103-0865 Available to backorder	Washer-Blade Bolt. Heavy	£8.63 £7.19
5	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.80 £1.50
6	HA105-4622 Available to backorder	Spacer	£12.35 £10.29
7	HA105-7781-03 In stock	Blade-18In. Hi Flow	£30.76 £25.63
8	HA108-4052 Available to backorder	Spring-Torsion	£29.69 £24.74
9	HA119-0394 Available to backorder	Spring-Extension	£46.60 £38.83
10	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.09 £0.91
11	HA110-0754-01 Available to backorder	Baffle-Discharge	£45.79 £38.16
12	HA110-6903-03 Available to backorder	Baffle-Front. Lh	£81.36 £67.80
13	HA119-2347 Available to backorder	Deflector Asm	£366.12 £305.10
14	HA117-7638 Available to backorder	Spindle Asm	£238.63 £198.86
15	HA117-7641 Available to backorder	Belt-V	£48.25 £40.21
16	HA117-7687-01 Available to backorder	Plate-Skid	£82.56 £68.80
17	HA121-6015 Available to backorder	Deck And Decal Asm	£2,087.54 £1,739.62
18	HA119-0153-03 Available to backorder	Front Baffle Asm	£149.52 £124.60
19	HA119-0180 Available to backorder	Idler Arm Asm	£213.00 £177.50
19	HA33-3090 Available to backorder	[19.2] Bushing	£13.18 £10.98
19	HA302-11 Available to backorder	[19.3] Fitting-Lube. 45 Deg	£2.66 £2.22
20	HA119-1802 Available to backorder	Cover-Belt. Rh	£131.64 £109.70
21	HA119-1803 Available to backorder	Cover-Belt. Lh	£131.64 £109.70
22	HA322-50 Available to backorder	Screw-Hh	£5.81 £4.84
23	HA323-4 Available to backorder	Screw-Hh	£1.74 £1.45
25	HA323-8 Available to backorder	Screw-Hh	£2.05 £1.71
26	HA121-4600 Available to backorder	Nut-Lock. Ni	£1.34 £1.12
27	HA323-12 Available to backorder	Bolt-Carr	£1.94 £1.62
28	HA3256-24 Available to backorder	Washer-Plain	£0.48 £0.40
29	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.59 £2.16
30	HA3256-22 Available to backorder	Washer-Flat	£0.64 £0.53
38	HA5-0652 Available to backorder	Spacer	£9.17 £7.64
39	HA93-1622 Available to backorder	Pulley-Idler	£58.16 £48.47
40	HA323-15 Available to backorder	Screw-Carr	£2.60 £2.17
41	HA1-213069 Available to backorder	Washer	£3.80 £3.17
42	HA119-0208 Available to backorder	Spacer-Plain	£21.02 £17.52
43	HA323-20 Available to backorder	Screw-Hh	£2.20 £1.83
44	HA32105-32 Available to backorder	Screw-Tth	£1.60 £1.33
46	HA32148-6 Available to backorder	Nut-Clinch	£2.14 £1.78
47	HA119-7839-01 Available to backorder	Extender-Deck	£107.64 £89.70
48	HA3230-2 Available to backorder	Bolt-Carr	£0.80 £0.67
49	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.66 £0.55
50	HA131-1506-01 Available to backorder	Guard-Deck. Center	£19.78 £16.48
51	HA131-1497-01 Available to backorder	Guard-Deck. Lh	£95.76 £79.80
52	HA107069 Available to backorder	Clip	£2.21 £1.84
53	HA120-7950 Available to backorder	Screw-Torx (Ref 34 & 53)	£2.21 £1.84
54	HA73-0041 Available to backorder	Washer-Thrust (Ref 54 & 35)	£2.48 £2.07
55	HA32144-44 Available to backorder	Screw-Hwh. Thread Roll	£1.72 £1.43
56	HA131-1498-01 Available to backorder	Guard-Deck. Rh	£95.76 £79.80
57	HA131-1495-01 Available to backorder	Guard-Plate	£25.99 £21.66
58	HA32115-15 Available to backorder	Nut-Retainer ( Ref 31 & 58)	£1.18 £0.98
59	HA119-8952 Available to backorder	Washer-Spcl	£0.64 £0.53
