Toro GrandStand 91cm - 74534TE (404330000 - 405599999) Traction Drive

Description

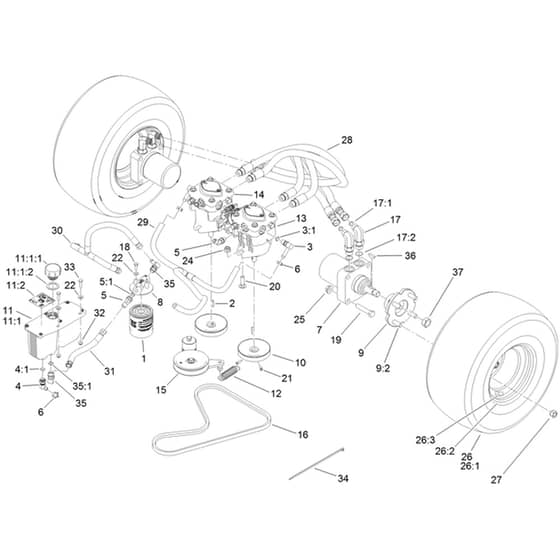

Toro GrandStand 91cm - 74534TE (404330000 - 405599999) Traction Drive Parts Diagram

	Part No.	Details
0	HA103-1948 Available to backorder	Cap-Reservoir. Hyd	£21.02 £17.52
1	HA114-3494 Available to backorder	Element-Filter. 25 Micron	£19.78 £16.48
2	HA1-807272 Available to backorder	Key	£5.57 £4.64
3	HA100-4887 Available to backorder	Fitting-Elbow. 90	£30.64 £25.53
4	HA103-1807 Available to backorder	Fitting-Barbed. 45 Deg	£33.41 £27.84
5	HA353-212 Available to backorder	Fitting-Elbow. 45 Deg	£27.37 £22.81
6	HA103-1988 Available to backorder	Clamp-Hose	£0.85 £0.71
7	HA104-1171 Available to backorder	Hyd Motor Asm	£834.10 £695.08
8	HA104-7836 Available to backorder	Head-Filter	£21.02 £17.52
9	HA105-0800 Available to backorder	Wheel Hub Asm	£337.10 £280.92
9	HA10-6830 Available to backorder	[9.2] Stud-Type. Drive	£3.31 £2.76
10	HA105-5648 Available to backorder	Pulley-Pump	£139.92 £116.60
11	HA107-8433 Available to backorder	Hyd Reservoir Asm	£316.99 £264.16
11	HA115-4212 Available to backorder	[11.2] Decal-Warning	£14.83 £12.36
12	HA108-4056 Available to backorder	Spring-Extension	£9.77 £8.14
13	HA119-0176 Available to backorder	Hydraulic Pump Asm	£1,179.30 £982.75
14	HA119-0177 Available to backorder	Hydraulic Pump Asm	£1,179.30 £982.75
15	HA117-7685 Available to backorder	Pump Idler Asm	£244.80 £204.00
16	HA119-0174 Available to backorder	Belt-V	£50.74 £42.28
17	HA119-8680 Available to backorder	Fitting-Elbow. 90	£40.84 £34.03
17	HA237-30 Available to backorder	[17.1] O-Ring	£4.28 £3.57
17	HA237-80 Available to backorder	[17.2] O-Ring	£7.55 £6.29
18	HA321-3 Available to backorder	Screw-Hh	£0.48 £0.40
19	HA325-10 Available to backorder	Screw-Hh	£3.12 £2.60
20	HA323-23 Available to backorder	Bolt-Carr	£3.56 £2.97
21	HA3241-5 Available to backorder	Screw-Set	£1.06 £0.88
22	HA3256-22 Available to backorder	Washer-Flat	£0.64 £0.53
24	HA114-8417 Available to backorder	Nut-Hf. Ni	£1.51 £1.26
25	HA32128-23 Available to backorder	Nut-Hf	£2.59 £2.16
26	HA116-4587 Available to backorder	Wheel.Tire Asm	£372.24 £310.20
26	HA116-4605 Available to backorder	[26.1] Rim-8 Inch	£167.28 £139.40
26	HA116-4606 Available to backorder	[26.2] Tire	£270.60 £225.50
26	HA5108 Available to backorder	[26.3] Stem-Valve	£10.80 £9.00
27	HA242-50 Available to backorder	Nut-Lug	£2.00 £1.67
28	HA119-0173 Available to backorder	Hyd Hose Asm	£129.24 £107.70
29	HA119-8745 Available to backorder	Hyd Hose Asm	£60.00 £50.00
30	HA119-0206 Available to backorder	Hyd Hose Asm	£83.76 £69.80
31	HA119-0203 Available to backorder	Hyd Hose Asm	£33.41 £27.84
32	HA104-7201 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
33	HA321-6 Available to backorder	Screw-Hh	£0.43 £0.36
34	HA3290-378 Available to backorder	Tie-Cable	£0.97 £0.81
35	HA103-1802 Available to backorder	Fitting-Elbow. 90 Deg	£28.45 £23.71
35	HA237-42 Available to backorder	[35.1] O-Ring (Ref 35.1 & 3.1)	£4.76 £3.97
36	HA3257-8 Available to backorder	Key-Woodruff	£5.65 £4.71
37	HA85-7310 Available to backorder	Nut-Motor. Wheel	£43.26 £36.05
