Toro GrandStand 91cm - 74534TE (418000000 - 999999999) Main Frame

Name: Toro GrandStand 91cm - 74534TE (418000000 - 999999999) Main Frame
SKU: grandstand_91cm_74534te_418999999999_main_frame-group
Price: 0.55 GBP
Availability: InStock

Part No. grandstand_91cm_74534te_418999999999_main_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74534TE (418000000 - 999999999) Main Frame

Description

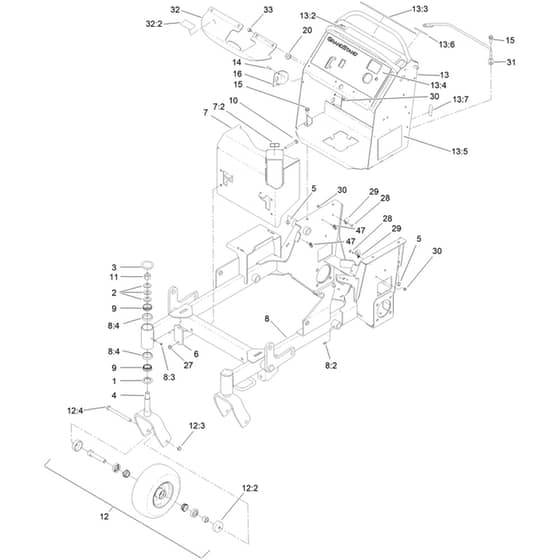

Toro GrandStand 91cm - 74534TE (418000000 - 999999999) Main Frame Parts Diagram

	Part No.	Details
1	HA116-5647 Available to backorder	Seal-Grease	£6.56 £5.47
2	HA1-633508 In stock	Belleville Washer	£5.66 £4.72
3	HA103-4882 Available to backorder	Grease Cap	£9.02 £7.52
4	HA147-6343-01 Available to backorder	Grandstand Caster Fork	£256.32 £213.60
5	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
6	HA119-7303-01 Available to backorder	Bracket Assembly - Guard [Red	£13.16 £10.97
7	HA116-8739 Available to backorder	Muffler Guard Asm	£361.44 £301.20
7	HA106-5517 Available to backorder	[7.2] Warning Decal	£4.32 £3.60
8	HA125-4650 Available to backorder	Frame Assembly	£1,812.98 £1,510.82
8	HA302-5 Available to backorder	[8.2] Grease Fitting	£1.01 £0.84
8	HA1-811010 Available to backorder	[8.3] Plug	£6.04 £5.03
8	HA1-543508 Available to backorder	[8.4] Bearing Cup	£9.02 £7.52
9	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£17.32 £14.43
10	HA3231-10 Available to backorder	Screw-Carr[.375-16X3.000.Gr5.Yz]	£2.09 £1.74
11	HA3296-51 Available to backorder	Ni Lock Nut	£5.52 £4.60
12	HA140-1890 Available to backorder	Caster Wheel And Axle Assembly	£358.32 £298.60
12	HA103-2768 Available to backorder	[12.2] Guard-Seal	£4.20 £3.50
12	HA3296-45 Available to backorder	[12.3] Hex Nut	£4.69 £3.91
12	HA325-20 In stock	[12.4] Hex Head (Hh) Screw	£8.06 £6.72
13	HA133-4665 Available to backorder	[13.6] Decal-Stability. Ce	£14.96 £12.47
13	HA119-0241 Available to backorder	[13.5] Decal-Service Aid	£25.99 £21.66
13	HA117-0454 Available to backorder	[13.2] Decal - Opc	£48.25 £40.21
13	HA139-2878 Available to backorder	[13.3] Warning Decal	£10.80 £9.00
13	HA140-4279 Available to backorder	[13.4] Decal - Panel. Control	£36.60 £30.50
13	HA147-0212 Available to backorder	[13.7] Decal - Fuse	£2.96 £2.47
14	HA1-807512 Available to backorder	Carriage Bolt	£1.60 £1.33
15	HA119-4061 Available to backorder	Screw-Hhf[3.8-16 X 1.25. Gr 5. Cz]	£1.28 £1.07
16	HA119-7312 Available to backorder	Striker Plate	£25.99 £21.66
20	HA112-7069 Available to backorder	Grommet	£4.08 £3.40
27	HA32128-21 Available to backorder	Nut-Hf Lock	£0.66 £0.55
28	HA321-4 Available to backorder	Hex Head (Hh) Screw	£1.22 £1.02
29	HA2412-87 Available to backorder	Cable Clamp	£3.58 £2.98
30	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
31	HA119-1878-03 Available to backorder	Cable Retainer	£53.21 £44.34
32	HA119-0239 Available to backorder	Tank Cover With Decal	£88.56 £73.80
32	HA116-8775 Available to backorder	[32.2] Decal-Fill. Fuel	£13.46 £11.22
33	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
47	HA32180-040 Available to backorder	Harness Clip	£2.71 £2.26
