Toro GrandStand 91cm - 74534TE (314000001 - 314999999) Engine

Description

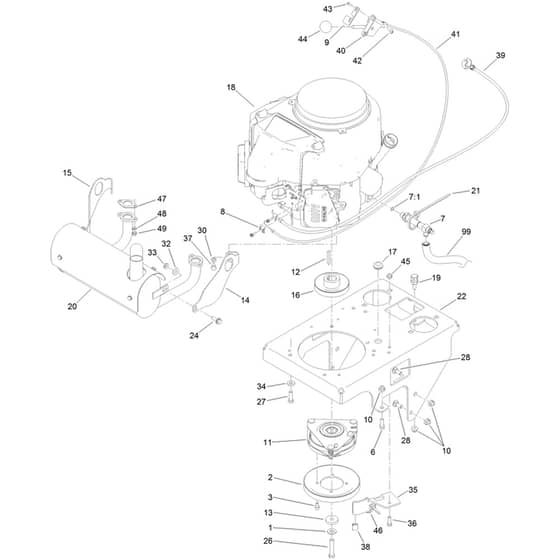

Toro GrandStand 91cm - 74534TE (314000001 - 314999999) Engine Parts Diagram

	Part No.	Details
1	HA1-603610 Available to backorder	Washer-Spring	£5.46 £4.55
2	HA119-0215 Available to backorder	Pulley	£80.16 £66.80
3	HA119-0221 Available to backorder	Screw-Hsh	£4.82 £4.02
6	HA95-1726 In stock	Screw-Hwh Thd Form	£2.21 £1.84
7	HA116-6126 Available to backorder	Valve-Drain. Oil	£63.84 £53.20
7	HA138-4636 Available to backorder	[7.1] O-Ring	£2.96 £2.47
8	HA81-1690 Available to backorder	Clamp-Cable	£3.83 £3.19
9	HA119-1883 Available to backorder	Plate-Set. Throttle	£48.25 £40.21
10	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.80 £1.50
11	HA119-0220 Available to backorder	Clutch.Brake Asm	£747.20 £622.67
12	HA608006 Available to backorder	Key-Square	£5.29 £4.41
13	HA1-543610 Available to backorder	Washer-Flat	£8.14 £6.78
14	HA116-2353 Available to backorder	Bracket-Muffler Mount. Lh	£78.96 £65.80
15	HA116-2354 Available to backorder	Bracket-Muffler Mount. Rh	£78.96 £65.80
16	HA112-7067 Available to backorder	Pulley	£276.48 £230.40
17	HA112-7069 Available to backorder	Grommet	£4.08 £3.40
19	HA132-4729 Available to backorder	Anchor-Spring. Short	£7.54 £6.28
20	HA116-2351 Available to backorder	Muffler	£469.16 £390.97
21	HA3290-378 Available to backorder	Tie-Cable (Ref 21 & 46)	£0.97 £0.81
22	HA119-0155-01 Available to backorder	Base-Engine	£318.55 £265.46
24	HA3234-29 Available to backorder	Screw-Hhf	£3.14 £2.62
26	HA3212-9 Available to backorder	Screw-Hh	£14.83 £12.36
27	HA323-7 Available to backorder	Screw-Hh	£1.12 £0.93
28	HA323-12 Available to backorder	Bolt-Carr	£1.94 £1.62
30	HA3253-4 Available to backorder	Washer-Lock	£0.43 £0.36
32	HA104-7658 Available to backorder	Spacer	£1.22 £1.02
33	HA32128-25 Available to backorder	Nut-Hf	£3.95 £3.29
34	HA98-5975 Available to backorder	Washer-Belleville	£5.32 £4.43
35	HA121-5984-03 Available to backorder	Bracket-Stop. Clutch	£29.69 £24.74
36	HA322-5 Available to backorder	Screw-Hh	£0.58 £0.48
37	HA33114-016 Available to backorder	Screw-Hh	£0.48 £0.40
38	HA109-3765 Available to backorder	Bumper	£7.91 £6.59
39	HA106-9962 Available to backorder	Control-Choke. Push.Pull	£93.36 £77.80
40	HA110-5547 Available to backorder	Lever-Control	£56.81 £47.34
41	HA119-1882 Available to backorder	Cable-Control	£40.84 £34.03
42	HA32128-17 Available to backorder	Nut-Lock. Flange	£0.43 £0.36
43	HA110-0863 Available to backorder	Screw-Tph	£13.31 £11.09
44	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
45	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.66 £0.55
47	HA1-653313 Available to backorder	Gasket-Exhaust	£7.31 £6.09
48	HA114-3550 Available to backorder	Washer-Lock	£1.66 £1.38
49	HA114-3549 Available to backorder	Nut	£3.34 £2.78
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.61 £11.34
