Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Platform No. 117-7675

Name: Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Platform No. 117-7675
SKU: grandstand_91cm_74534te_3131313999999_platform_no_117_7675-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Platform No. 117-7675

Description

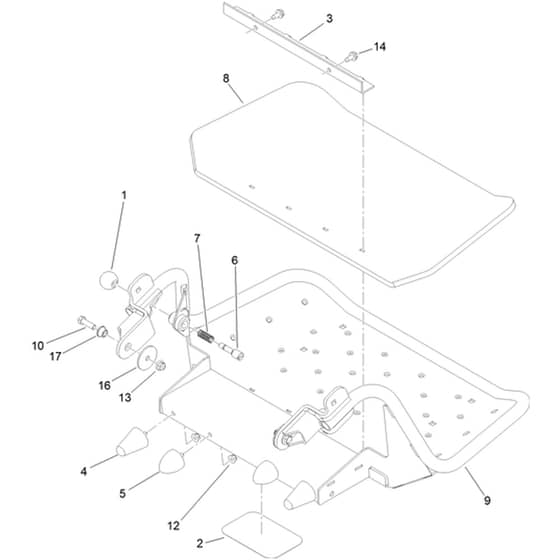

Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Platform No. 117-7675 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
2	HA68-3640 Available to backorder	Decal	£22.96 £19.13
3	HA114-1920-03 Available to backorder	Clamp-Shield	£47.86 £39.88
4	HA114-1925 Available to backorder	Bumper-Rubber	£29.90 £24.92
5	HA114-1926 Available to backorder	Bumper-Rubber	£32.30 £26.92
6	HA119-8650 Available to backorder	Pin-Latch	£22.72 £18.93
7	HA114-5348 Available to backorder	Spring	£3.78 £3.15
8	HA126-7157 Available to backorder	Mat-Foot	£126.82 £105.68
9	HA132-9403-01 Available to backorder	Platform	£771.60 £643.00
10	HA323-7 Available to backorder	Screw-Hh	£1.22 £1.02
12	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.62 £0.52
13	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.74 £1.45
14	HA32144-11 Available to backorder	Screw-Hwh	£8.36 £6.97
16	HA83-1040 Available to backorder	Washer-Flat	£3.62 £3.02
17	HA109-8788 Available to backorder	Bushing-Flanged	£7.28 £6.07
