Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Deck

Description

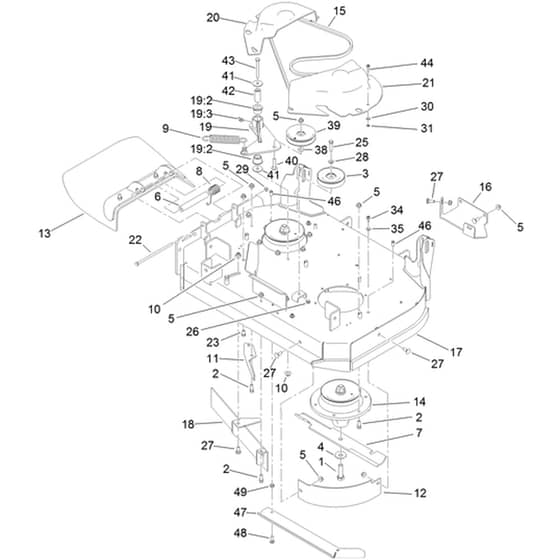

Toro GrandStand 91cm - 74534TE (313000001 - 313999999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA51-4060 Available to backorder	Screw-Blade	£8.84 £7.37
2	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
3	HA92-7099 Available to backorder	Pulley-Idler	£76.56 £63.80
4	HA103-0865 Available to backorder	Washer-Blade Bolt. Heavy	£7.98 £6.65
5	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.74 £1.45
6	HA105-4622 Available to backorder	Spacer	£11.94 £9.95
7	HA105-7781-03 In stock	Blade-18In. Hi Flow	£27.50 £22.92
8	HA108-4052 Available to backorder	Spring-Torsion	£28.70 £23.92
9	HA119-0394 Available to backorder	Spring-Extension	£42.32 £35.27
10	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
11	HA110-0754-01 Available to backorder	Baffle-Discharge	£44.26 £36.88
12	HA110-6903-03 Available to backorder	Baffle-Front. Lh	£81.34 £67.78
13	HA119-2347 Available to backorder	Deflector Asm	£317.16 £264.30
14	HA117-7638 Available to backorder	Spindle Asm	£532.80 £444.00
15	HA117-7641 Available to backorder	Belt-V	£46.64 £38.87
16	HA117-7687-01 Available to backorder	Plate-Skid	£82.54 £68.78
17	HA121-6015 Available to backorder	Deck And Decal Asm	£2,253.60 £1,878.00
18	HA119-0153-03 Available to backorder	Front Baffle Asm	£149.54 £124.62
19	HA119-0180 Available to backorder	Idler Arm Asm	£199.92 £166.60
19	HA33-3090 Available to backorder	[19.2] Bushing	£12.06 £10.05
19	HA302-11 Available to backorder	[19.3] Fitting-Lube. 45 Deg	£2.44 £2.03
20	HA119-1802 Available to backorder	Cover-Belt. Rh	£131.60 £109.67
21	HA119-1803 Available to backorder	Cover-Belt. Lh	£131.60 £109.67
22	HA322-50 Available to backorder	Screw-Hh	£5.62 £4.68
23	HA323-4 Available to backorder	Screw-Hh	£1.60 £1.33
25	HA323-8 Available to backorder	Screw-Hh	£1.88 £1.57
26	HA121-4600 Available to backorder	Nut-Lock. Ni	£1.46 £1.22
27	HA323-12 Available to backorder	Bolt-Carr	£1.80 £1.50
28	HA3256-24 Available to backorder	Washer-Plain	£0.53 £0.44
29	HA3296-29 Available to backorder	Nut-Lock. Ni	£2.50 £2.08
30	HA3256-22 Available to backorder	Washer-Flat	£0.72 £0.60
31	HA32115-15 Available to backorder	Nut-Retainer	£1.18 £0.98
34	HA120-7950 Available to backorder	Screw-Shoulder	£2.14 £1.78
35	HA73-0041 Available to backorder	Washer-Thrust	£2.34 £1.95
38	HA5-0652 Available to backorder	Spacer	£8.40 £7.00
39	HA93-1622 Available to backorder	Pulley-Idler	£56.22 £46.85
40	HA323-15 Available to backorder	Screw-Carr	£2.40 £2.00
41	HA1-213069 Available to backorder	Washer	£3.44 £2.87
42	HA119-0208 Available to backorder	Spacer-Plain	£20.32 £16.93
43	HA323-20 Available to backorder	Screw-Hh	£2.00 £1.67
44	HA32105-32 Available to backorder	Screw-Tth	£1.54 £1.28
46	HA32148-6 Available to backorder	Nut-Clinch	£1.94 £1.62
47	HA119-7839-01 Available to backorder	Extender-Deck	£107.68 £89.73
48	HA3230-2 Available to backorder	Bolt-Carr	£0.86 £0.72
49	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.62 £0.52
