Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Motion Control

Name: Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Motion Control
SKU: grandstand_91cm_74534te_3121312999999_motion_control-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_91cm_74534te_3121312999999_motion_control-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Motion Control

Description

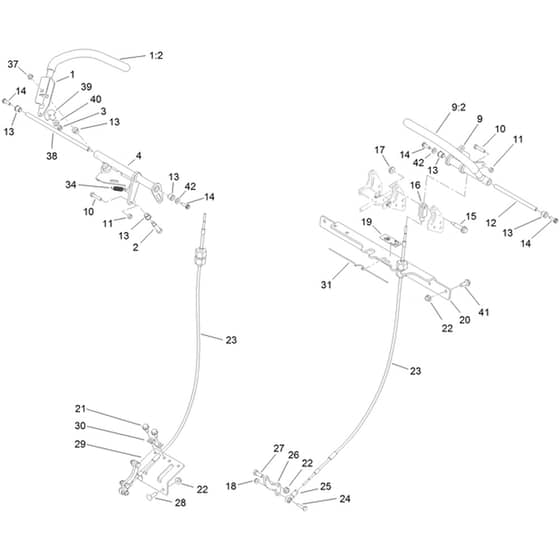

Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Motion Control Parts Diagram

	Part No.	Details
1	HA119-1887 Available to backorder	Lever-Motion. Rh	£232.68 £193.90
2	HA114-0239 Available to backorder	Screw-Hsh	£14.83 £12.36
3	HA3296-42 Available to backorder	Nut-Lock. Ni	£0.48 £0.40
4	HA117-6212 Available to backorder	Rh Motion Control Asm	£208.92 £174.10
9	HA119-1881 Available to backorder	Lh Motion Lever Asm	£261.12 £217.60
9	HA119-0222 Available to backorder	[9.2] Grip (Ref 9.2 & 1.2)	£9.89 £8.24
10	HA114-0282 Available to backorder	Screw-Hh	£5.29 £4.41
11	HA3217-5 Available to backorder	Nut-Hex	£0.43 £0.36
12	HA119-1885 Available to backorder	Shaft-Pivot. Motion Control	£25.99 £21.66
13	HA103-9928 Available to backorder	Bearing	£8.77 £7.31
14	HA80-0700 Available to backorder	Screw-Hwhtx	£2.83 £2.36
15	HA119-1857 Available to backorder	Screw-Shoulder. Hhf	£61.57 £51.31
16	HA119-1869 Available to backorder	Yoke-Female	£49.51 £41.26
17	HA114-3778 Available to backorder	Nut-Hf	£1.60 £1.33
18	HA104-7201 Available to backorder	Nut-Hf. Ni	£1.18 £0.98
19	HA119-1854 Available to backorder	Decal-Tracking. Hydro	£14.83 £12.36
20	HA117-6239-01 Available to backorder	Bracket-Cross	£69.36 £57.80
21	HA32144-70 Available to backorder	Screw-Hwhtf	£1.90 £1.58
22	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.66 £0.55
23	HA117-6225 Available to backorder	Cable Asm	£280.08 £233.40
24	HA321-6 Available to backorder	Screw-Hh	£0.43 £0.36
25	HA117-6222 Available to backorder	Rod End-Ball Joint	£27.20 £22.67
26	HA117-6204 Available to backorder	Arm-Control. Pump	£17.32 £14.43
27	HA322-4 Available to backorder	Screw-Hh	£0.60 £0.50
28	HA3230-10 Available to backorder	Bolt-Carr	£0.85 £0.71
29	HA117-6238-01 Available to backorder	Bracket-Clamp. Cable	£39.58 £32.98
30	HA93-2279 Available to backorder	Clamp-Cable	£12.20 £10.17
31	HA114-0433 Available to backorder	Clip-Spring	£30.94 £25.78
34	HA114-0249 Available to backorder	Spring-Extension	£16.08 £13.40
37	HA3296-47 Available to backorder	Nut-Lock.Ni	£4.45 £3.71
38	HA119-1886 Available to backorder	Shaft-Pivot	£27.20 £22.67
39	HA114-0268 Available to backorder	Cam-Lever	£6.94 £5.78
40	HA3256-22 Available to backorder	Washer-Flat	£0.64 £0.53
41	HA3234-29 Available to backorder	Screw-Hhf	£3.14 £2.62
42	HA3256-1 Available to backorder	Washer-Flat	£0.64 £0.53
