Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Engine

Description

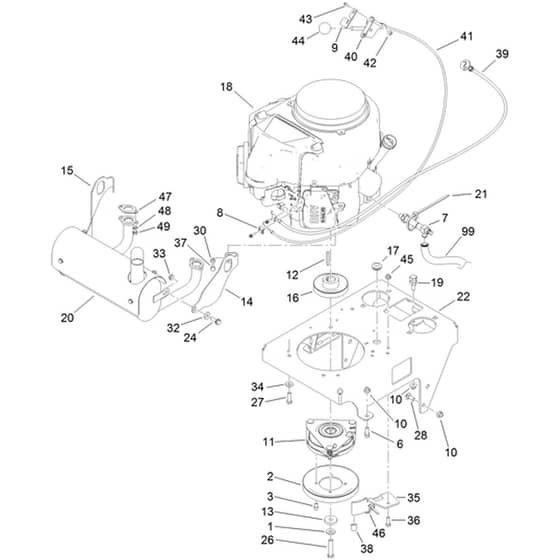

Toro GrandStand 91cm - 74534TE (312000001 - 312999999) Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA1-603610 Available to backorder	Washer-Spring	£5.00 £4.17
2	HA119-0215 Available to backorder	Pulley	£80.14 £66.78
3	HA119-0221 Available to backorder	Screw-Hsh	£4.66 £3.88
6	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
7	HA116-6126 Available to backorder	Valve-Drain. Oil	£64.32 £53.60
8	HA81-1690 Available to backorder	Clamp-Cable	£3.52 £2.93
9	HA119-1883 Available to backorder	Plate-Set. Throttle	£46.64 £38.87
10	HA104-8301 Available to backorder	Nut-Hf. Ni	£1.74 £1.45
11	HA119-0220 Available to backorder	Clutch.Brake Asm	£807.60 £673.00
12	HA608006 Available to backorder	Key-Square	£5.12 £4.27
13	HA1-543610 Available to backorder	Washer-Flat	£7.50 £6.25
14	HA116-2353 Available to backorder	Bracket-Muffler Mount. Lh	£78.94 £65.78
15	HA116-2354 Available to backorder	Bracket-Muffler Mount. Rh	£78.94 £65.78
16	HA112-7067 Available to backorder	Pulley	£259.56 £216.30
17	HA112-7069 Available to backorder	Grommet	£3.94 £3.28
19	HA132-4729 Available to backorder	Anchor-Spring. Short	£7.28 £6.07
20	HA116-2351 Available to backorder	Muffler	£507.60 £423.00
21	HA3290-378 Available to backorder	Tie-Cable ( Ref 46 & 21)	£1.13 £0.94
22	HA119-0155-01 Available to backorder	Base-Engine	£343.20 £286.00
24	HA3234-29 Available to backorder	Screw-Hhf	£2.88 £2.40
26	HA3212-9 Available to backorder	Screw-Hh	£14.34 £11.95
27	HA323-7 Available to backorder	Screw-Hh	£1.22 £1.02
28	HA323-12 Available to backorder	Bolt-Carr	£1.80 £1.50
30	HA3253-4 Available to backorder	Washer-Lock	£0.48 £0.40
32	HA104-7658 Available to backorder	Spacer	£1.42 £1.18
33	HA32128-25 Available to backorder	Nut-Hf	£3.82 £3.18
34	HA98-5975 Available to backorder	Washer-Belleville	£4.84 £4.03
35	HA121-5984-03 Available to backorder	Bracket-Stop. Pto	£28.70 £23.92
36	HA322-5 Available to backorder	Screw-Hh	£0.65 £0.54
37	HA33114-016 Available to backorder	Screw-Hh	£0.50 £0.42
38	HA109-3765 Available to backorder	Bumper	£7.64 £6.37
39	HA106-9962 Available to backorder	Control-Choke. Push.Pull	£93.32 £77.77
40	HA110-5547 Available to backorder	Lever-Control	£53.36 £44.47
41	HA119-1882 Available to backorder	Cable-Control	£39.48 £32.90
42	HA32128-17 Available to backorder	Nut-Lock. Flange	£0.48 £0.40
43	HA110-0863 Available to backorder	Screw-Tph	£12.86 £10.72
44	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
45	HA104-8300 Available to backorder	Nut-Hf. Ni	£0.62 £0.52
47	HA1-653313 Available to backorder	Gasket-Exhaust	£6.90 £5.75
48	HA114-3550 Available to backorder	Washer-Lock	£1.56 £1.30
49	HA114-3549 Available to backorder	Nut	£3.22 £2.68
99	HA103-1964 Available to backorder	Hose-Drain. Oil	£13.16 £10.97
