Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Platform No. 117-7675

Name: Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Platform No. 117-7675
SKU: grandstand_91cm_74534te_31131999999_platform_no_117_7675-group
Price: 0.4 GBP
Availability: InStock

Part No. grandstand_91cm_74534te_31131999999_platform_no_117_7675-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Platform No. 117-7675

Description

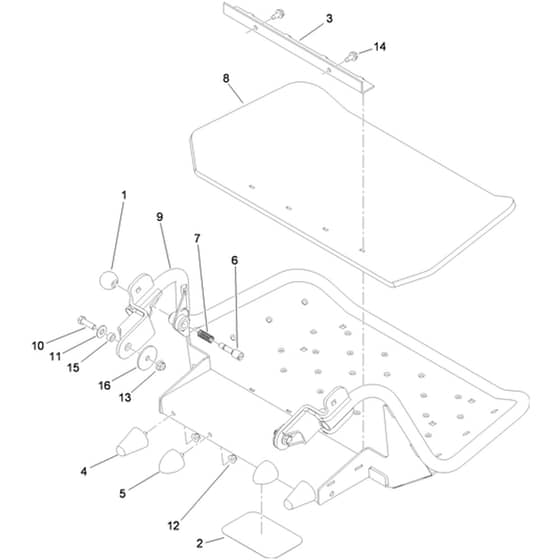

Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Platform No. 117-7675 Parts Diagram

	Part No.	Details
1	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
2	HA68-3640 Available to backorder	Decal [Logo. Toro. 5.8X3.84]	£23.75 £19.79
3	HA114-1920-03 Available to backorder	Shield Clamp	£49.51 £41.26
4	HA114-1925 Available to backorder	Rubber Bumper	£30.94 £25.78
5	HA114-1926 Available to backorder	Rubber Bumper	£33.41 £27.84
6	HA119-8650 Available to backorder	Latch Pin	£23.51 £19.59
7	HA114-5348 Available to backorder	Spring	£4.03 £3.36
8	HA126-7157 Available to backorder	Foot Mat	£126.84 £105.70
9	HA132-9403-01 Available to backorder	Platform	£713.60 £594.67
10	HA323-7 Available to backorder	Hex Head (Hh) Screw	£1.12 £0.93
11	HA3256-4 In stock	Flat Washer	£0.48 £0.40
12	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
13	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
14	HA32144-11 Available to backorder	Hex Washer Head (Hwh) Screw	£8.65 £7.21
15	HA111044 Available to backorder	Spacer	£0.62 £0.52
16	HA83-1040 Available to backorder	Flat Washer	£3.95 £3.29
