Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Electrical

Description

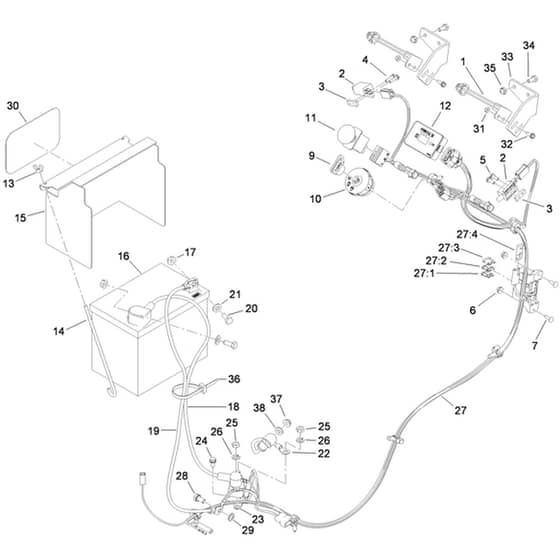

Toro GrandStand 91cm - 74534TE (310000001 - 310999999) Electrical Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA105-0023 Available to backorder	Proximity Switch	£161.38 £134.48
2	HA1-513152 Available to backorder	Switch-Closed. Normally	£15.54 £12.95
3	HA1-633181 Available to backorder	Plate-Tapped	£7.28 £6.07
4	HA32105-13 Available to backorder	Hex Washer Head (Hwh) Screw	£1.90 £1.58
5	HA32105-2 Available to backorder	Shwh Screw	£4.18 £3.48
6	HA32128-17 Available to backorder	Flange Lock Nut	£0.48 £0.40
7	HA1-807533 Available to backorder	Carriage Bolt	£1.66 £1.38
9	HA63-8360 Available to backorder	Ignition Key	£6.34 £5.28
10	HA110-6764 Available to backorder	Switch-Ignition	£32.30 £26.92
11	HA114-0279 Available to backorder	Pto Switch - On.On	£65.80 £54.83
12	HA117-3886 Available to backorder	Hour Meter Module	£270.24 £225.20
13	HA1-543792 Available to backorder	Wingnut	£6.80 £5.67
14	HA1-633651 Available to backorder	Bolt-Holddown	£8.27 £6.89
15	HA117-0543-01 Available to backorder	Battery Cover	£136.74 £113.95
17	HA109-5715 Available to backorder	Nut-Hf	£0.72 £0.60
18	HA114-9404 Available to backorder	Cable-Battery. Positive	£65.24 £54.37
19	HA103-0705 Available to backorder	Cable-Ground. Negative	£21.52 £17.93
20	HA322-3 Available to backorder	Hex Head (Hh) Screw	£1.13 £0.94
21	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
22	HA106-8268 Available to backorder	Red Battery Cable	£41.86 £34.88
23	HA117-1197 Available to backorder	Solenoid	£51.44 £42.87
24	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
25	HA3220-2 Available to backorder	Jam Nut	£0.96 £0.80
26	HA3253-4 Available to backorder	Lock Washer	£0.48 £0.40
27	HA119-0181 Available to backorder	Wire Harness	£333.24 £277.70
27	HA109103 Available to backorder	[27.1] Blade Fuse - 30 Amp	£7.28 £6.07
27	HA109102 Available to backorder	[27.2] Blade Fuse - 25 Amp	£7.70 £6.42
27	HA218-578 Available to backorder	[27.3] 10 Amp Blade Fuse	£3.08 £2.57
27	HA116-0053 Available to backorder	[27.4] Plug Cap	£45.44 £37.87
28	HA33114-016 Available to backorder	Hex Head (Hh) Screw	£0.50 £0.42
29	HA3255-8 Available to backorder	Lock Washer	£0.58 £0.48
30	HA68-3640 Available to backorder	Decal [Logo. Toro. 5.8X3.84]	£22.96 £19.13
31	HA3296-2 Available to backorder	Lock Nut	£2.26 £1.88
32	HA32105-23 Available to backorder	Screw	£1.54 £1.28
33	HA119-8503-01 Available to backorder	Switch Mount Bracket - Red	£20.32 £16.93
34	HA321-3 Available to backorder	Hex Head (Hh) Screw	£0.53 £0.44
35	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.30 £1.08
36	HA3290-378 Available to backorder	Cable Tie	£1.13 £0.94
37	HA32128-33 Available to backorder	Hex Flange (Hf) Nut	£0.48 £0.40
38	HA3256-22 Available to backorder	Flat Washer	£0.72 £0.60
