Toro GrandStand 122cm - 72542TE (417400000 - 999999999) Ground Drive

Description

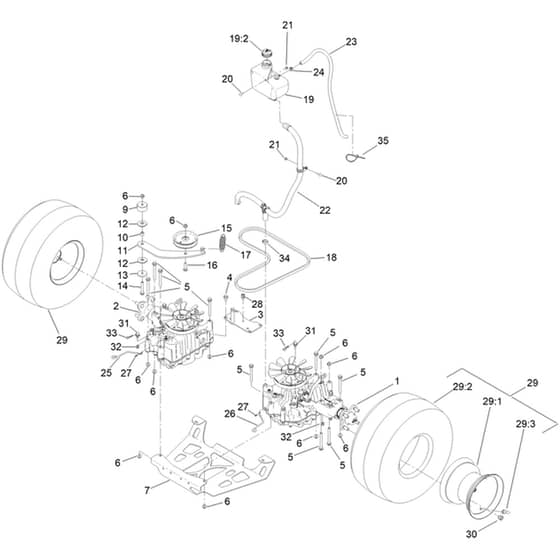

Toro GrandStand 122cm - 72542TE (417400000 - 999999999) Ground Drive Parts Diagram

	Part No.	Details
1	HA138-5838 Available to backorder	Left Hand Transmission Assembly	£2,750.18 £2,291.82
2	HA138-5839 Available to backorder	Right Hand (Rh) Transmission Assembly	£2,750.18 £2,291.82
3	HA131-1131-05 Available to backorder	Transaxle Support Asm [Weld] [Blk-Txt]	£54.91 £45.76
4	HA93-2569 Available to backorder	Hex Head Flange (Hhf) Screw	£1.63 £1.36
5	HA116-4701 Available to backorder	Hex Head Flange (Hhf) Screw	£3.20 £2.67
6	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
9	HA117-5351 Available to backorder	Spacer	£25.99 £21.66
10	HA1-413088 Available to backorder	Lift Lever Bushing	£12.35 £10.29
11	HA131-1175 Available to backorder	Idler Arm	£68.16 £56.80
12	HA114-0463 In stock	Composite Friction Washer	£8.44 £7.03
13	HA110-9981 Available to backorder	Plain Washer	£23.29 £19.41
14	HA3234-39 Available to backorder	Screw-Hhf [.375-16 X 2.5]	£1.86 £1.55
15	HA93-1622 Available to backorder	Idler Pulley	£58.16 £48.47
16	HA323-14 Available to backorder	Carriage Screw	£2.29 £1.91
17	HA138-1104 Available to backorder	Extension Spring	£9.89 £8.24
18	HA131-1124 Available to backorder	Grandstand Ground Drive Belt	£38.36 £31.97
19	HA132-1135 Available to backorder	1.5 Quart Hyd Tank	£177.00 £147.50
19	HA133-8677 Available to backorder	[19.2] Vented Cap	£19.78 £16.48
20	HA3229-1 Available to backorder	Carriage Screw	£4.20 £3.50
21	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
23	HA109-0309 Available to backorder	Fuel Hose	£23.51 £19.59
24	HA92-2379 Available to backorder	Hose Clamp	£0.58 £0.48
25	HA131-7469 Available to backorder	Right Hand Bypass Rod	£24.95 £20.79
26	HA131-7470 Available to backorder	Left Hand (Lh) Bypass Rod	£24.95 £20.79
27	HA108-2992 Available to backorder	Hair Pin	£1.22 £1.02
28	HA32180-030 Available to backorder	Tie Clip	£7.18 £5.98
29	HA140-1888 Available to backorder	Ground Drive Rear Wheel And Tire Assembly	£313.56 £261.30
29	HA140-1889 Available to backorder	[29.1] 8 Inch Black Rim	£83.64 £69.70
29	HA120-6466 Available to backorder	[29.2] Standard Replacement Riding Mower Tire	£199.44 £166.20
29	HA5108 Available to backorder	[29.3] Valve Stem	£10.80 £9.00
30	HA139-2564 Available to backorder	Lug Nut	£1.22 £1.02
31	HA132-7584 Available to backorder	Hex Spacer	£35.88 £29.90
32	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
33	HA3290-250 Available to backorder	Cotter Pin	£6.94 £5.78
34	HA2412-129 Available to backorder	Hose Clamp	£3.60 £3.00
35	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
