Toro GrandStand 122cm - 72542TE (417000000 - 417399999) Platform

Description

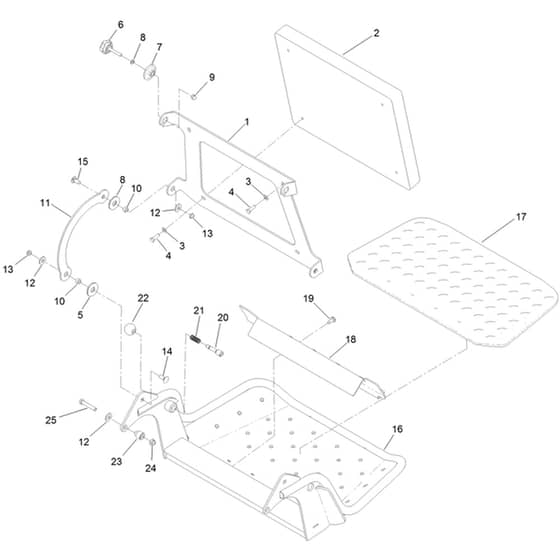

Toro GrandStand 122cm - 72542TE (417000000 - 417399999) Platform Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA120-8499-03 Available to backorder	Pad Hinge - Black	£198.96 £165.80
2	HA117-9739 Available to backorder	Cushion Pad	£340.44 £283.70
3	HA3256-23 Available to backorder	Plain Washer	£0.53 £0.44
4	HA121-7999 Available to backorder	Hex Head (Hh) Screw	£1.27 £1.06
5	HA114-0463 Available to backorder	Composite Friction Washer	£7.70 £6.42
6	HA133-1426 Available to backorder	Knob	£5.48 £4.57
7	HA116-2886 Available to backorder	Slide-Bushing	£7.04 £5.87
8	HA3253-4 Available to backorder	Lock Washer	£0.48 £0.40
9	HA137-4808 Available to backorder	Acorn Nut	£1.90 £1.58
10	HA111044 Available to backorder	Spacer	£0.72 £0.60
11	HA114-1915-01 Available to backorder	Pad Link - Red	£45.44 £37.87
12	HA3256-4 Available to backorder	Flat Washer	£0.53 £0.44
13	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.46 £1.22
14	HA323-12 Available to backorder	Carriage Bolt	£1.80 £1.50
15	HA3231-27 Available to backorder	Carriage Screw	£1.03 £0.86
16	HA161-6796-01 Available to backorder	Platform Asm [Welded] [Red]	£333.60 £278.00
17	HA126-7157 Available to backorder	Mat-Platform	£126.82 £105.68
18	HA3345-771 Available to backorder	Shield Clamp Kit	£114.22 £95.18
19	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
20	HA119-8650 Available to backorder	Latch Pin	£22.72 £18.93
21	HA114-5348 Available to backorder	Spring	£3.78 £3.15
22	HA1-603175 Available to backorder	Knob-Ball	£13.16 £10.97
23	HA132-7583 Available to backorder	Flange Bushing	£5.74 £4.78
24	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
25	HA3234-5 Available to backorder	Screw-Hh [3.8 16 X2 1.4]	£0.79 £0.66
