Toro GrandStand 122cm - 72542TE (413000000 - 414199999) Deck Lift

Description

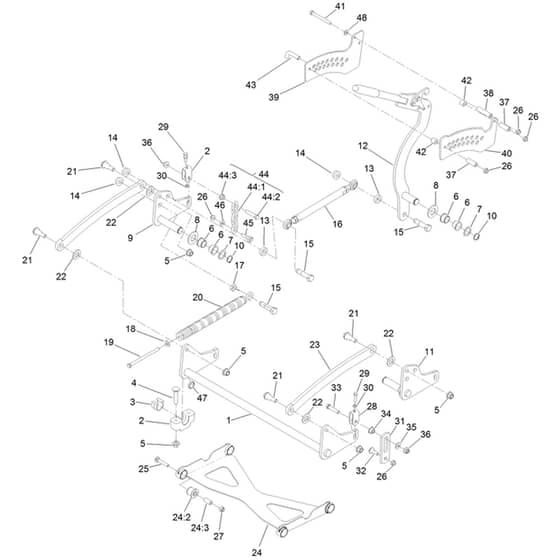

Toro GrandStand 122cm - 72542TE (413000000 - 414199999) Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA120-8405-01 Available to backorder	Front Shaft Cross Assembly With Red	£237.60 £198.00
2	HA109-9409 Available to backorder	Support-Bearing. Cross Shaft (Front)	£16.74 £13.95
3	HA109-9410 Available to backorder	Bearing-Cross Shaft. Front	£3.94 £3.28
4	HA116-1700 Available to backorder	Carriage Bolt	£4.18 £3.48
5	HA99-5107 Available to backorder	Lock Nut	£2.78 £2.32
6	HA127-0369 Available to backorder	Bushing	£10.52 £8.77
7	HA10-8110 Available to backorder	Thrust Washer	£1.70 £1.42
8	HA3256-62 Available to backorder	Washer-Flat[1.063X2.000.Stl.Yz..160..10]	£1.42 £1.18
9	HA120-8411-01 Available to backorder	Right Hand (Rh) Lift Arm Assembly	£61.00 £50.83
10	HA32151-29 Available to backorder	Retaining Ring	£4.30 £3.58
11	HA120-8410-01 Available to backorder	Left Hand Arm Lift	£61.00 £50.83
12	HA130-1755 Available to backorder	Height Of Cut (Hoc) Lever Assembly	£303.60 £253.00
13	HA119-6223 Available to backorder	Washer [.641 X 1.25 X .375]	£7.56 £6.30
14	HA138-4932 Available to backorder	Hex Flange (Hf) Nut	£3.22 £2.68
15	HA138-4931 Available to backorder	Lock Screw	£4.54 £3.78
16	HA130-6615 Available to backorder	Height Of Cut (Hoc) Link Assembly	£197.88 £164.90
17	HA3218-6 Available to backorder	Jam Nut	£1.15 £0.96
18	HA98-5975 Available to backorder	Belleville Washer	£4.84 £4.03
19	HA323-58 Available to backorder	Hex Head (Hh) Tap Bolt	£5.98 £4.98
20	HA116-0886 Available to backorder	Extension Spring	£156.72 £130.60
21	HA116-0780 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£9.56 £7.97
22	HA3256-28 Available to backorder	Flat Washer	£0.91 £0.76
23	HA127-1948-03 Available to backorder	Lift Link	£91.70 £76.42
24	HA137-4129 Available to backorder	Deck Strut Assembly	£196.28 £163.57
24	HA137-4108 Available to backorder	[24.2] Rubber Bushing	£5.84 £4.87
24	HA108-6544 Available to backorder	[24.3] Spacer	£16.80 £14.00
25	HA323-17 Available to backorder	Carriage Screw	£3.20 £2.67
26	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
27	HA32128-19 Available to backorder	Nut-Hf Lock. Large Flg	£1.56 £1.30
28	HA109-9066 Available to backorder	Yoke-Adjust. Deck	£8.72 £7.27
29	HA322-47 Available to backorder	Hex Head (Hh) Screw	£2.50 £2.08
30	HA3218-2 Available to backorder	Jam Nut	£0.48 £0.40
31	HA130-6589 Available to backorder	Lift Link	£31.10 £25.92
32	HA109-9840 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£5.02 £4.18
34	HA116-2428 Available to backorder	Flanged Bushing	£14.34 £11.95
35	HA3256-4 Available to backorder	Flat Washer	£0.53 £0.44
36	HA114-8417 Available to backorder	Nut-Hf. Ni	£1.63 £1.36
37	HA95-6448 Available to backorder	Spacer	£6.44 £5.37
38	HA138-1111 Available to backorder	Spacer	£17.94 £14.95
39	HA132-7581 Available to backorder	Height Of Cut (Hoc) Plate And Decal Assembly	£95.70 £79.75
40	HA138-4887 Available to backorder	Height Of Cut (Hoc) Inner Plate	£120.82 £100.68
41	HA323-42 Available to backorder	Hex Head (Hh) Screw	£9.08 £7.57
42	HA121-1760 Available to backorder	Spacer	£2.38 £1.98
43	HA116-5584 Available to backorder	Pin-Hoc	£5.62 £4.68
44	HA116-0756 Available to backorder	Deck Lift Chain Asm	£16.74 £13.95
44	HA1-633447 Available to backorder	[44.1] Chain-Lift. Deck	£11.94 £9.95
44	HA109-9065 Available to backorder	[44.2] Hex Head (Hh) Screw (Ref 44.2 & 33)	£3.70 £3.08
44	HA32128-37 Available to backorder	[44.3] Hex Flange (Hf) Nut	£5.68 £4.73
45	HA130-0742 Available to backorder	Shoulder Bolt	£2.14 £1.78
46	HA43-0940 Available to backorder	Spacer [3.8 X 7.8 X 10 Ga Stl. Cz]	£1.96 £1.63
47	HA133-1431 Available to backorder	Split Spacer	£6.44 £5.37
48	HA3256-24 Available to backorder	Flat Washer	£0.53 £0.44
