Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Platform

Name: Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Platform
SKU: grandstand_122cm_72504te_47412199999_platform-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_122cm_72504te_47412199999_platform-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Platform

Description

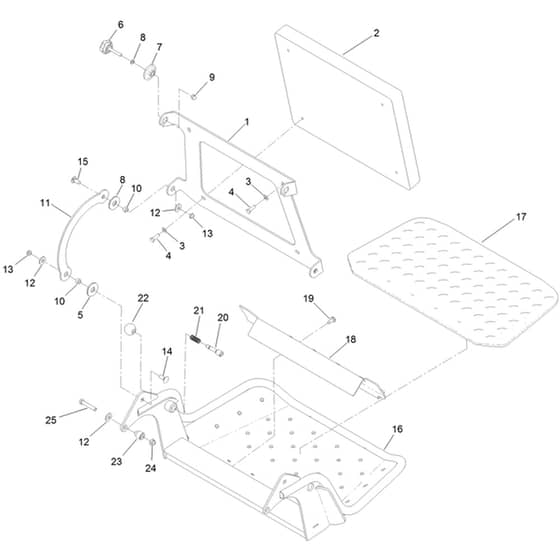

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Platform Parts Diagram

	Part No.	Details
1	HA120-8499-03 Available to backorder	Pad Hinge - Black	£218.40 £182.00
2	HA117-9739 Available to backorder	Cushion Pad	£381.36 £317.80
3	HA3256-23 Available to backorder	Plain Washer	£0.48 £0.40
4	HA121-7999 Available to backorder	Hex Head (Hh) Screw	£1.09 £0.91
5	HA114-0463 In stock	Composite Friction Washer	£8.44 £7.03
6	HA133-1426 Available to backorder	Knob	£5.66 £4.72
7	HA116-2886 Available to backorder	Slide-Bushing	£7.28 £6.07
8	HA3253-4 Available to backorder	Lock Washer	£0.43 £0.36
9	HA137-4808 Available to backorder	Acorn Nut	£1.97 £1.64
10	HA111044 Available to backorder	Spacer	£0.62 £0.52
11	HA114-1915-01 Available to backorder	Pad Link - Red	£47.00 £39.17
12	HA3256-4 In stock	Flat Washer	£0.48 £0.40
13	HA121-4600 Available to backorder	Nut Lock Ni Assembly With Yz	£1.34 £1.12
14	HA323-12 Available to backorder	Carriage Bolt	£1.94 £1.62
15	HA3231-27 Available to backorder	Carriage Screw	£0.94 £0.78
16	HA120-8475-01 Available to backorder	Platform	£532.14 £443.45
17	HA126-7157 Available to backorder	Mat-Platform	£126.84 £105.70
18	HA3345-771 Available to backorder	Shield Clamp Kit	£117.48 £97.90
19	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
20	HA119-8650 Available to backorder	Latch Pin	£23.51 £19.59
21	HA114-5348 Available to backorder	Spring	£4.03 £3.36
22	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34

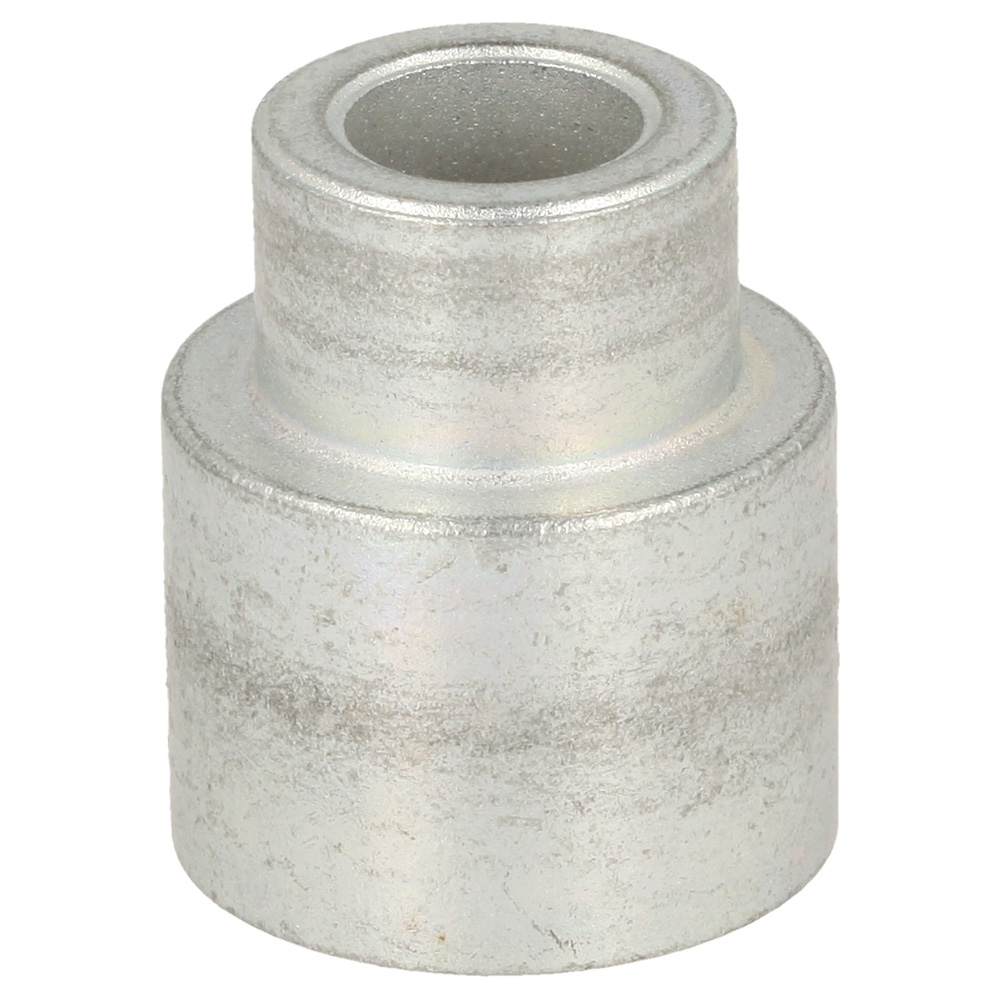

23	HA132-7583 Available to backorder	Flange Bushing	£5.94 £4.95
24	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50

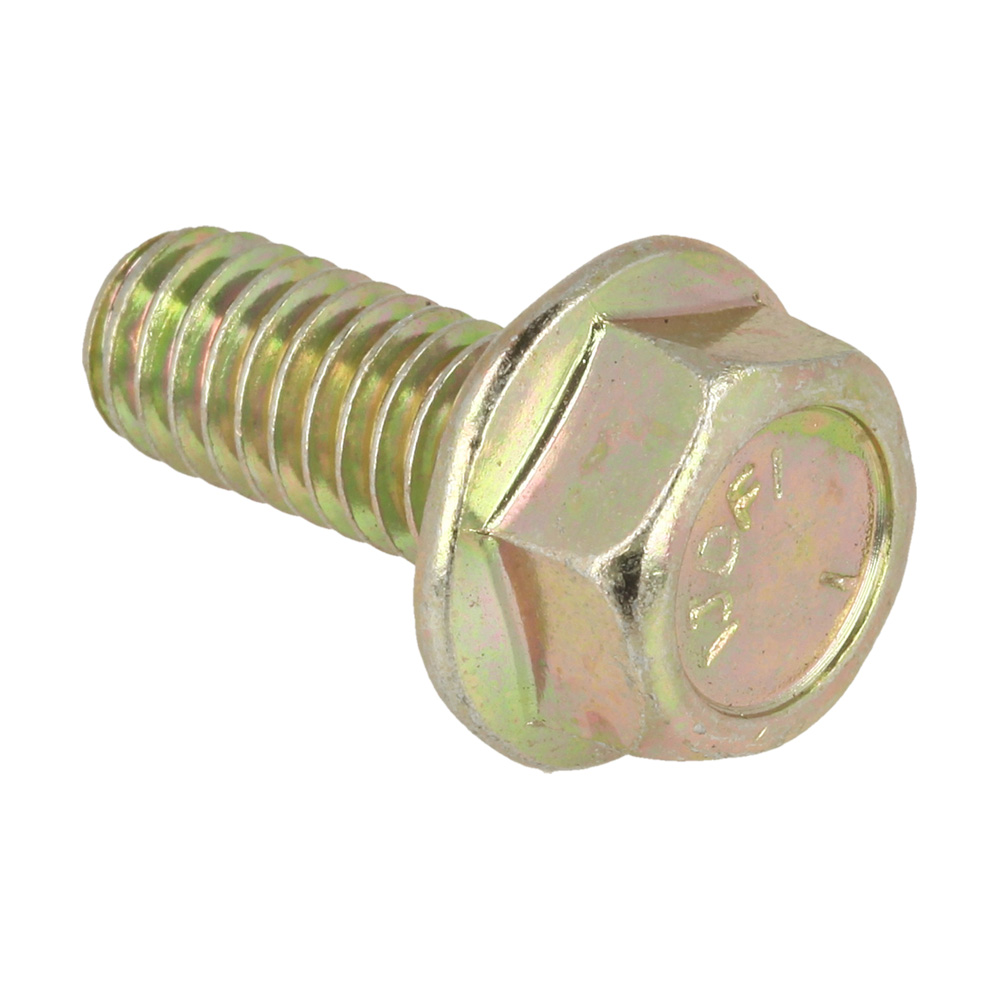

25	HA3234-5 Available to backorder	Screw-Hh [3.8 16 X2 1.4]	£0.71 £0.59
