Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Frame

Name: Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Frame
SKU: grandstand_122cm_72504te_47412199999_frame-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_122cm_72504te_47412199999_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Frame

Description

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Frame Parts Diagram

	Part No.	Details
2	HA131-7423-01 Available to backorder	Frame	£1,621.85 £1,351.54
8	HA140-4283 Available to backorder	Tower Decal Asm	£867.68 £723.07
8	HA147-7921 Available to backorder	[8.2] Decal - Oil Level	£6.19 £5.16
8	HA116-8775 Available to backorder	[8.4] Decal-Fill. Fuel	£13.46 £11.22
8	HA139-2878 Available to backorder	[8.5] Warning Decal	£10.80 £9.00
8	HA131-3526 Available to backorder	[8.6] Decal - Controls	£13.61 £11.34
8	HA131-3528 Available to backorder	[8.7] Decal - Fuse	£2.57 £2.14
9	HA3234-42 Available to backorder	Hex Head Flange (Hhf) Screw	£1.88 £1.57
10	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
11	HA131-7455 Available to backorder	Striker Plate	£17.32 £14.43
12	HA3229-11 Available to backorder	Carriage Screw	£1.22 £1.02
13	HA104-7201 Available to backorder	Hex Flange (Hf) Nut	£1.18 £0.98
14	HA105-4886 Available to backorder	Nut-Tinnerman	£4.08 £3.40
15	HA3230-5 Available to backorder	Carriage Bolt	£0.94 £0.78
16	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
17	HA107-3844 Available to backorder	Washer	£2.32 £1.93
18	HA140-5485 Available to backorder	11X4-5 Wheel Tire Bearing Assembly	£281.64 £234.70
18	HA103-2768 Available to backorder	[18.2] Guard-Seal	£4.20 £3.50
18	HA3296-45 Available to backorder	[18.3] Hex Nut	£4.69 £3.91
18	HA325-20 In stock	[18.4] Hex Head (Hh) Screw	£8.06 £6.72
19	HA132-5161-01 Available to backorder	Fuel Tank Mount Tube	£96.48 £80.40
20	HA132-1145-03 Available to backorder	Cross Bracket - Black	£58.16 £48.47
21	HA117-3591 Available to backorder	Decal - Commercial	£18.56 £15.47
23	HA114-1926 Available to backorder	Rubber Bumper	£33.41 £27.84

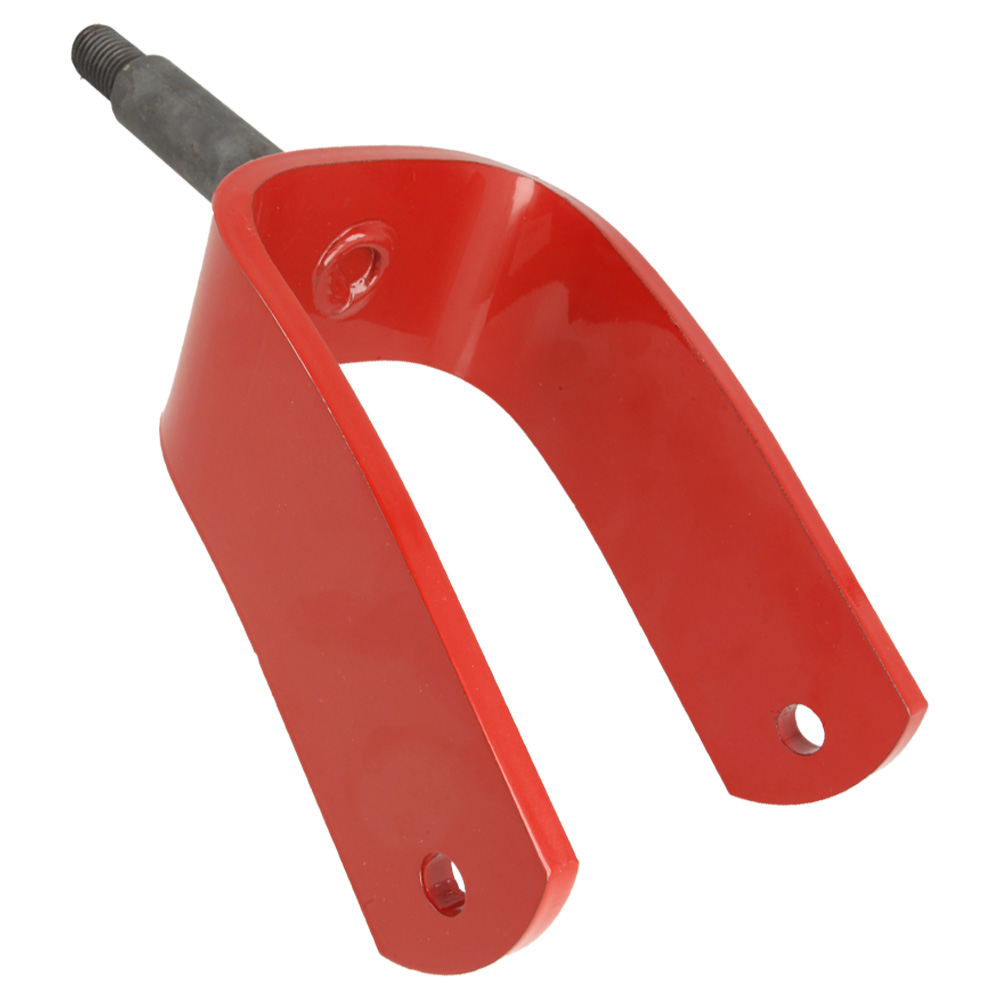

24	HA147-6343-01 Available to backorder	Grandstand Caster Fork	£256.32 £213.60
25	HA1-811010 Available to backorder	Plug	£6.04 £5.03
26	HA1-543509 Available to backorder	Bearing-Roller. Tapered	£17.32 £14.43
27	HA116-5647 Available to backorder	Seal-Grease	£6.56 £5.47
28	HA1-633508 In stock	Belleville Washer	£5.66 £4.72
29	HA103-4882 Available to backorder	Grease Cap	£9.02 £7.52
30	HA132-5150-03 Available to backorder	Engine Guard	£234.00 £195.00
33	HA3230-10 Available to backorder	Carriage Bolt	£0.85 £0.71
34	HA3296-51 Available to backorder	Ni Lock Nut	£5.52 £4.60
35	HA3290-271 Available to backorder	Pop Rivet	£0.43 £0.36
38	HA140-4258 Available to backorder	Control Panel Decal	£54.91 £45.76
48	HA107-3002 Available to backorder	Nylon Washer	£4.66 £3.88
49	HA105-8278 Available to backorder	Decal [Toro Logo]	£16.55 £13.79
63	HA133-4641 Available to backorder	Decal - No Riders Warning	£3.31 £2.76
64	HA119-4061 Available to backorder	Screw-Hhf[3.8-16 X 1.25. Gr 5. Cz]	£1.28 £1.07
65	HA133-4619-01 Available to backorder	Right Hand(Rh) Fan Guard	£69.24 £57.70
66	HA133-4618-01 Available to backorder	Center Fan Guard	£51.58 £42.98
67	HA133-4622-01 Available to backorder	Left Hand (Lh) Fan Guard	£62.76 £52.30
68	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
69	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
70	HA134-3810-03 Available to backorder	Extension Guard	£107.76 £89.80
71	HA133-4649-03 Available to backorder	Belt Guard	£28.28 £23.57
72	HA1-513658 Available to backorder	Bumper (Ref 72 & 31)	£7.54 £6.28
73	HA131-3530-05 Available to backorder	Guard Mounting Bracket - Black	£18.56 £15.47
74	HA106-9758 Available to backorder	Carriage Screw	£3.71 £3.09
86	HA104-9368 Available to backorder	Dome Panel Plug	£0.48 £0.40
