Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Engine

Name: Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Engine
SKU: grandstand_122cm_72504te_47412199999_engine-group
Price: 0.36 GBP
Availability: InStock

Part No. grandstand_122cm_72504te_47412199999_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Engine

Description

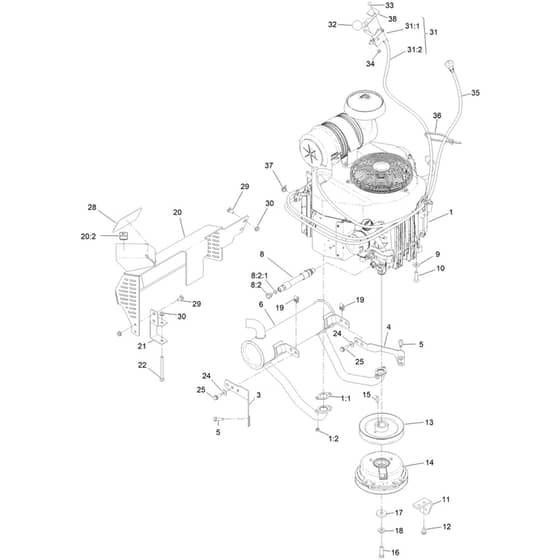

Toro GrandStand 122cm - 72504TE (407000000 - 412199999) Engine Parts Diagram

	Part No.	Details
0	HA237-42 Available to backorder	0.468 Inch X 0.078 Inch O-Ring	£4.76 £3.97
1	HA1-653313 Available to backorder	[1.1] Exhaust Gasket	£7.31 £6.09
1	HA114-3549 Available to backorder	[1.2] Nut	£3.34 £2.78
3	HA132-1173 Available to backorder	Front Muffler Bracket	£47.00 £39.17
4	HA132-1174 Available to backorder	Rear Muffler Bracket	£47.00 £39.17
5	HA33104-025 Available to backorder	Screw-Hhf [M8-1.25 X 25. Cl8.8. Yz]	£11.09 £9.24
6	HA133-4633 Available to backorder	Muffler	£296.52 £247.10
8	HA353-508 Available to backorder	[8.2] Plug-Hh [O-Ring]	£8.65 £7.21
8	HA133-4659 Available to backorder	Hose Assembly	£45.79 £38.16
9	HA98-5975 Available to backorder	Belleville Washer	£5.32 £4.43
10	HA126-0983 Available to backorder	Screw-Bhtf	£4.69 £3.91
11	HA131-3586-05 Available to backorder	Clutch Stop	£23.29 £19.41
12	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
13	HA120-8498 Available to backorder	Pulley	£100.56 £83.80
14	HA139-7910 Available to backorder	200cms Clutch	£663.78 £553.15
15	HA1-807259 Available to backorder	Key	£2.34 £1.95
16	HA3212-6 Available to backorder	Screw-Hh[.438-20X1.500.Gr5.Yz]	£2.54 £2.12
17	HA1-543610 Available to backorder	Washer	£8.14 £6.78
18	HA1-603610 Available to backorder	Spring Washer	£5.46 £4.55
19	HA94-2413 Available to backorder	U Nut	£2.21 £1.84
20	HA131-3550 Available to backorder	Muffler Guard Assembly	£372.24 £310.20
20	HA106-5517 Available to backorder	[20.2] Warning Decal	£4.32 £3.60
21	HA131-3530-05 Available to backorder	Guard Mounting Bracket - Black	£18.56 £15.47
22	HA106-9758 Available to backorder	Carriage Screw	£3.71 £3.09
24	HA3290-456 Available to backorder	Belleville Washer	£2.56 £2.13
25	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£3.14 £2.62
28	HA94-2579 Available to backorder	Decal [Toro. 3-1.4 X 5]	£16.45 £13.71
29	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
30	HA32128-25 Available to backorder	Hex Flange (Hf) Nut	£3.95 £3.29
31	HA147-1664 Available to backorder	Throttle Assembly	£74.16 £61.80
31	HA110-5547 Available to backorder	[31.1] Lever-Control	£56.81 £47.34
31	HA147-1674 Available to backorder	[31.2] Throttle Cable	£45.79 £38.16
32	HA1-603175 Available to backorder	Knob-Ball	£13.61 £11.34
33	HA1-807533 Available to backorder	Carriage Bolt	£1.72 £1.43
34	HA32128-17 Available to backorder	Flange Lock Nut	£0.43 £0.36
35	HA132-5140 Available to backorder	Choke Cable	£49.49 £41.24
36	HA3290-378 Available to backorder	Cable Tie	£0.97 £0.81
37	HA81-1690 Available to backorder	Clamp-Cable	£3.83 £3.19
38	HA119-1883 Available to backorder	Throttle Set Plate	£48.25 £40.21
