Toro GrandStand 122cm - 72504TE (400000000 - 406999999) Deck

Description

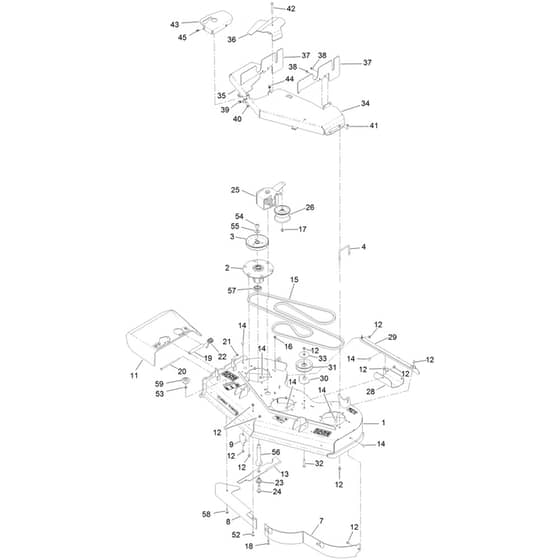

Toro GrandStand 122cm - 72504TE (400000000 - 406999999) Deck Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA139-8093 Available to backorder	48 Deck Asm	£1,756.80 £1,464.00
2	HA137-9780 Available to backorder	Spindle Assembly	£172.28 £143.57
3	HA138-6061 Available to backorder	Drive Blade Sheave	£35.88 £29.90
4	HA109-6982 Available to backorder	Wireform-Cover	£13.16 £10.97
7	HA117-0410-01 Available to backorder	48 Inch Baffle Assembly	£309.00 £257.50
8	HA139-8105-01 Available to backorder	Plate-Baffle. Formed	£111.00 £92.50
9	HA107-8541-01 Available to backorder	Discharge Baffle	£25.12 £20.93
11	HA120-2451 Available to backorder	Deflector Assembly	£254.04 £211.70
12	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
13	HA140-1243 Available to backorder	16.5 Inch Hi-Flow Blade	£19.22 £16.02
14	HA323-12 Available to backorder	Carriage Bolt	£1.80 £1.50
15	HA131-1121 Available to backorder	V-Belt	£194.38 £161.98
16	HA32144-70 Available to backorder	Hex Washer Head Thread Forming (Hwhtf) Screw	£1.90 £1.58
17	HA109-6658 Available to backorder	Nut-Flange. Ni	£1.27 £1.06
18	HA95-1726 In stock	Screw-Hwh Thd Form	£2.14 £1.78
19	HA105-4622 Available to backorder	Spacer	£11.94 £9.95
20	HA322-50 Available to backorder	Hex Head (Hh) Screw	£5.62 £4.68
21	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
22	HA108-4052 Available to backorder	Torsion Spring	£28.70 £23.92
23	HA137-9787 Available to backorder	Hex Bushing	£11.40 £9.50
24	HA109-9220 Available to backorder	Blade Screw	£9.08 £7.57
26	HA127-1971 Available to backorder	Idler Pulley	£145.96 £121.63
28	HA114-1908-01 Available to backorder	Skid	£95.70 £79.75
29	HA130-6649-01 Available to backorder	Bracket Assembly - Red	£96.52 £80.43
30	HA109-2872 Available to backorder	Pulley Spacer	£25.12 £20.93
31	HA132-4718 Available to backorder	Flat Idler Pulley	£37.08 £30.90
32	HA3231-44 Available to backorder	Carriage Screw	£2.86 £2.38
33	HA132-5154 Available to backorder	Dust Shield	£19.30 £16.08
34	HA136-7422-01 Available to backorder	Left Hand Belt Cover	£183.40 £152.83
35	HA136-7423-01 Available to backorder	Right Hand Belt Cover	£131.68 £109.73
36	HA136-7421-01 Available to backorder	Cover-Idler. Ce	£120.66 £100.55
37	HA133-4642-01 Available to backorder	Left Hand (Lh) Side Cover	£26.64 £22.20
38	HA3230-18 Available to backorder	Carriage Screw	£4.90 £4.08
39	HA94-2413 Available to backorder	U Nut	£2.14 £1.78
40	HA3234-29 Available to backorder	Hex Head Flange (Hhf) Screw	£2.88 £2.40
41	HA323-5 Available to backorder	Hex Head (Hh) Screw	£0.77 £0.64
42	HA323-20 Available to backorder	Hex Head (Hh) Screw	£2.00 £1.67
43	HA136-7424-01 Available to backorder	Cover-Idler. Ce	£112.62 £93.85
44	HA107069 Available to backorder	Clip	£2.14 £1.78
45	HA99-6810 Available to backorder	Hex Head Flange (Hhf) Screw	£3.70 £3.08
52	HA94-7582 Available to backorder	Shoulder Bolt	£3.70 £3.08
53	HA100-4852 Available to backorder	Washer-Hardened	£7.26 £6.05
54	HA116-7306 Available to backorder	Hex Nut	£3.10 £2.58
55	HA103-2802 Available to backorder	Washer	£6.42 £5.35
56	HA138-6045 Available to backorder	Spindle Shaft	£50.24 £41.87
57	HA137-9784 Available to backorder	Bottom Guard	£7.04 £5.87
58	HA119-4162 Available to backorder	SCREW-CARR[3/8-16 X 1.25,GR5,CZ]	£2.06 £1.72
59	HA109-1092 Available to backorder	Knob	£8.96 £7.47
